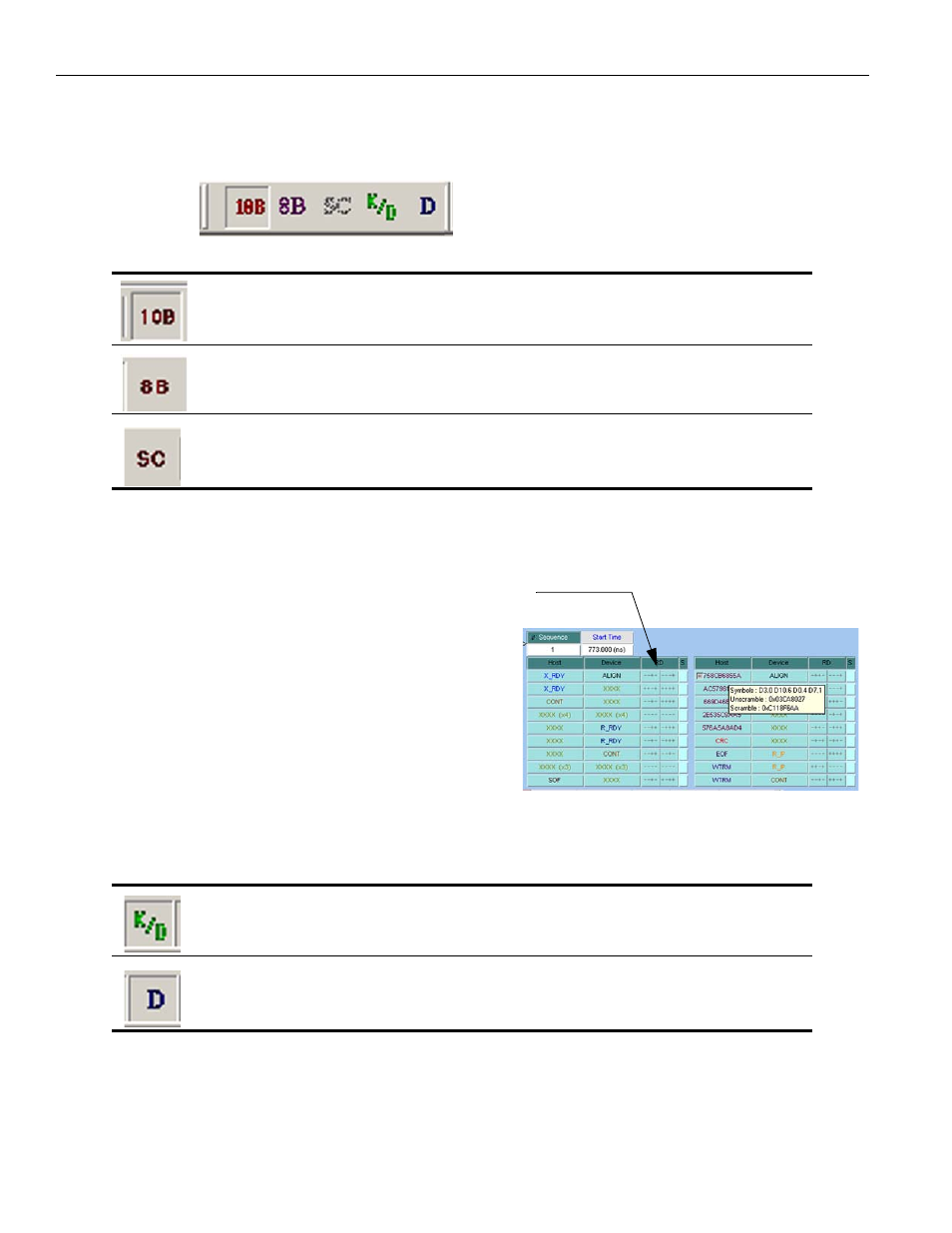

Decode Toolbar
The Decode Toolbar controls encoding and scrambling features.
To view corresponding Unscrambled and Scrambled payload data values instantaneously,
position the mouse pointer over a data field
.
Figure 3.42: Payload Data Display
The 10B button displays the payload data as 10‐bit encoded data.
The 8B button displays the payload as 8‐bit scrambled or unscrambled data,
depending on the Scrambled setting.
The SC button selects scramble/unscramble for the 8‐bit payload data.
The Symbol Notation button decodes the 8‐bit or 10‐bit encoded data in
Column View.
The Show Data button displays the payload data values in Column View.
Running Disparity indication
