Timeout (SATA only)
Choosing timeout as a trigger condition allows you to define a timer with a timeout value
that is reset to 0 and starts by occurrence of any events that you add to the Start Events
list. You can then add one or more events to the End Events list and then choose a trigger
to occur if an End event occurs before the timer expires, or if the timer expires before the
occurrence of an end event.
You add and define the Start and End events identically to the way that you define and
add patterns to capture.

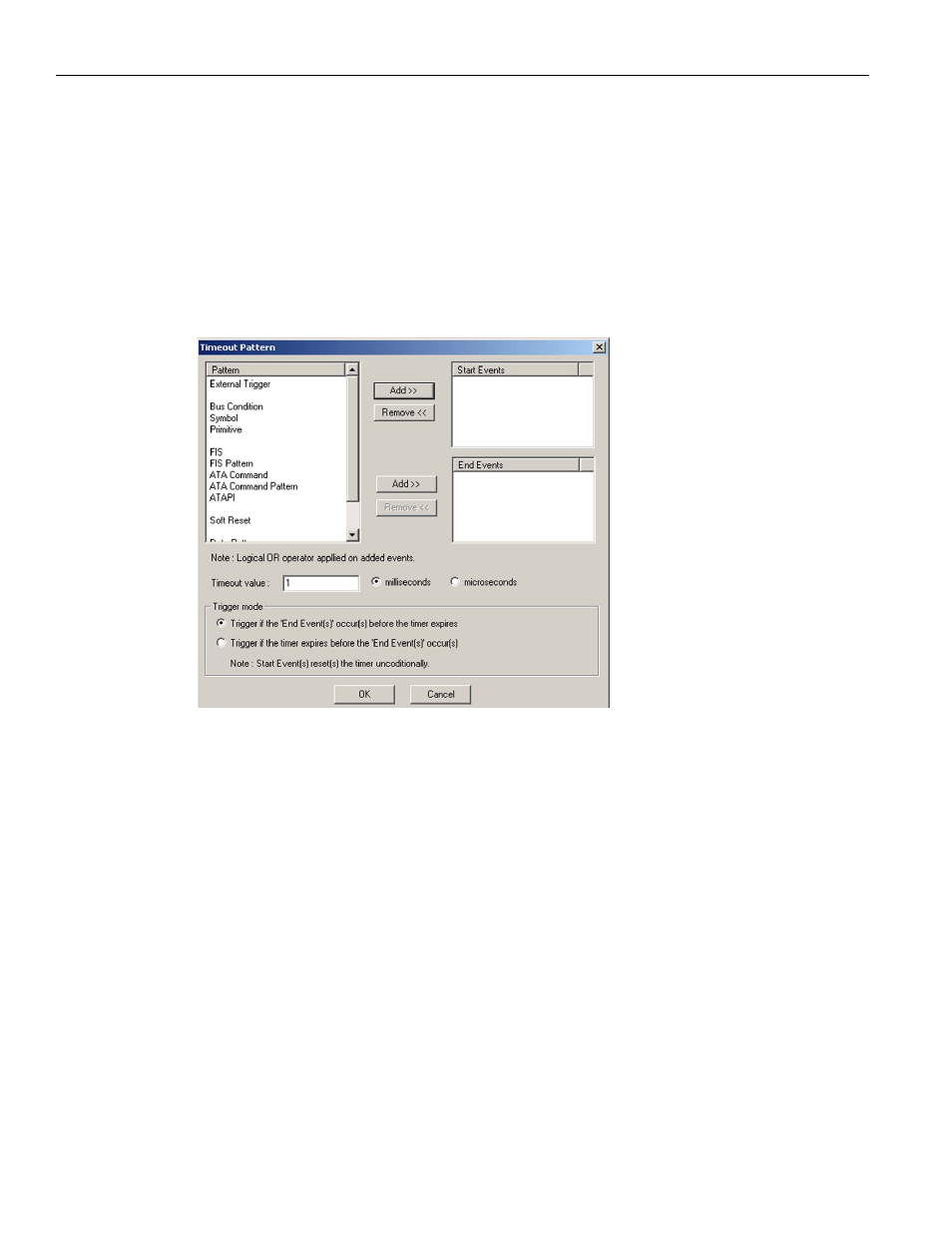

Figure 2.56: Timeout Pattern Dialog
