LeCroy Corporation Switching Views
196 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
.

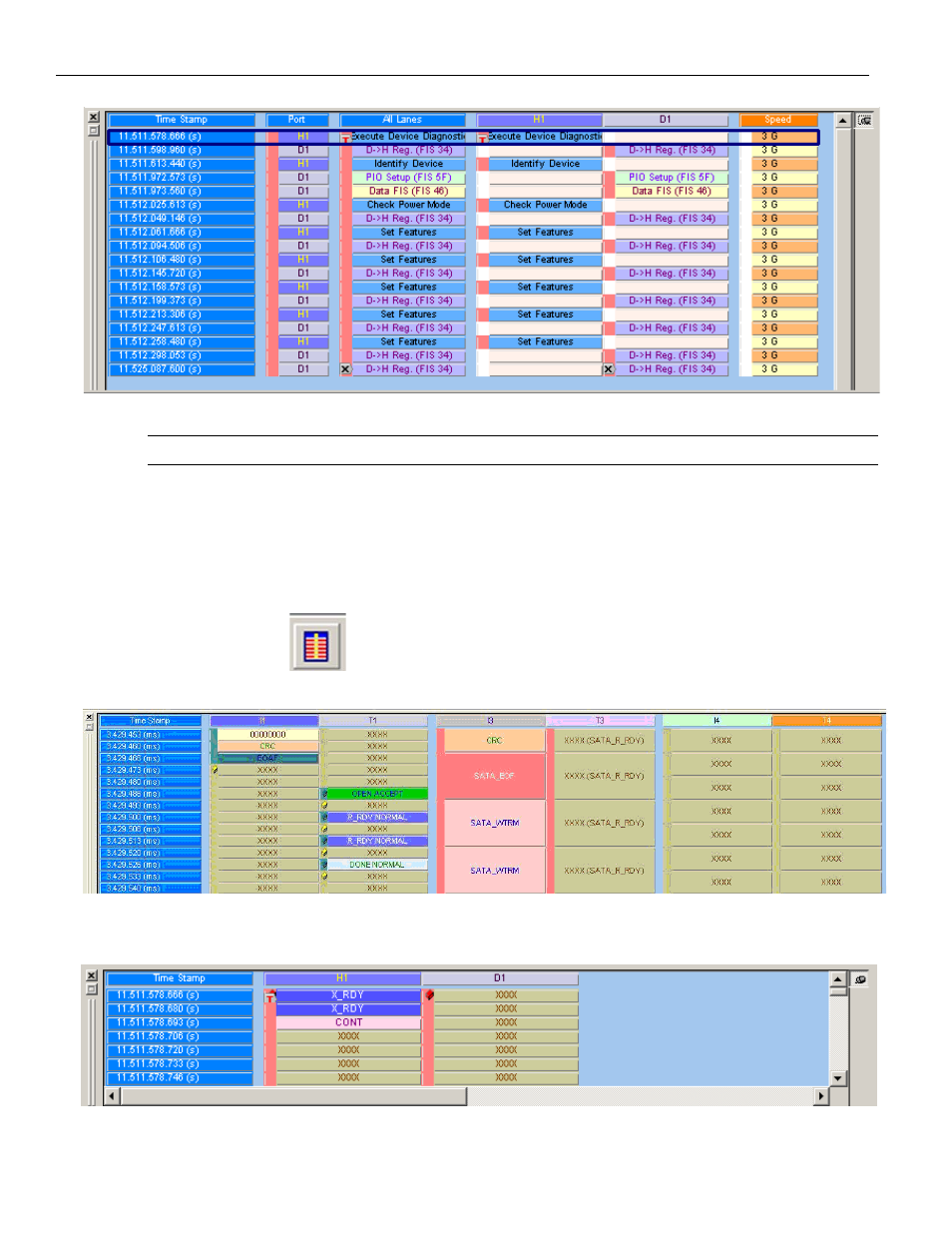

Figure 3.6: SATA: Text View
Note: The LBA and Tag Number value are shown in the All Lanes column.
Column View
Column View displays the captured data grouped in columns by port. Each row shows
captured DWORDs on different ports related to the timestamp. It also shows different
speed (1.5G, 3G, 6G) DWORDs. Different DWORD cell height shows the duration of the
DWORD. To display Column View of the current capture, click View > Column View or
click the button on the View Type toolbar.
Figure 3.7: SAS: Column View
Figure 3.8: SATA: Column View
