LeCroy Corporation Creating a Traffic Generation File
378 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Editing an Example Generation File
The easiest way to generate traffic is to start with one of the example generation files and
edit the settings to see how the script file behaves. As you make and save changes, the
trace view of the generation file is automatically updated.

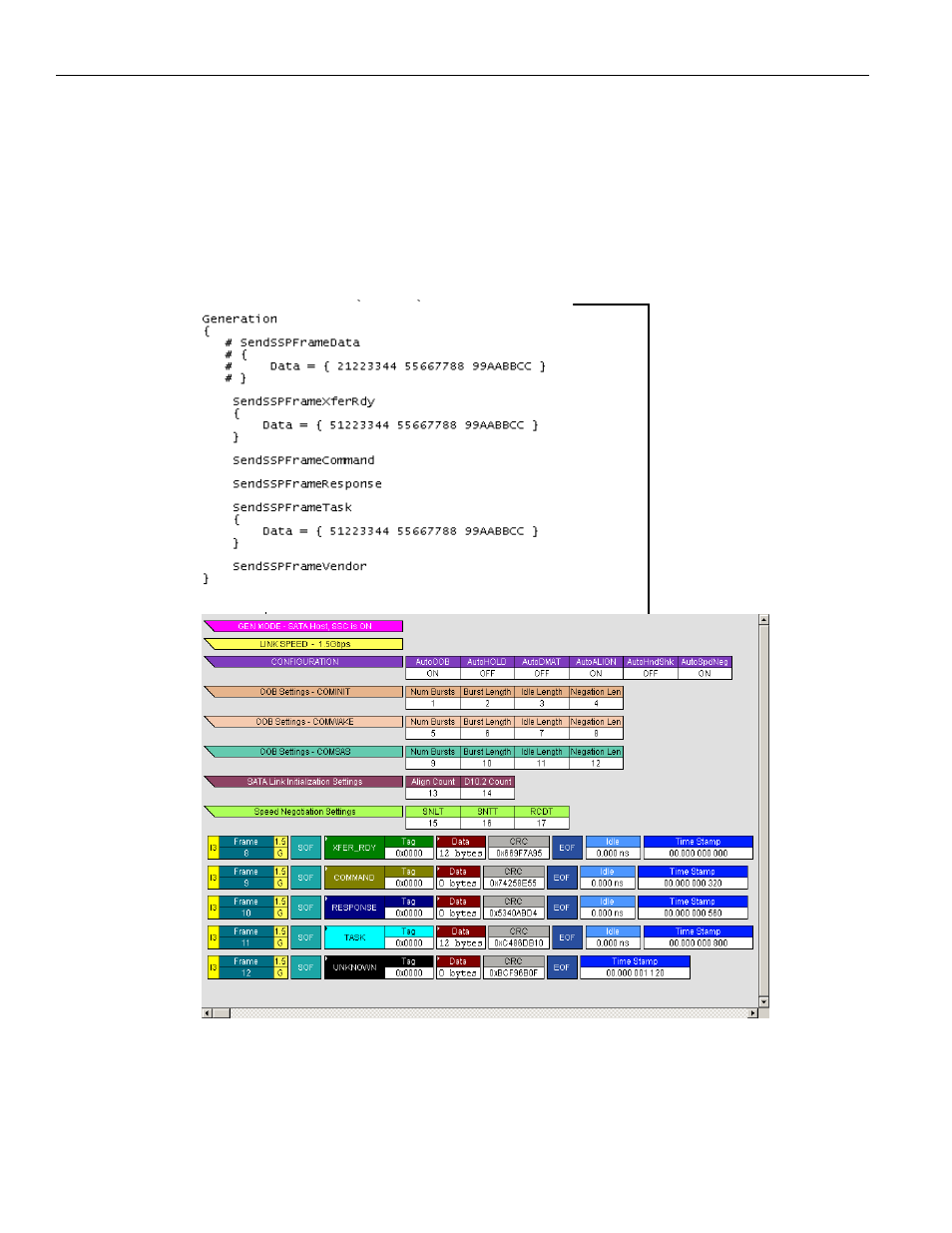

The following screenshots show an example file as it appears in the script editor and
trace window.
In the screenshot, global settings make up the eight bars at the top of the window. Below
that are five frames. If you look at the script itself, there are six frame commands, five
active and one commented out.
The following sections describe how to open and edit traffic generation files.
