Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

211

Port Status

LeCroy Corporation

Tile All Views Horizontally

You can revert any unintended window docking or sizing, or maximize screen utilization,
by using the Tile Views command.

To tile all open views horizontally, select View > Tile Views or click

the

Tile Horizontally All Views button on the main toolbar (to the right of the

view buttons).

This function only tiles views inside a trace window.

Note:

There is no command to tile views vertically.

Port Status

You can get an overview of the active ports by clicking the Port Status button at the
bottom right of the application window.

The Port Status displays the Port, Speed, and Analyzer.

In addition to displaying OOB, Link, Frame, and Error, a display showing the % buffer full
opens when a trigger occurs.

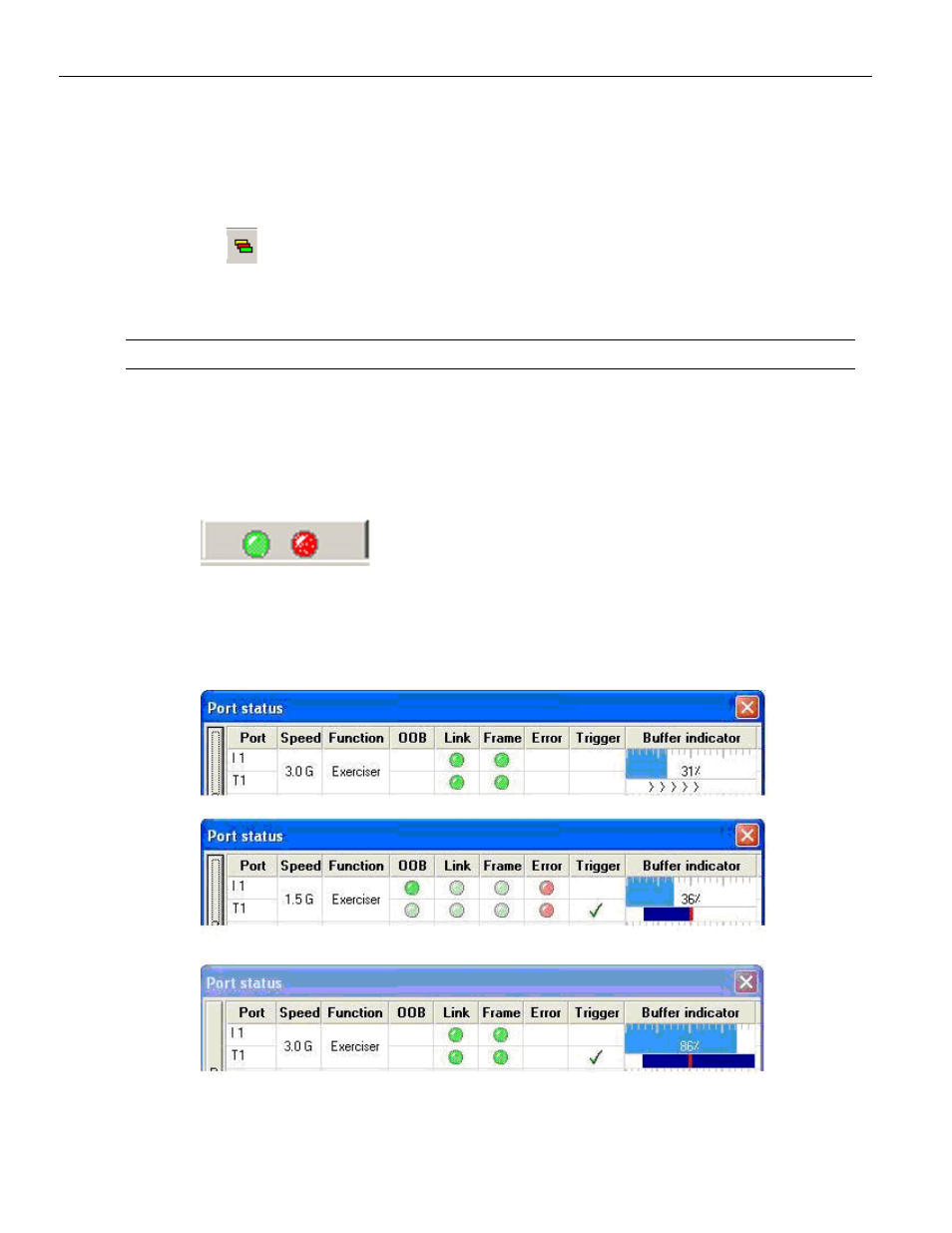

Figure 3.40: Port Status Window and Capturing Time
