LeCroy Corporation Display Configuration
252 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Other
Display pre‐filtered cells as blank in column view: The software shows pre‐filtered data
(already filtered in the capture project), as blank cells. Otherwise, it will show them as
“pre‐filtered” cells.
Show Warning in Search Primitive In Column View: If searching in Column View takes a
long time, the software asks if you want to continue search. Otherwise, the software
continues searching with no pause.
Column View Packet Size: Specifies the allocated buffer for showing rows of a packet in
Column View: When you see “Too Large” in a Column‐View cell, the current allocated
buffer is not enough and you should increase it by changing this setting.
Column View Memory Size: Displays the memory buffer.
Field List View Tab

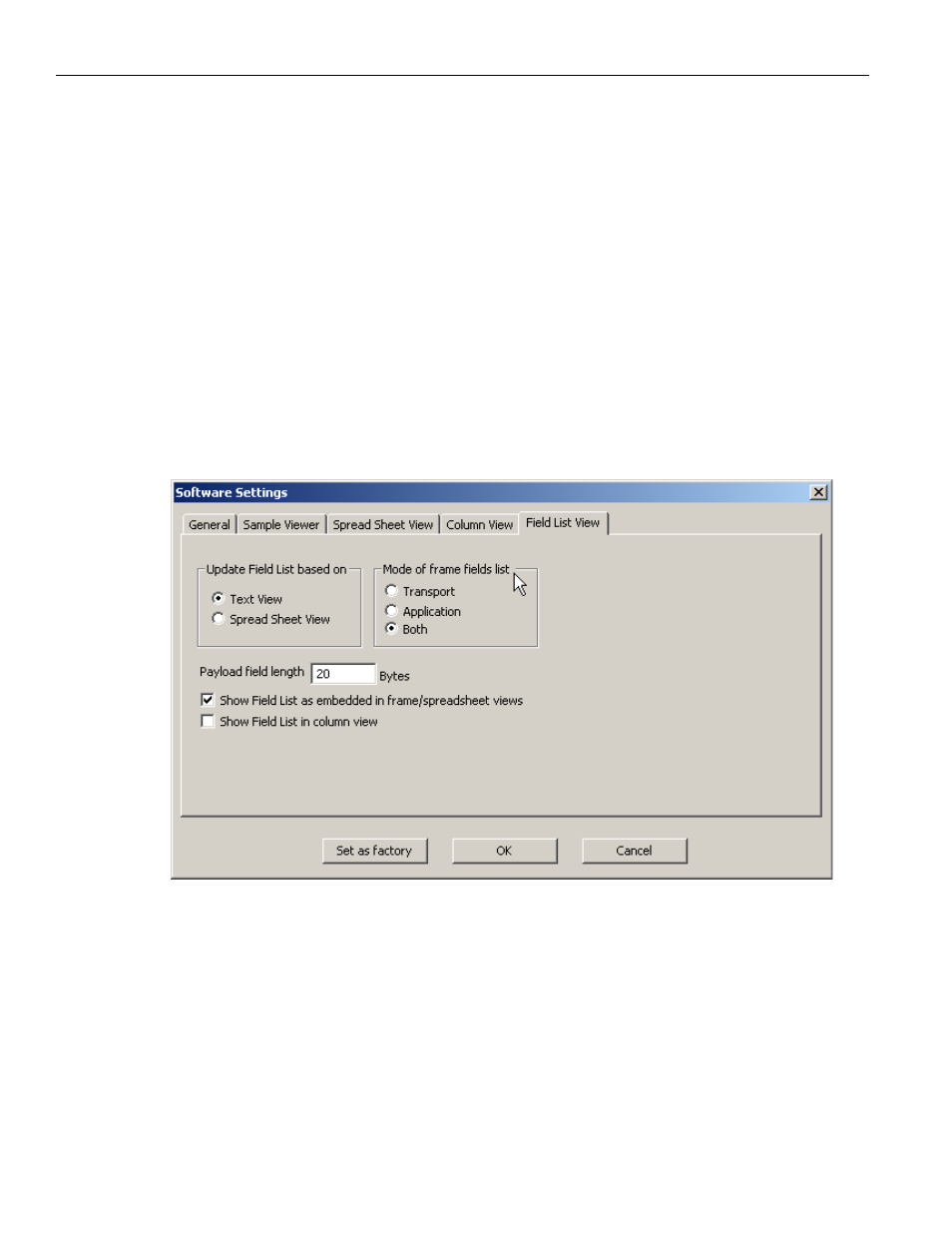

Figure 3.78: SAS: Software Settings Dialog Field List View Tab
The SATA Software Settings dialog has the same options.
Update Field List Based On
Text view: The software updates the contents of the Field List based on the current Text
View.
Spreadsheet view: The software updates the contents of the Field List based on the
current Spreadsheet View.
