Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

221

Filtering

LeCroy Corporation

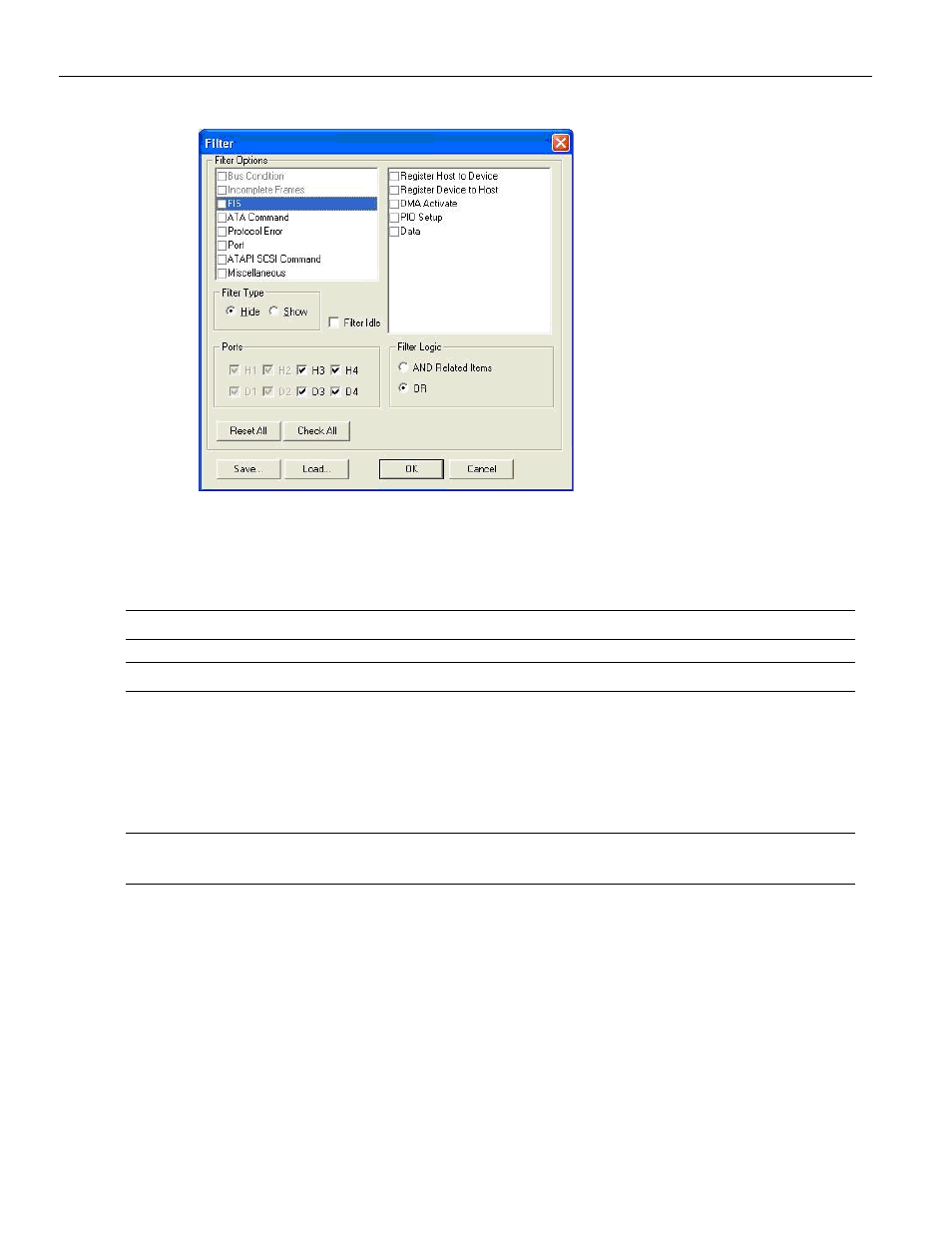

Figure 3.44: SATA: Filter Setup Dialog

You can select or deselect each of the items shown in the Filter Options window for
filtering, by checking or unchecking a corresponding check box. Items not in the current
sample are in shade.

Note:

If you select a group, that also selects all child items.

Note:

Only packets captured at run time are available for selection for filtering.

Filter Type

You can choose to show or hide the Filter Type items by checking the Show or Hide
option button.

Note:

When capturing PM traces, you need the ability to filter the PM primitives so you can find

commands quicker.

Filtering Direction

You can select items for filtering in a single direction or both directions by checking the
corresponding Port. By default, all ports are enabled. Uncheck the port check boxes for
ports not to include in the filter.

Filter Idle

Depending on the Filter Type (Hide/Show), Idle packets in the Sample Viewer are shown
or hidden.
