LeCroy Corporation Statistical Report
270 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Others Report
To display the Others Report, click the Others tab. The Others Report displays information
in the following columns:
 Items
 Idle No: Number of idle packets
 Payload Size: Total number of payloads in trace files (SCSI + ATA commands)
 Sample Time: Sample time
 Idle (Initiator): Host idle time
 Idle (Target): Device idle time (total)
 SSP Bus Utilization: SSP bus utilization time (SSP frames)
 SMP Bus Utilization: SSP bus utilization time (SMP frames)
 STP Bus Utilization: SSP bus utilization time (STP frames)
 Report
 Count or Time

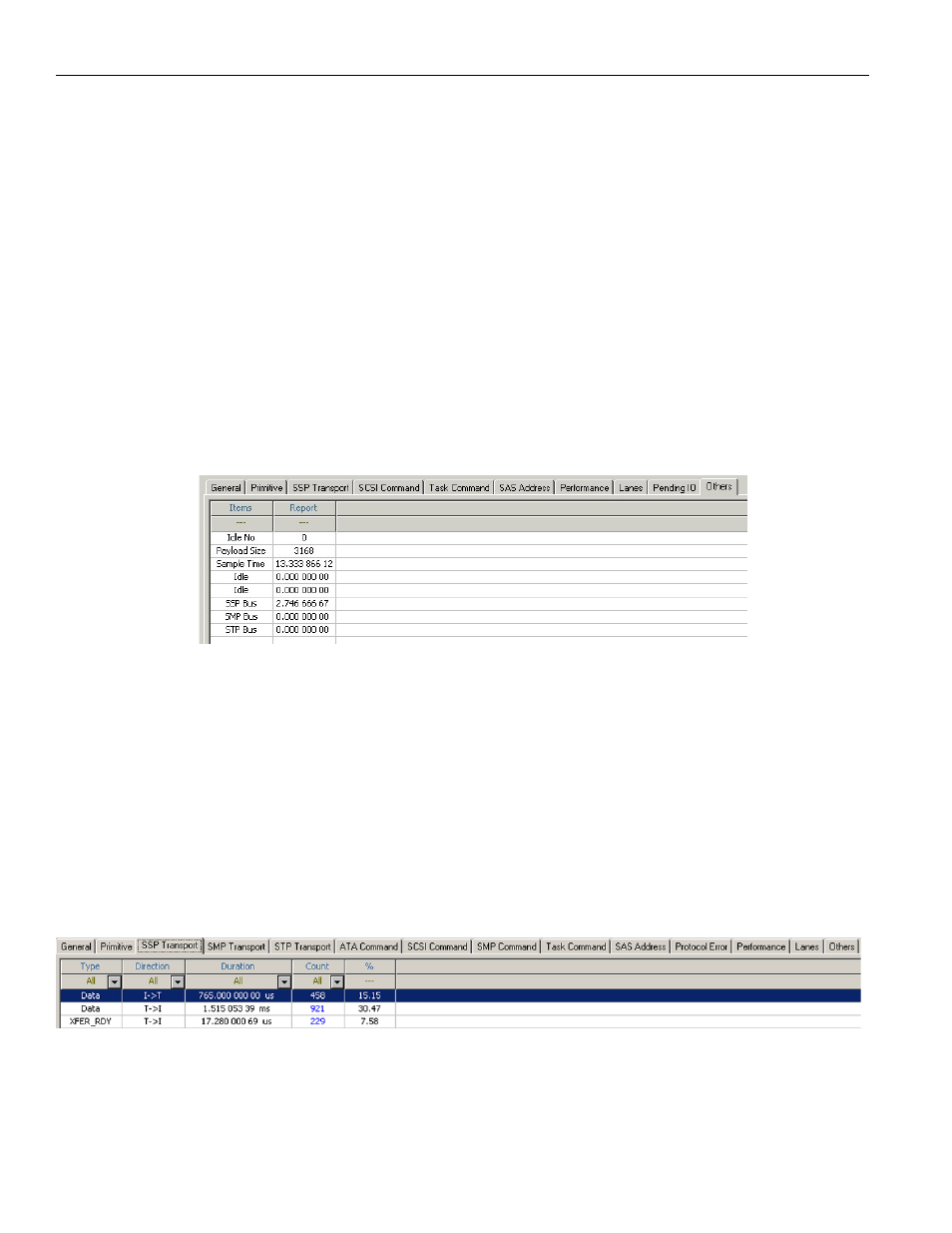

Figure 3.100: Others Report
SSP Transport Report (SAS)
To display the SSP Transport Report, click the SSP Transport tab. The SSP Transport
Report displays the report data in columns with the following information:
 Type: All, Custom, Command, Data, Response, XFER_RDY
 Direction: All, I‐>T, T‐>I, or Custom
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total count
Figure 3.101: SAS: SSP Transport Report
