Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 111
Exercise and Capture LeCroy Corporation
SATA: Click the Host Emulator tab to program the Initiator or Emulator.

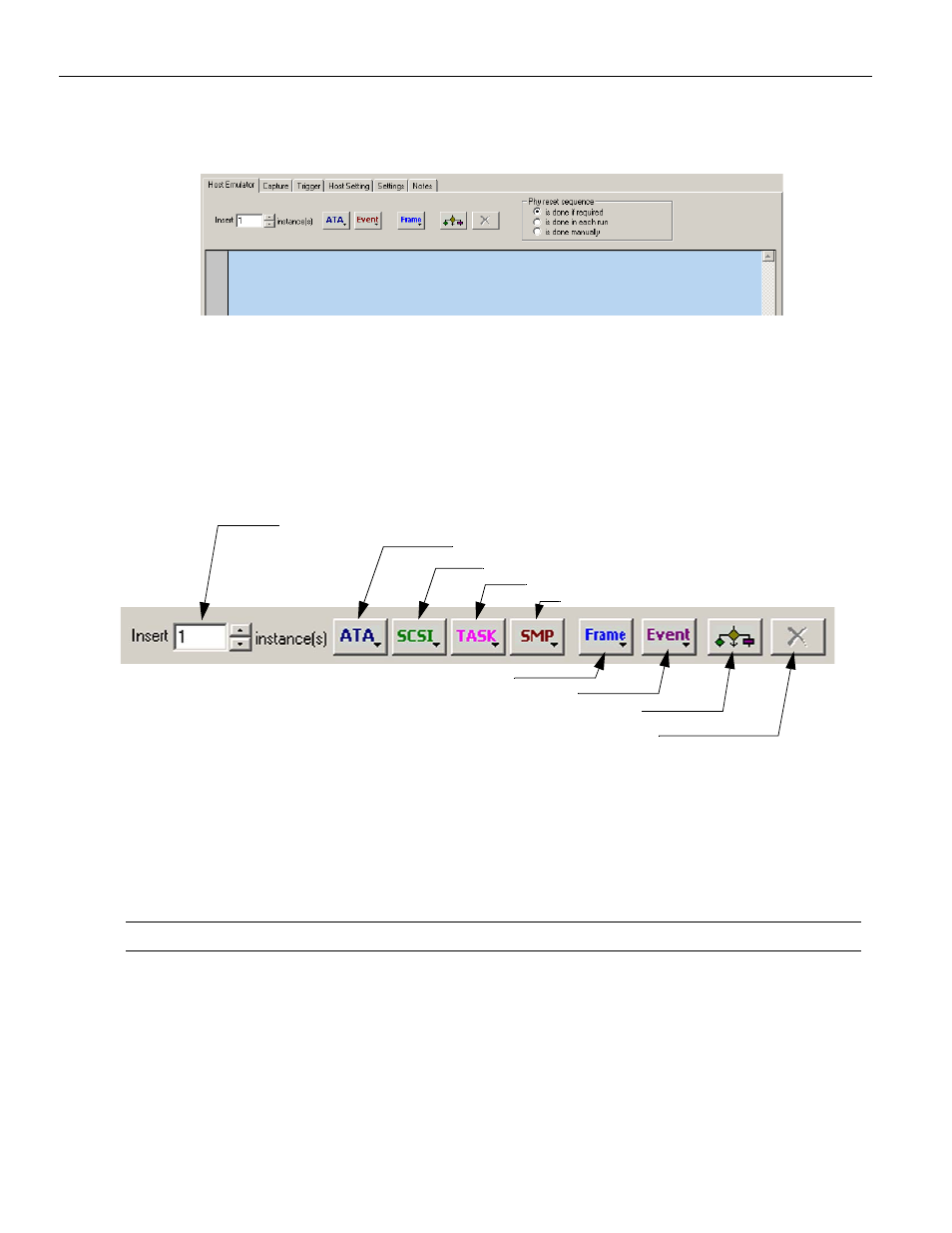

Figure 2.87: SATA: Host Emulator Program Dialog
SAS vs. SATA: SATA Dialog removes the SCSI, Task, and SMP buttons and replaces the
Initiator Setting tab with the Host Setting tab.
SAS: You can create an Initiator program using ATA, SCSI, Task, and SMP commands;
Frames; and/or Events. These commands can execute in a program loop or be subject to
user‐specified conditions.
Figure 2.88: SAS: Host Emulator Program Dialog
SATA: You can create a Host program using ATA, Frames, and/or Events.
Add Program Lines
To add program lines, enter the number of lines to add in the Insert field, then click a
command button: ATA, SCSI, TASK, SMP, Frame, or Event.
Note: SAS Initiator Emulator supports a queue depth of 32 commands.
Number of Program Lines to add
Add SCSI Command
Add Task Command
Add SMP Command
Insert Instruction
Delete Program Line
Add ATA Command
Insert Frame
Insert Event
