Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 273
Statistical Report LeCroy Corporation
Task Command Report (SAS)
To display the Task Command Report, click the TASK Command tab. The Task Command
Report displays the report data in columns with the following information:
 Function
 Status
 Direction: All, I‐>T, T‐>I, or Custom
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total count

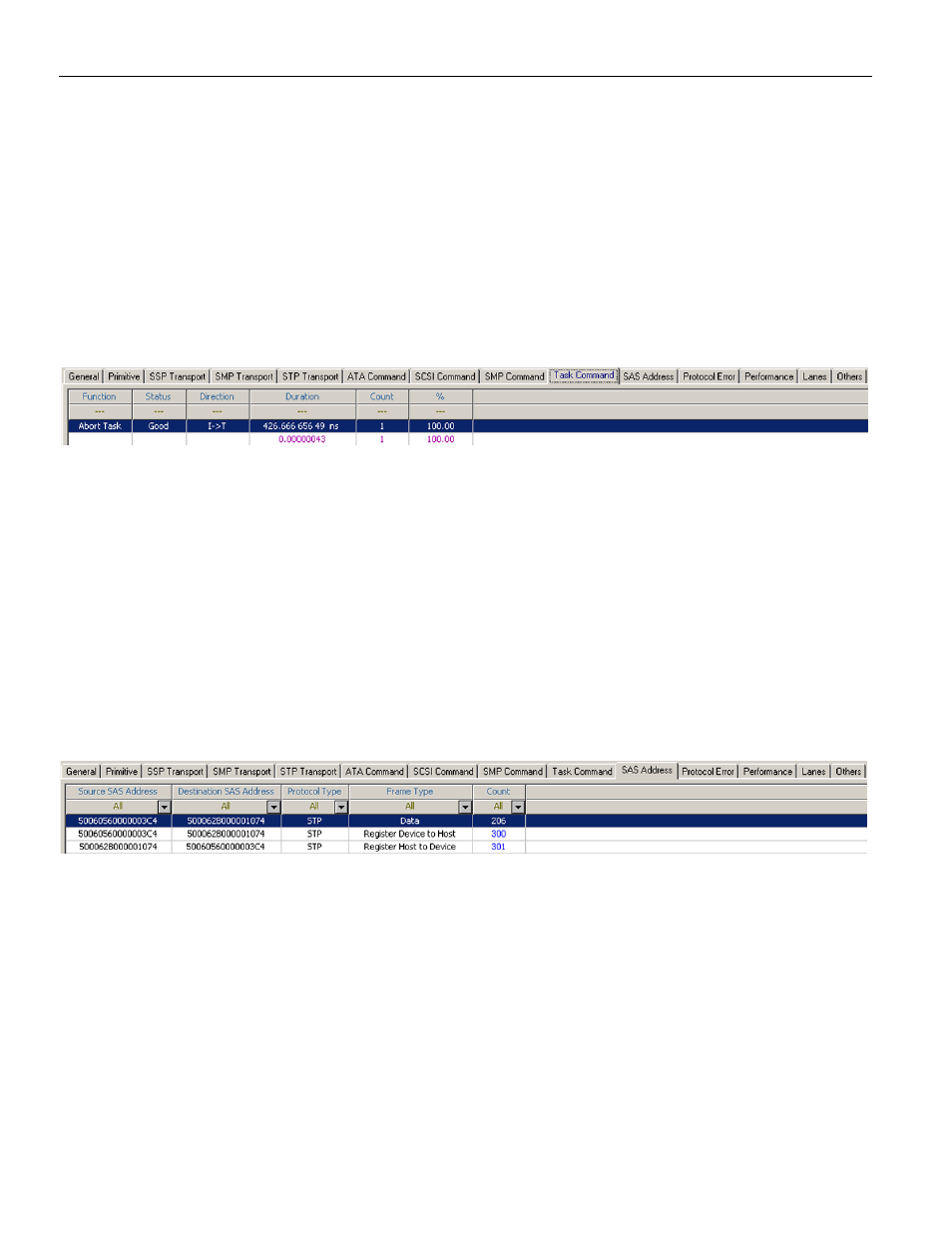

Figure 3.106: SAS: TASK Command Report
SAS Address Report (SAS)
To display the SAS Address Report, click the SAS Address tab.The SAS Address Report
displays the report data in columns with the following information:
 Source SAS Address: All, Custom, or an address
 Destination SAS Address: All, Custom, or an address
 Protocol Type: SMP, SSP, STP
 Frame Type: All, Custom, Command, Data, DMA Activate,
Register Host To Device, Register Device To Host, Response, XFER_RDY
 Count: All, Custom, or a number
Figure 3.107: SAS: SAS Address Report
