Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 57
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
5. After the project runs, you see an analyzer trace capture display similar to the one
shown in Figure 2.15

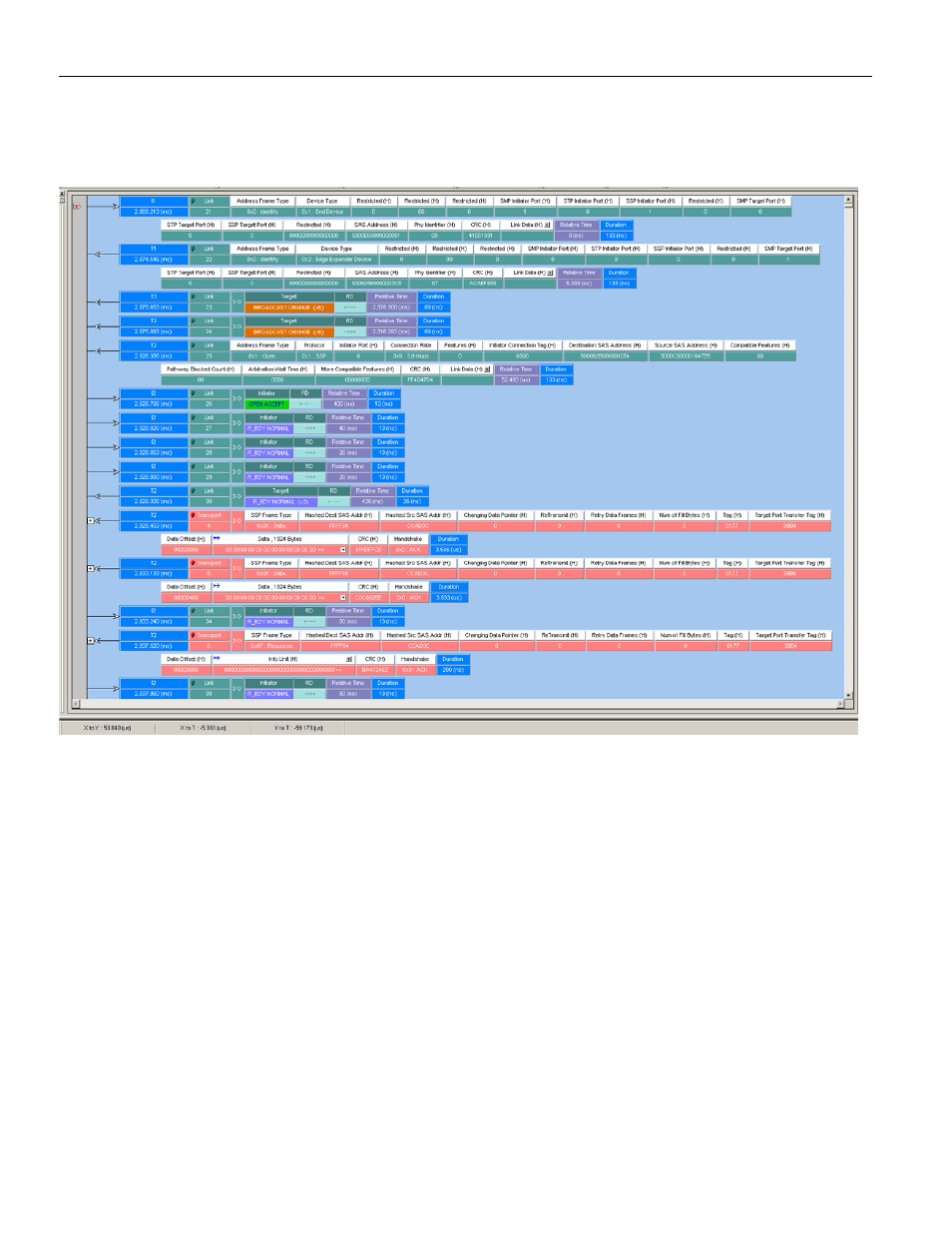

Figure 2.15: SAS: Analyzer Trace Capture Display
For details about the results display, See “Display Manipulation” on page 191. and See
“Display Configuration” on page 240.
Patterns and Data Capture Setup
You can refine data capture by choosing Pattern and then selecting specific patterns for
capture. Additionally, you can define a different set of patterns to capture after trigger.
To define specific patterns for capture, click the Pattern button.
