Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

67

Easy Mode (Pre‐Defined Setups)

LeCroy Corporation

FIS Types

If you select STP Frame (SAS) or FIS Pattern (SATA) for the Pattern, the FIS Pattern window
opens. You can select the FIS Type in this window from among the following types.

Register Host to Device

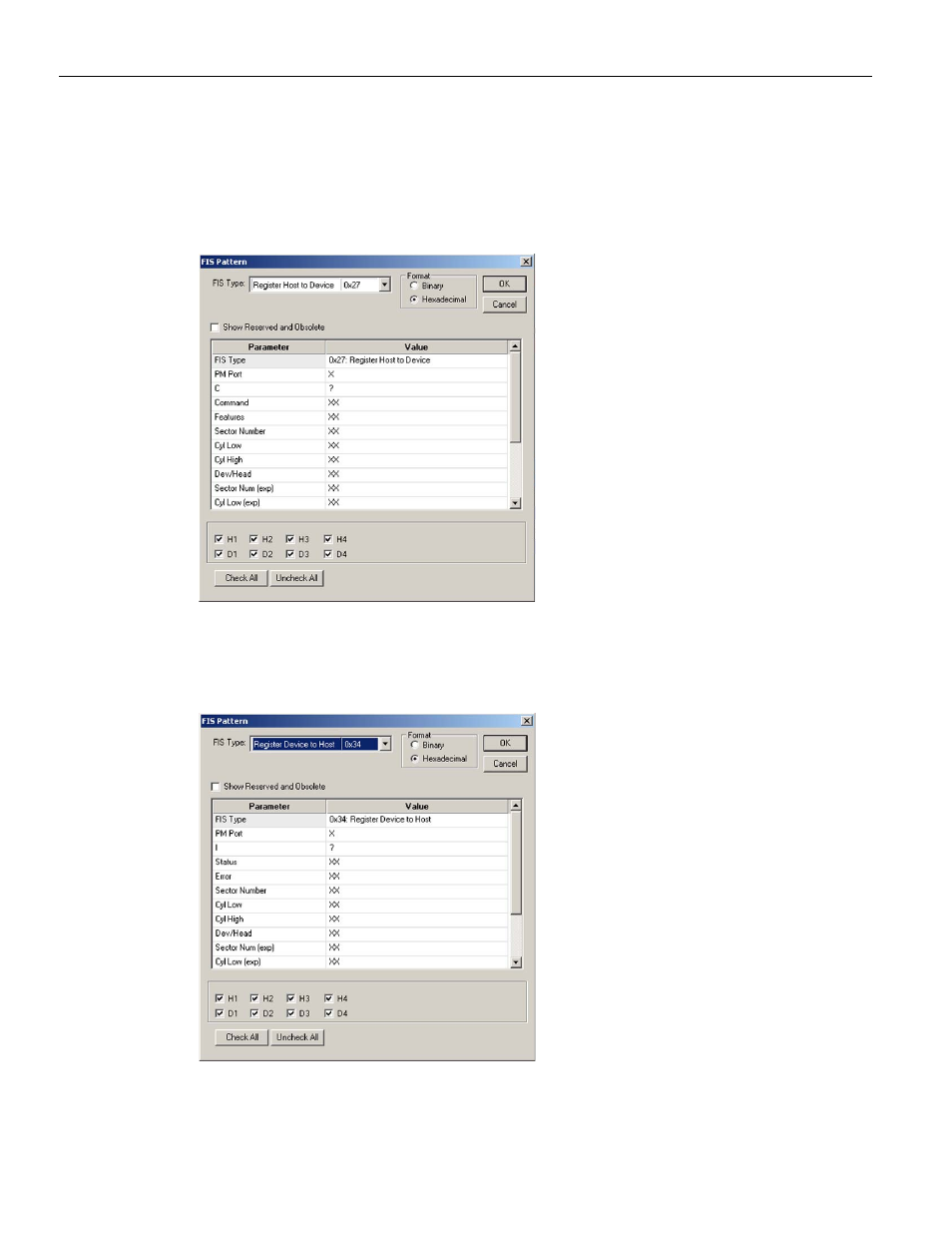

Figure 2.28: FIS Pattern - Register Host to Device Dialog

Register Device to Host

Figure 2.29: FIS Pattern - Register Device to Host Dialog
