Easy Mode (Pre‐Defined Setups)

Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

Address Frame (SAS only)

Double‐click Address Frame to open the Address Frame Type Pattern dialog.

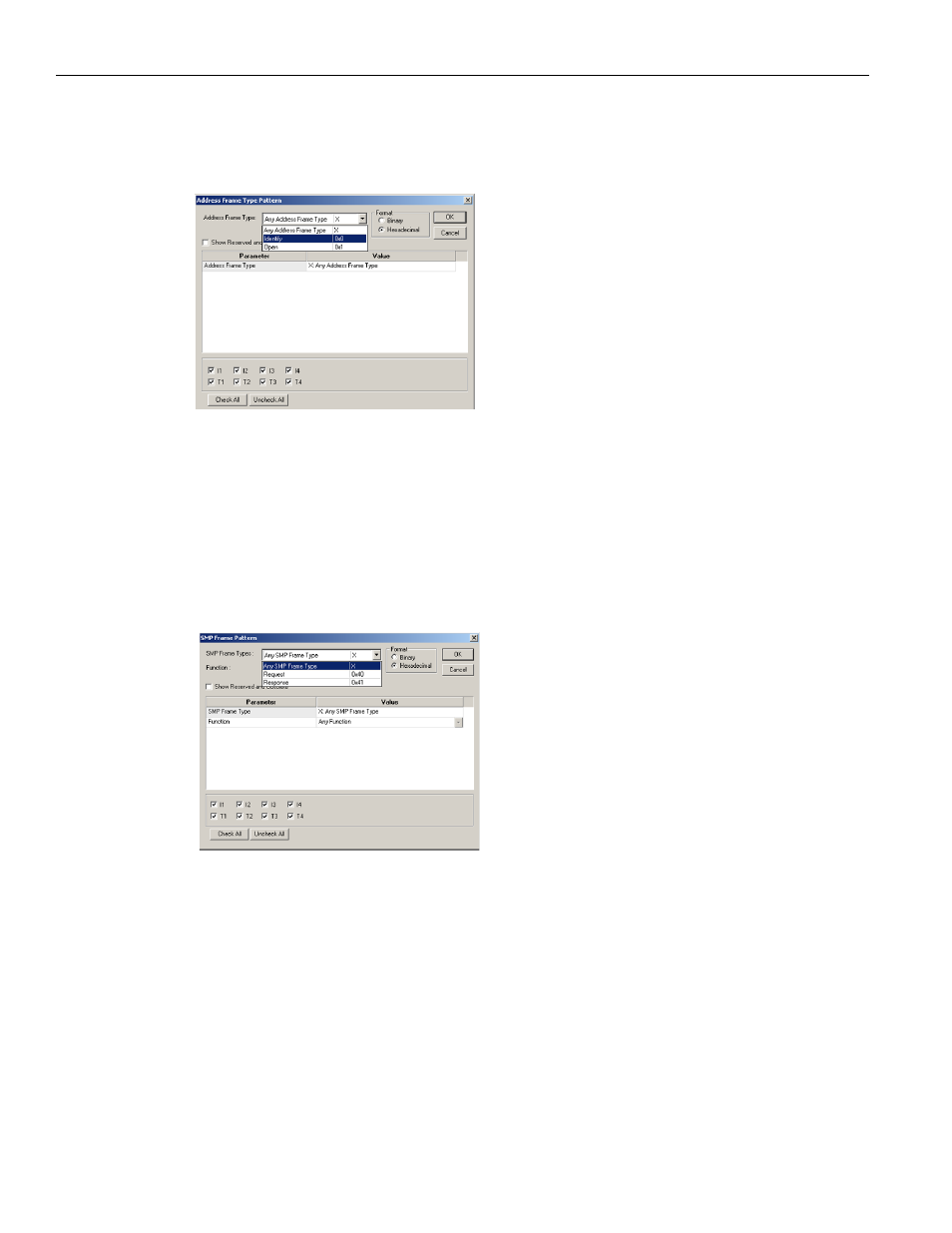

Figure 2.23: Address Frame Type Pattern Dialog

SAS vs. SATA: Not available in SATA.

Click the down arrow next to the Address Frame Types list box and choose an address
frame type.

SMP Frame (SAS only)

Double‐click SMP Frame to open the SMP Frame Pattern dialog.

Figure 2.24: SMP Frame Pattern Dialog

SAS vs. SATA: Not available in SATA.

Click the down arrow next to the SMP Frame Type list box and choose a frame type.
Assign a specific function to the frame by clicking the down arrow next to the Function
list box and choose a function.
