LeCroy Corporation Expandability
26 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

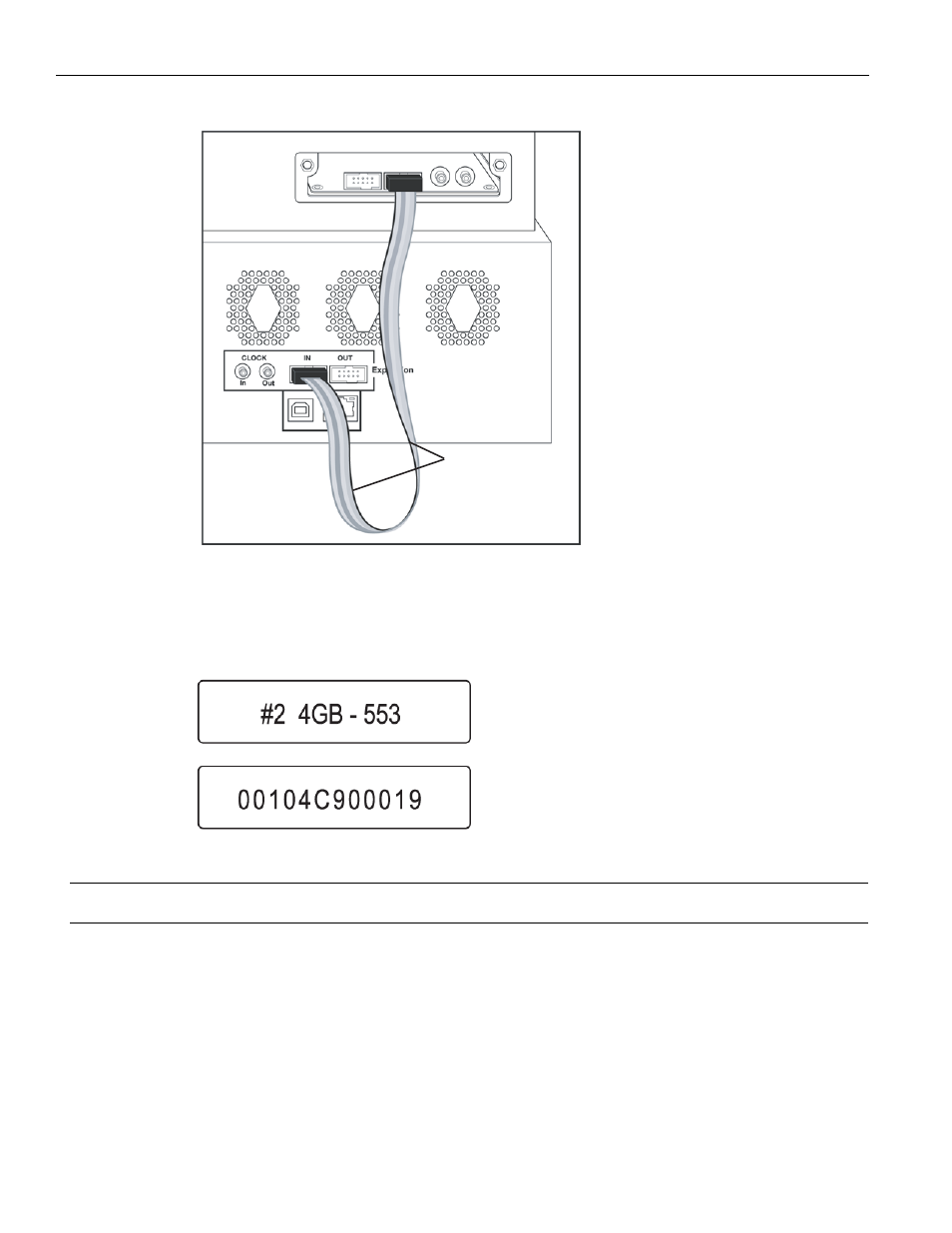

Figure 1.10: Cascading Wrongly
5. Make a note of the last four digits of the MAC address of the unit designated as
Unit 1 and the last four digits of the other units, in order of connection.
Figure 1.11: Address Digits
Important! Power up all units before starting the software.
Incorrect way to connect:
The black color pin of the
ribbon wire is connected
in a different way between
the 2 connectors.
Cascading works incorrectly
in this case, the boxes are
connected but no traces
are captured.
Black color pin
of ribbon wire
