Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 193
Sample Properties LeCroy Corporation
Using the Viewer Display
To configure the data viewer display, use the toolbars. You can display the same data in:
 Column view, with transactions grouped for each active port
 Text view, with transactions grouped for each active port
 Spreadsheet view
 Histogram view
 CATC Navigation View
To change the view type when opening a sample, change the default workspace or save
options in the Software Settings dialog.
To toggle among open windows, use CTRL ‐ TAB. 
To reverse toggle order, use CTRL ‐ SHIFT ‐ TAB.
To make a frame a trigger pattern, in Packet View, right‐click any frame, select
Add to Trigger, and add the pattern to DataPatternCapture.
Sample Properties
The Sample Properties dialog displays:
 Software version
 Sample file version
 Grouping Type
 Hardware bin file version
 Analyzer armed at
 Analyzer triggered at
 Sample saved at
 Original Capture Project: Open displays the project settings used to capture the
sample.
 Licensing Information

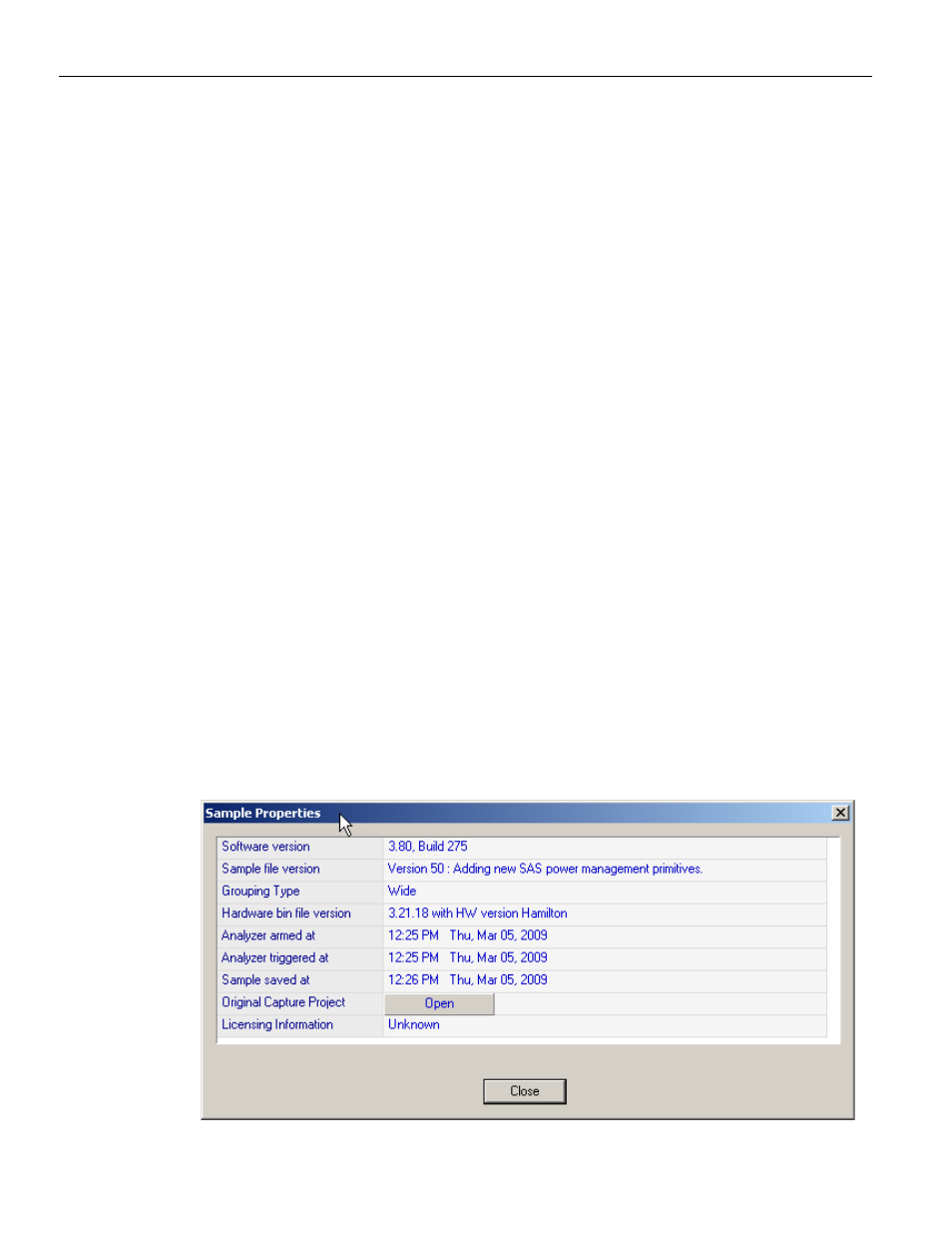

Figure 3.3: Sample Properties Dialog
