Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 289
Tools LeCroy Corporation
Number of Runs Each Test
You can specify to run a test more than once.
Run All Tests Sequentially
This option runs all items in the Clock, Memory, Serdes, Crosspoint, Main FPGA,
Expansion, and LED/Buzzer tests in order. After you check this check box, the command
button becomes Start All Tests. You must click the Stop Test button on the LED/Buzzer tab
to stop the check.
Memory Check
To perform a SDRAM or Exerciser RAM memory check, select the Memory tab.

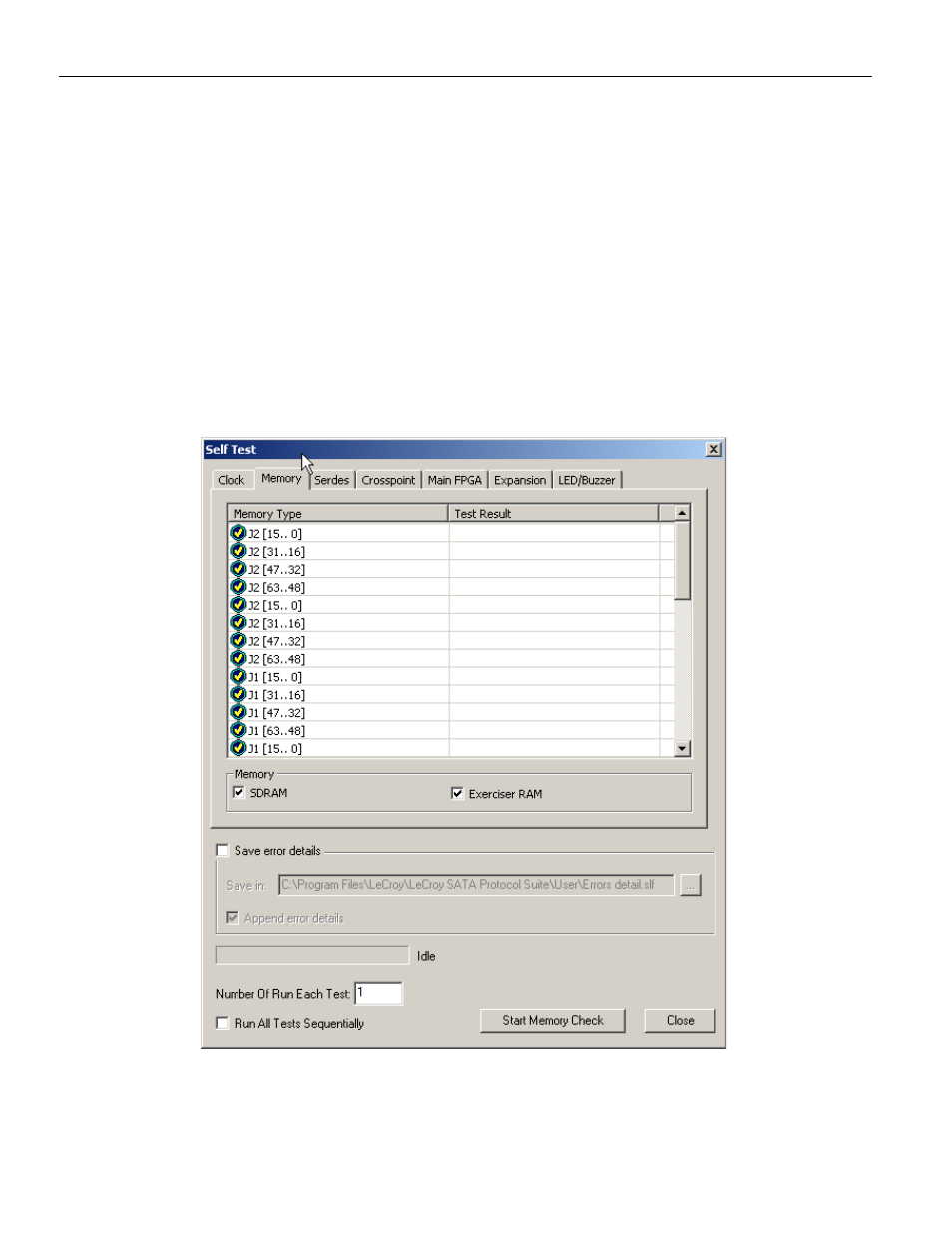

Figure 3.129: SAS: Self Test Dialog Memory Tab
