LeCroy Corporation Statistical Report
274 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Lanes Report (SAS)
To display the Lanes Report, click the Lanes tab. The Lanes Report displays the report data
in columns with the following information:
 Port
 Open Accept: All, Custom, or a number
 Open Reject: All, Custom, or a number
 AIP Waiting on Con.
 Break
 SCSI Command: All, Custom, or a number
 ATA Command: All, Custom, or a number
 SMP Command: All, Custom, or a number
 Out Standing Command: All, Custom, or a number
 Transfer Bytes: All, Custom, or a number
 Link Utilization (time)
 Link Utilization%

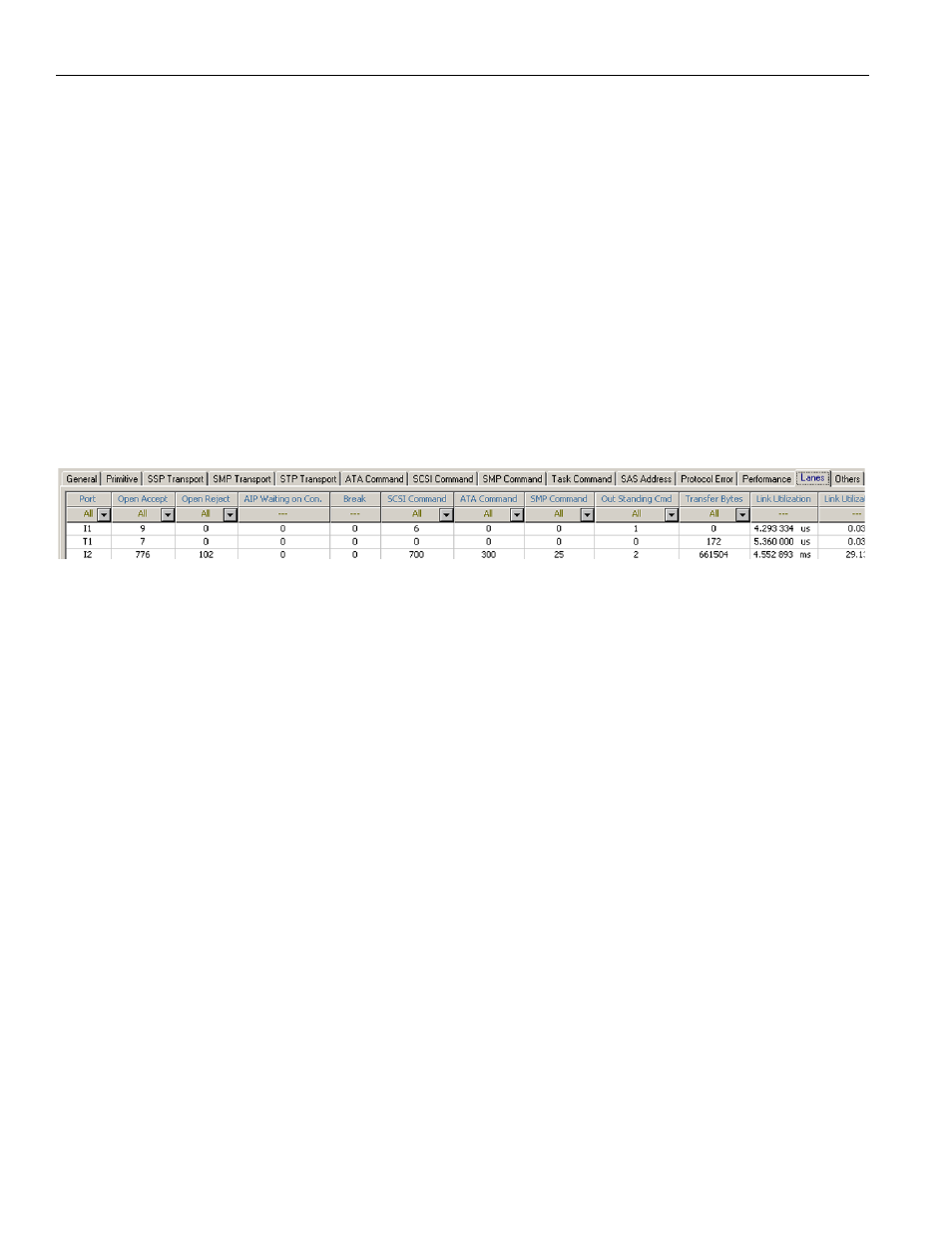

Figure 3.108: SAS Lanes Report
Read/Write Command Report (SAS)
To display the Read/Write Command Report, click the Read/Write Command tab. You
can enable or disable creation of this page under Software Settings (
See “Software
Settings” on page 246. ). The Read/Write Command report displays the report data in
columns with the following information:
 Source SAS Address
 Destination SAS Address
 Protocol Type
 OpCode/Command
 Tag
 LBA
 Sector Count
 Xfer Length
 Payload Size: All, Custom, or a number of DWORDs
