Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

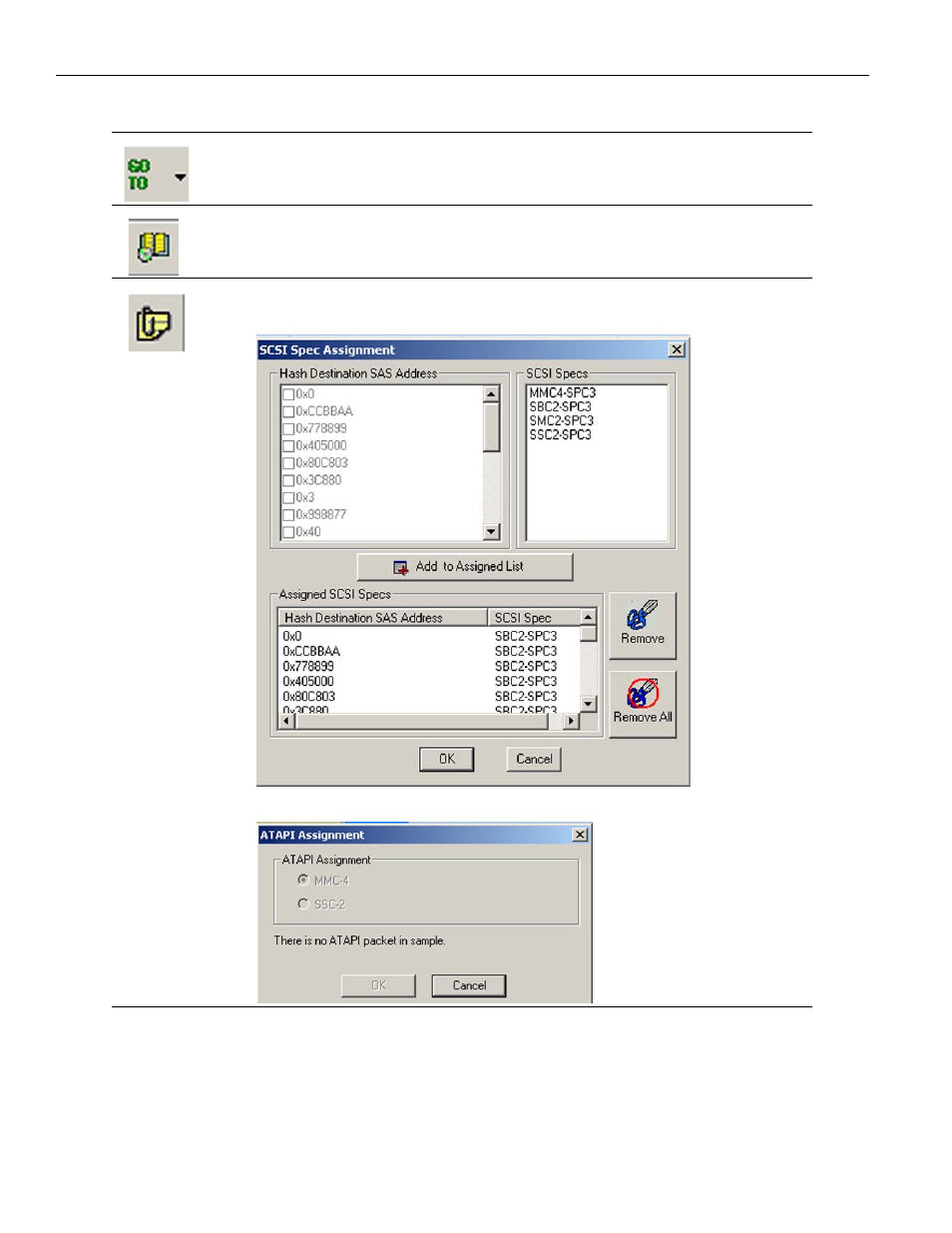

The down arrow on the Go To button allows location of cursors or specific
packets: Trigger Position, X Position, Y Position, Packet Number, Timestamp,
Bookmark, Begin, and End.

The Data Report button displays the data report.

The SCSI Spec Assignment button displays the SCSI Spec Assignment dialog
for SAS

It displays the ATAPI Assignment dialog for SATA.
