SCSI Command Report (SAS)
To display the SCSI Command Report, click the SCSI Command tab. The SCSI Command
Report displays the report data in columns with the following information:
 Command: All, Custom, Inquiry, Mode Sense6, Pause Resume, Play Audio 10,
Read Capacity, Read10, Receive Diagnostic Results, Send Diagnostic, Write10,
Start Stop Unit, Test Unit Ready, Report Luns, Synchronize Cache10
 Direction: All, I‐>T, T‐>I, or Custom
 Number of Transport: All, Custom, or a number
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Good, Incomplete, Response Data Present
 Task Attribute: Simple
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total count

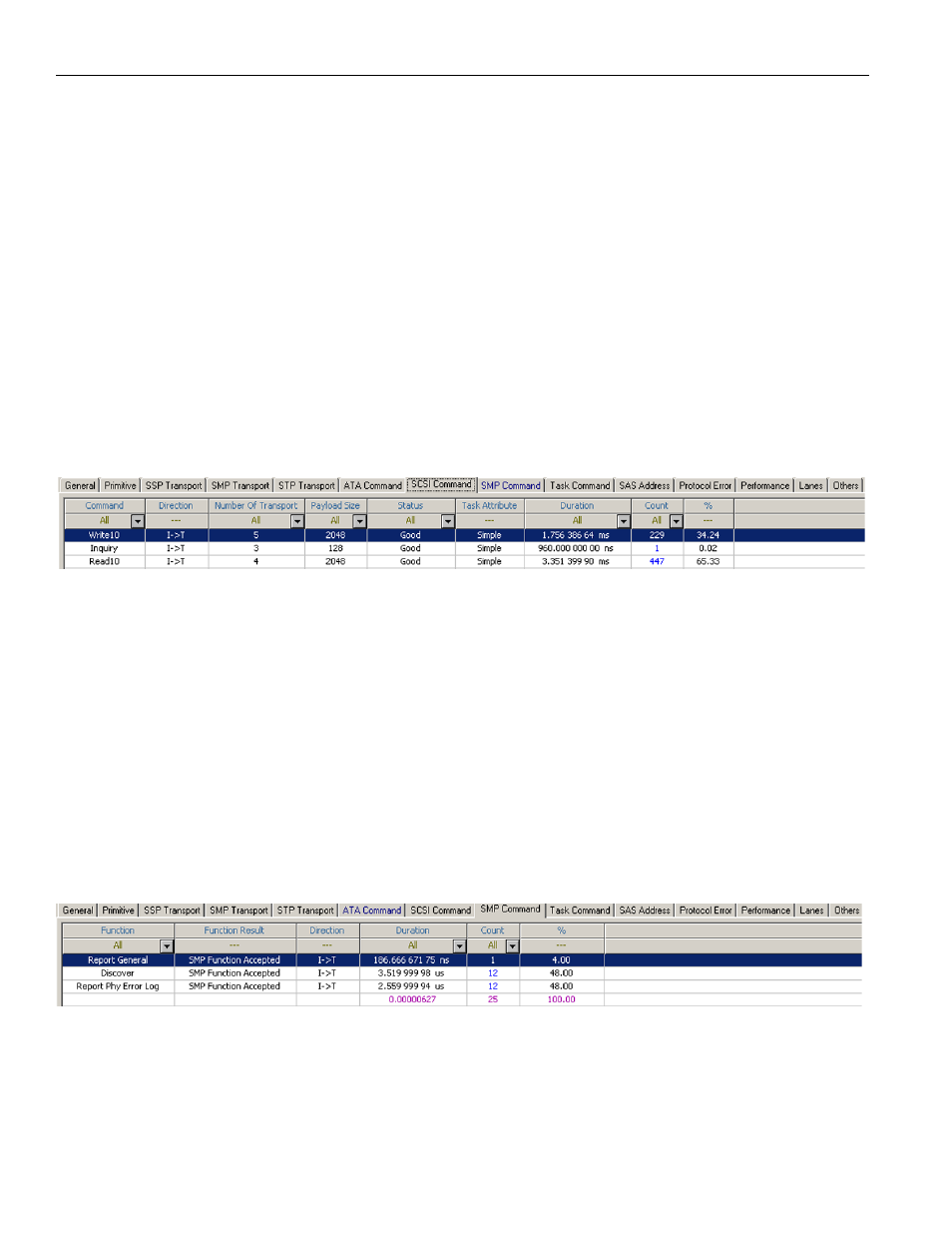

Figure 3.104: SAS: SCSI Command Report
SMP Command Report (SAS)
To display the SMP Command Report, click the SMP Command tab. The SMP Command
Report displays the report data in columns with the following information:
 Function: All, Custom, Discover, Report General,
Report Manufacture Information, Report PHY Error Log
 Function Result: SMP Function Accepted
 Direction: All, I‐>T, T‐>I, or Custom
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total count
Figure 3.105: SAS: SMP Command Report
