LeCroy Corporation Toolbars
216 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

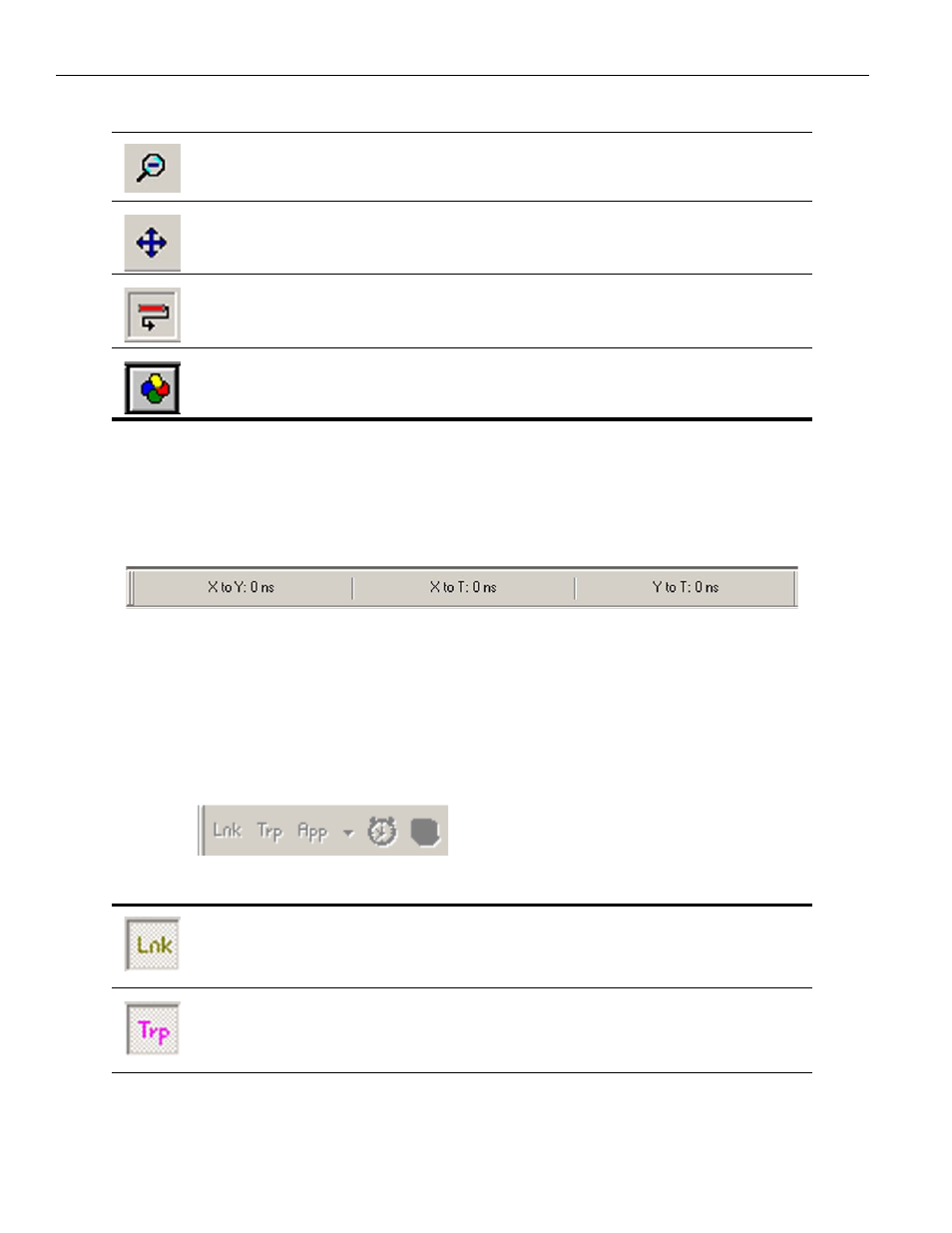

Cursor Position Status Bar
To display the cursor position status bar, select Toolbar > Cursor Position.
Figure 3.41: Cursor Position Toolbar
See “Using the Cursors and Bookmarks” on page 230 .
Layers Toolbar (SAS)
The Layers toolbar shows or hides packet types.
.
The Zoom Out button on the Viewer Setting Toolbar scales the data display
area to display more data lines on the screen. Clicking this button in Column
or Text View decreases column width only.
The Normal Zoom button on the Viewer Setting Toolbar resets the zoom to
default normal on the screen. Clicking this button in Column or Text View
resets column width only.
The Wrap Packets button on the Viewer Toolbar wraps the packet data in the
display to eliminate the need for horizontal scrolling.
The View Setting button on the Viewer Setting Toolbar opens the
Sample Viewer Configuration dialog (see
“Display Configuration” on
page 240 ).
The Show/Hide Link Packet button displays/hides the Link layer.
The Show/Hide Transport Packet button on the Layers Toolbar displays/hides
the Transport layer and below.
