Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 133
Exercise and Capture LeCroy Corporation
Frame Length Error
Check Frame Length Error and choose the type of error to introduce.
Code violation and Disparity error
Check these and specify DWORD offset and number of error DWORDs.
Additionally check:
No WTRM
Code Violation on SATA primitive
Disparity error on SATA primitive
Ignore XRDY/RRDY sequence
Delay in HOLD response (in sending HOLDA)
SOF, EOF and CRC errors
Check these and specify Double or Omit by checking the corresponding option button.
Insert Primitive

Check Insert Primitive and then click the Type button to open the Primitive Type dialog
and select the primitive type.

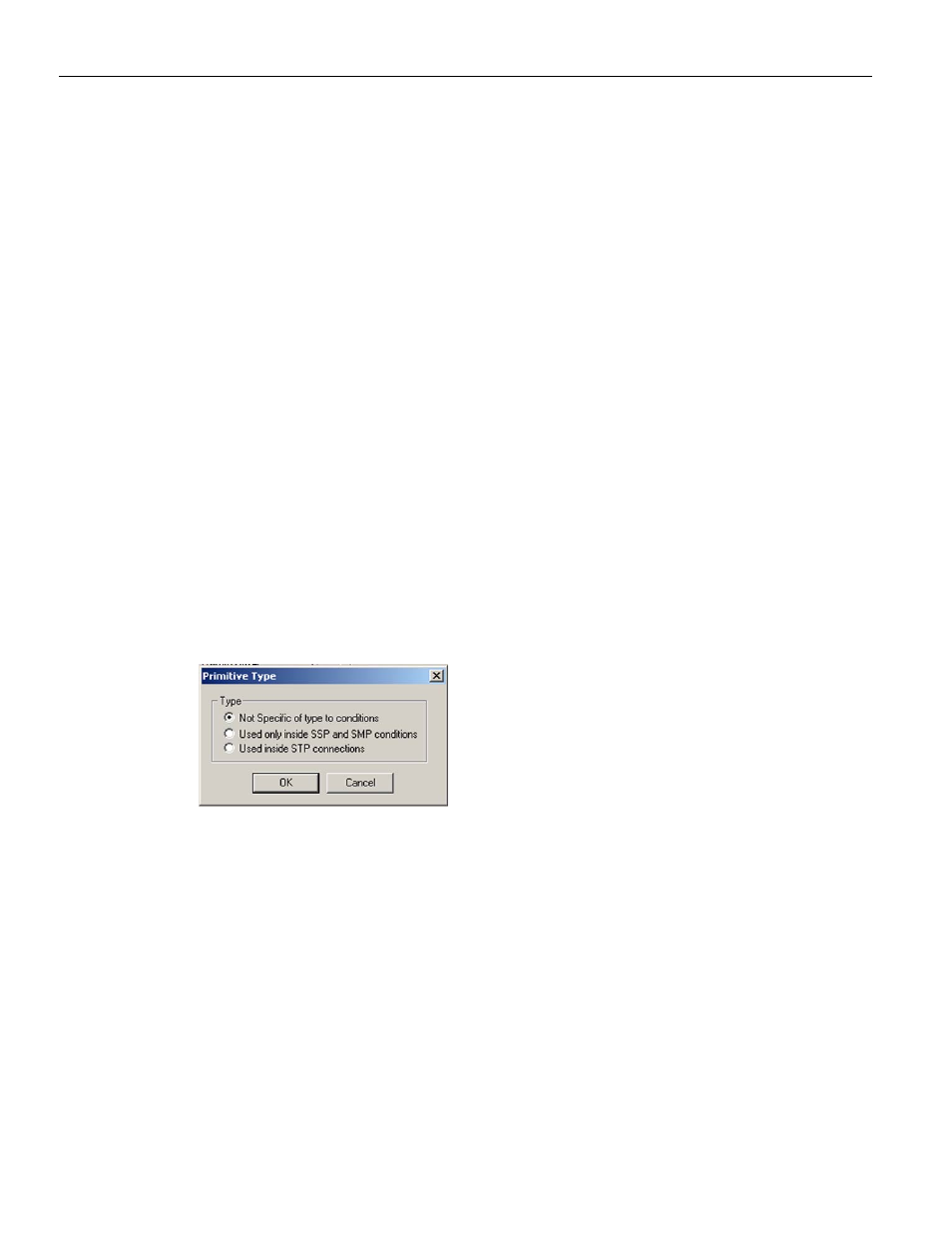

Figure 2.129: Primitive Type Dialog
Click the down arrow on the Primitive combo box, choose a primitive, then click OK.
Fill reserved fields with
Enter a value for which reserved fields to change, if other than 0.
Field of Frame
Select Destroy, scroll through the available choices in the Field of Frame list box, and
choose a field to destroy. Alternatively, select Specify Value to fill the chosen field with a
pre‐defined value.
