Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

61

Easy Mode (Pre‐Defined Setups)

LeCroy Corporation

Double‐click Data Pattern to open the Data Pattern definition dialog.

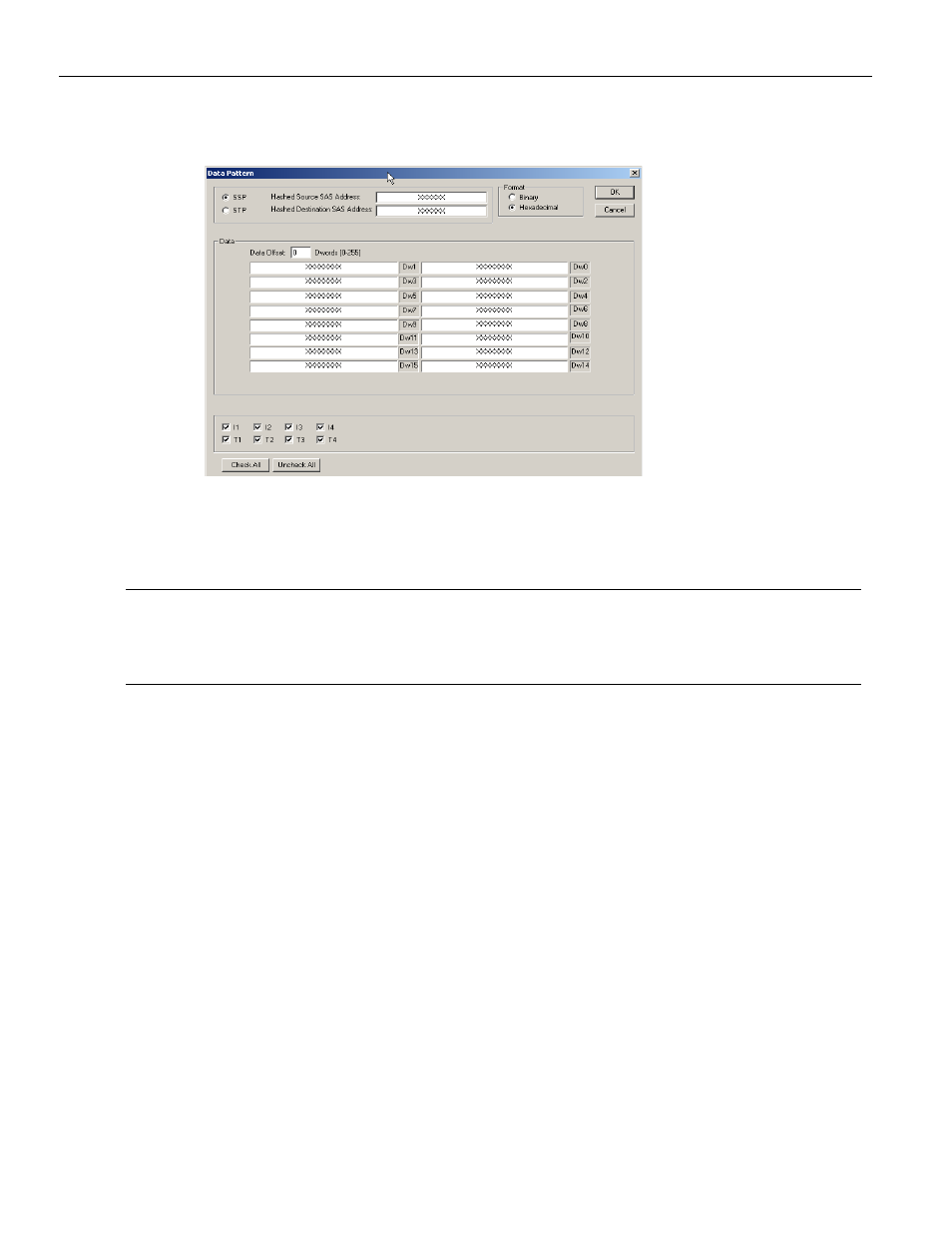

Figure 2.20: SAS: Data Pattern Dialog

SAS vs. SATA: SATA Dialog shows Port at the top and does not show SSP or STP.

Define the data pattern for capture or exclusion from capture and click OK.

Note:

When entering the data pattern in the “data” section of this screen, if you are reading the data

pattern from a recorded trace, you must reverse the order of the bytes listed for each DWORD
entered. For example, if you want to capture (or exclude) “00 01 02 03” (as displayed in the
trace), you must enter this pattern as “03 02 01 00”.
