Statistical Report LeCroy Corporation
SMP Transport Report (SAS)
To display the SMP Transport Report, click the SMP Transport tab. The SMP Transport
Report displays the report data in columns with the following information:
 Type: All, Custom, Request, Response
 Direction: All, I‐>T, T‐>I, or Custom
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total coun

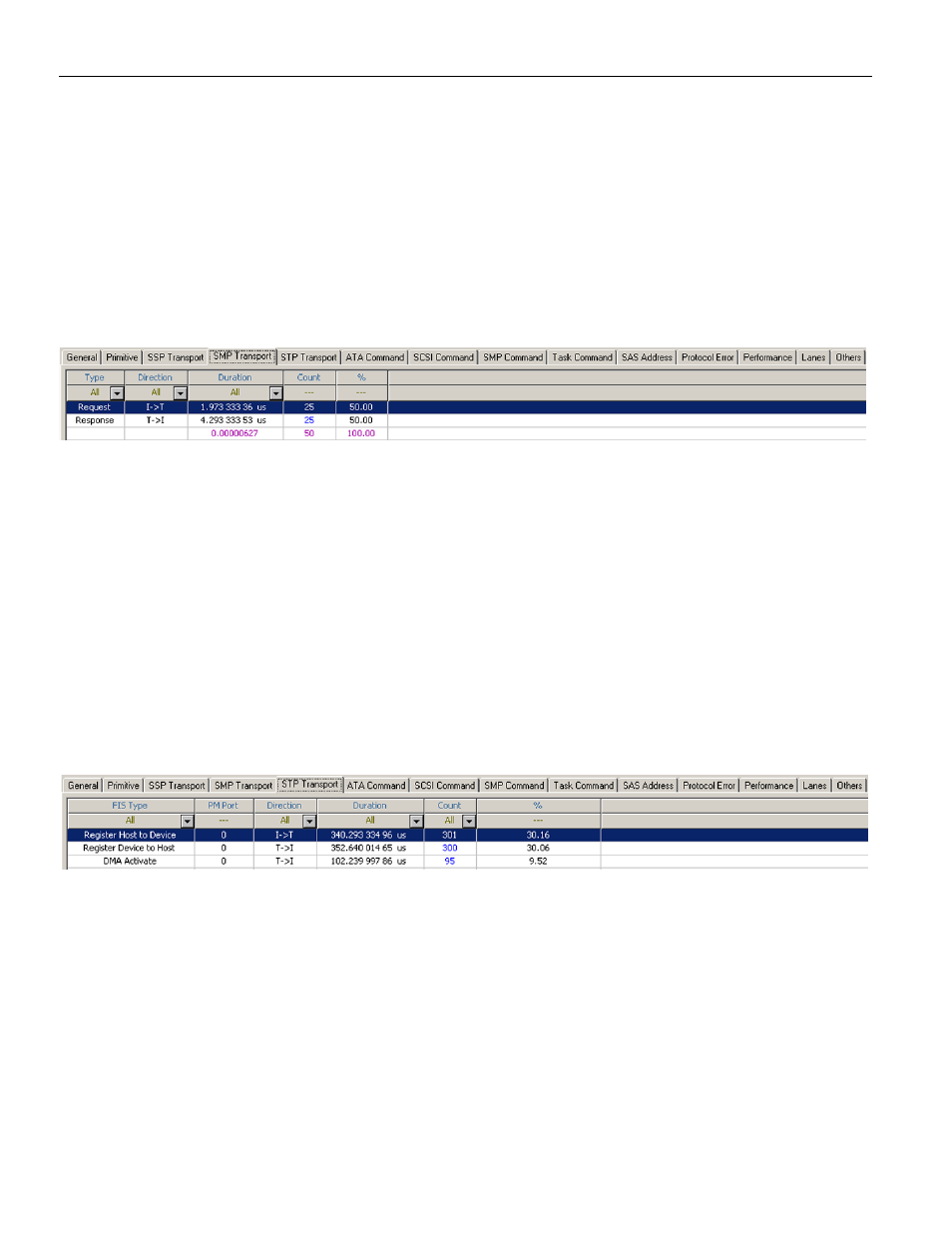

Figure 3.102: SAS: SMP Transport Report
STP Transport Report (SAS)
To display the STP Transport Report, click the STP Transport tab. The STP Transport Report
displays the report data in columns with the following information:
 FIS Type: All, Custom, Data, PIO Setup, Register Host To Device,
Register Device To Host
 PM Port
 Direction: All, I‐>T, T‐>I, or Custom
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total count
Figure 3.103: SAS: STP Transport Report
