Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 269
Statistical Report LeCroy Corporation
ATAPI Report
To display the ATAPI Report, click the ATAPI tab. The ATAPI Report displays information in
the following columns:
 Command: All, Custom, Inquiry, Mode Sense 10, Read10, Request Sense
 Direction: All, H‐>D, D‐>H, or Custom
 Number of FIS or Number of Transport: All, Custom, or a number
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Check Condition, Good
 Duration: All, Custom, or time unit (accumulative)
 Count: All, Custom, or a number of occurrences
 %: of total count

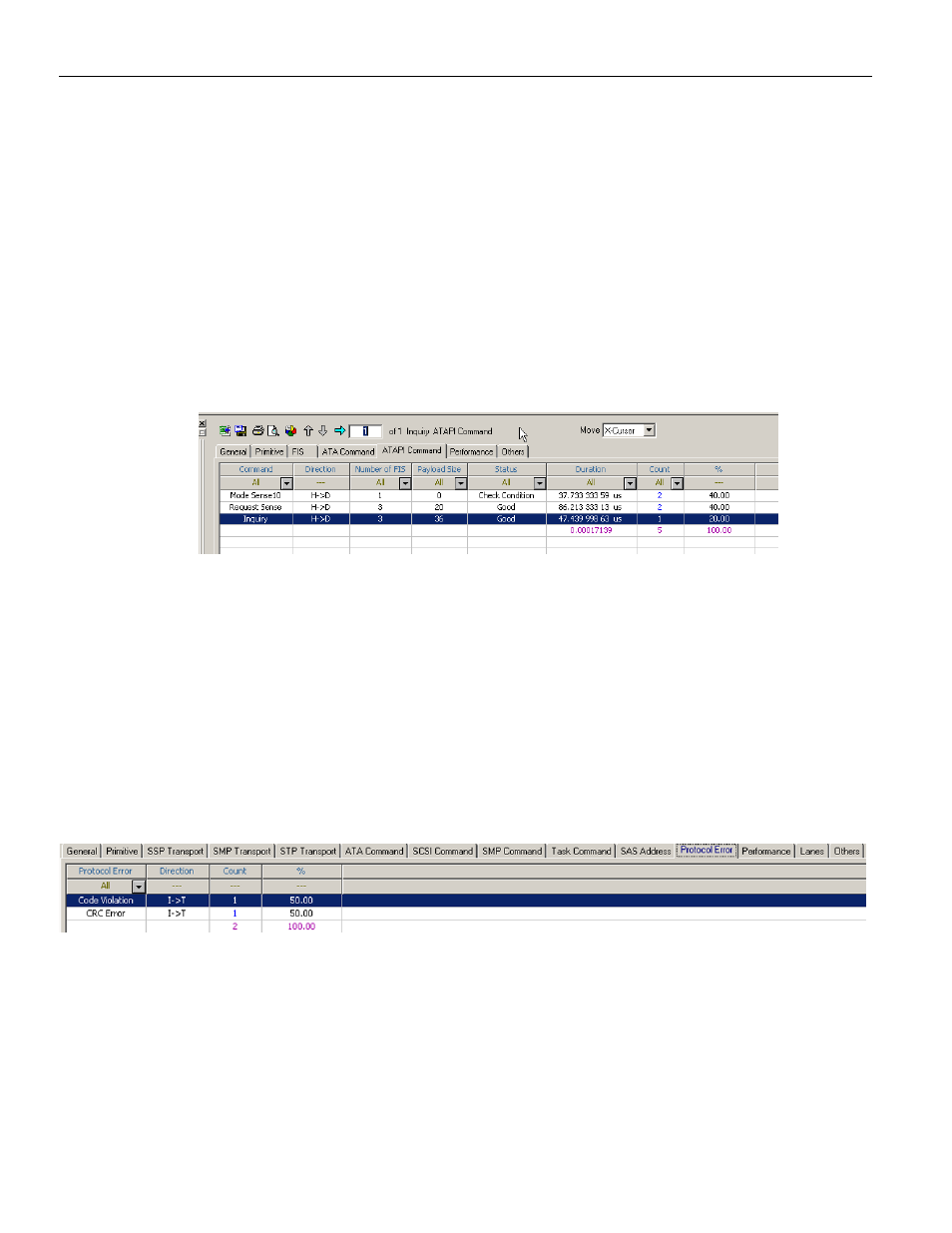

Figure 3.98: SATA: ATAPI Report
Protocol Error Report
To display the Protocol Error Report, click the Protocol Error tab.The Protocol Error
Report displays the report data in columns with the following information:
 Protocol Error: All, Custom, Code Violation, CRC Error, Disparity Error, Align‐
Notify Error
 Direction: All, H‐>D, D‐>H, I‐>T, T‐>I, or Custom
 Count: All, Custom, or a number of occurrences
 %: of total count
Figure 3.99: SAS: Protocol Error Report
