Expandability
34
Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

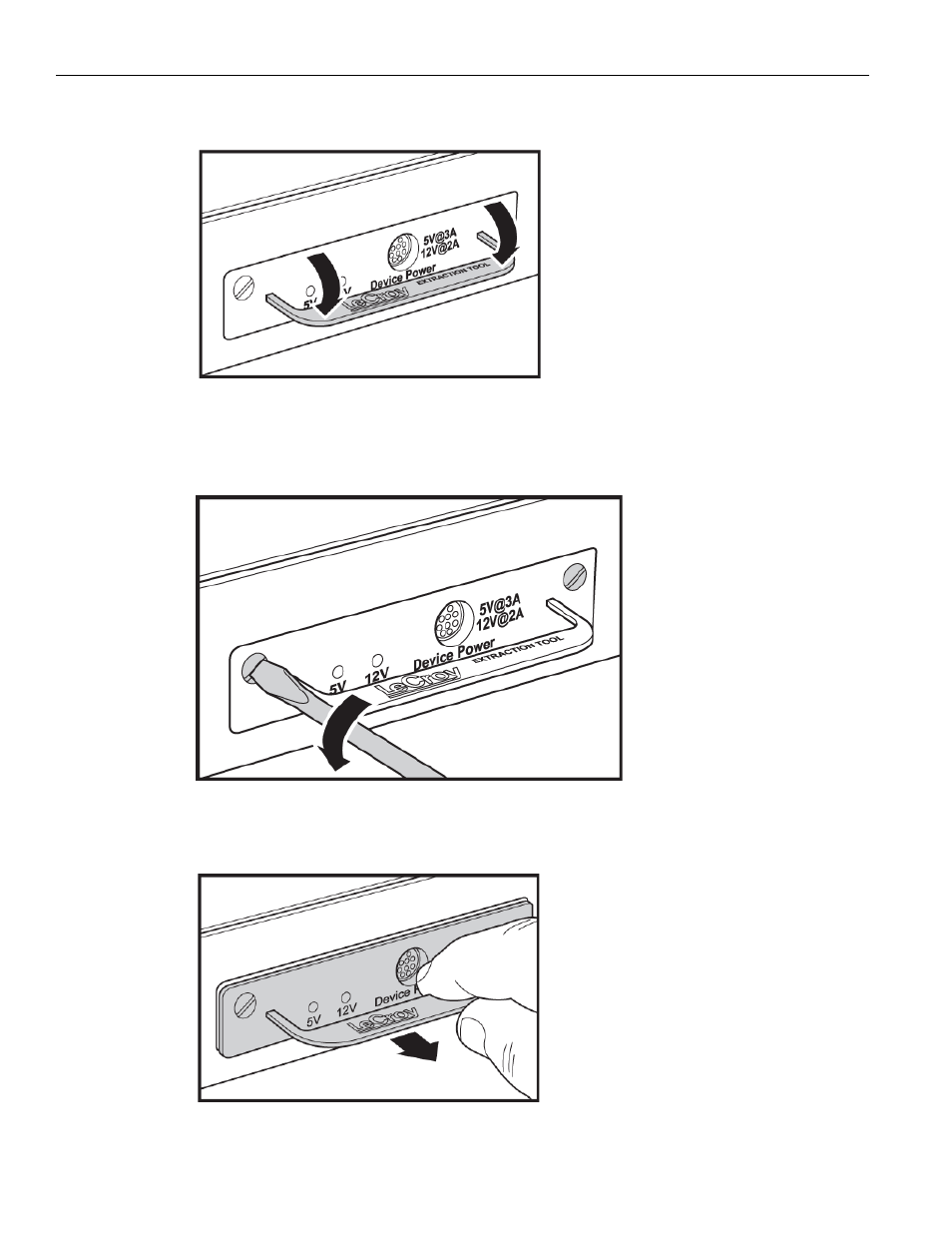

4. Using the screwdriver, loosen both retaining screws by rotating them counter‐
clockwise approximately two full turns, until feeling slight resistance. Do not force
the retaining screws after two turns.
5. Using the extraction tool as a handle, gently wriggle the expansion card forward
about 1/8”.
