Note: You can also click Reset.
User-Defined Decoding
User‐defined decoding allows you to create a definition file to interpret commands and
frames that are not in the standard set recognized by the software.
Select Configuration > User Defined Decoding to open the User Defined Decoding dialog.

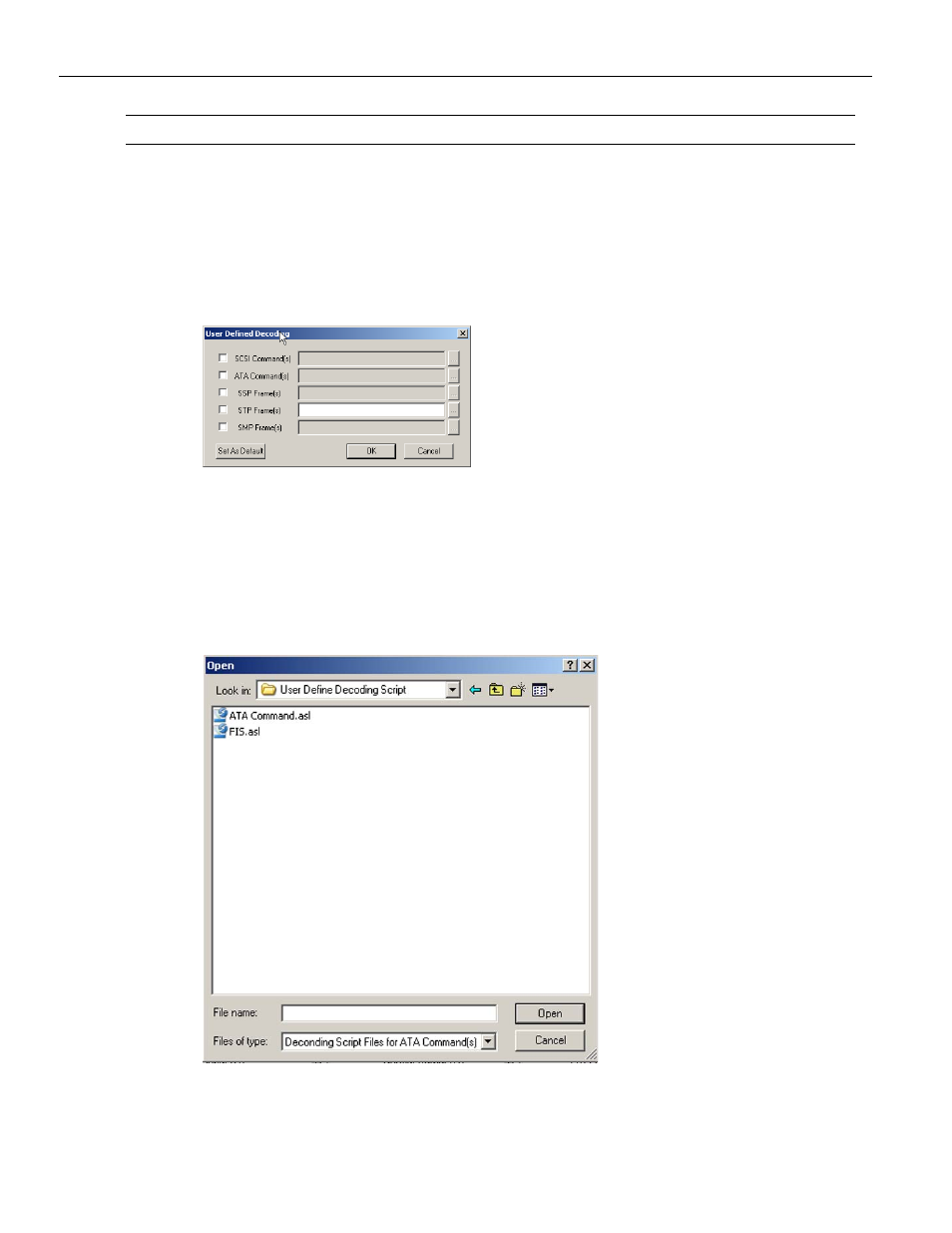

Figure 3.87: SAS: User Defined Decoding
SAS vs. SATA: SAS adds SCSI Commands, SSP Frames, and SMP Frames.
Check ATA Commands and/or STP frames. Click the ellipses next to a command type text
box to display the Open dialog. Choose an appropriate script file and click Open.
Figure 3.88: Choosing a Script File
