Easy Mode (Pre‐Defined Setups)

LeCroy Corporation

Click the down arrow next to the Address Frame Type dropdown list, scroll the list to
choose an address frame type on which to trigger, and click OK.

STP Frame (SAS only)

Double‐click STP Frame in the Patterns window of the Trigger dialog to open the FIS Type
dialog.

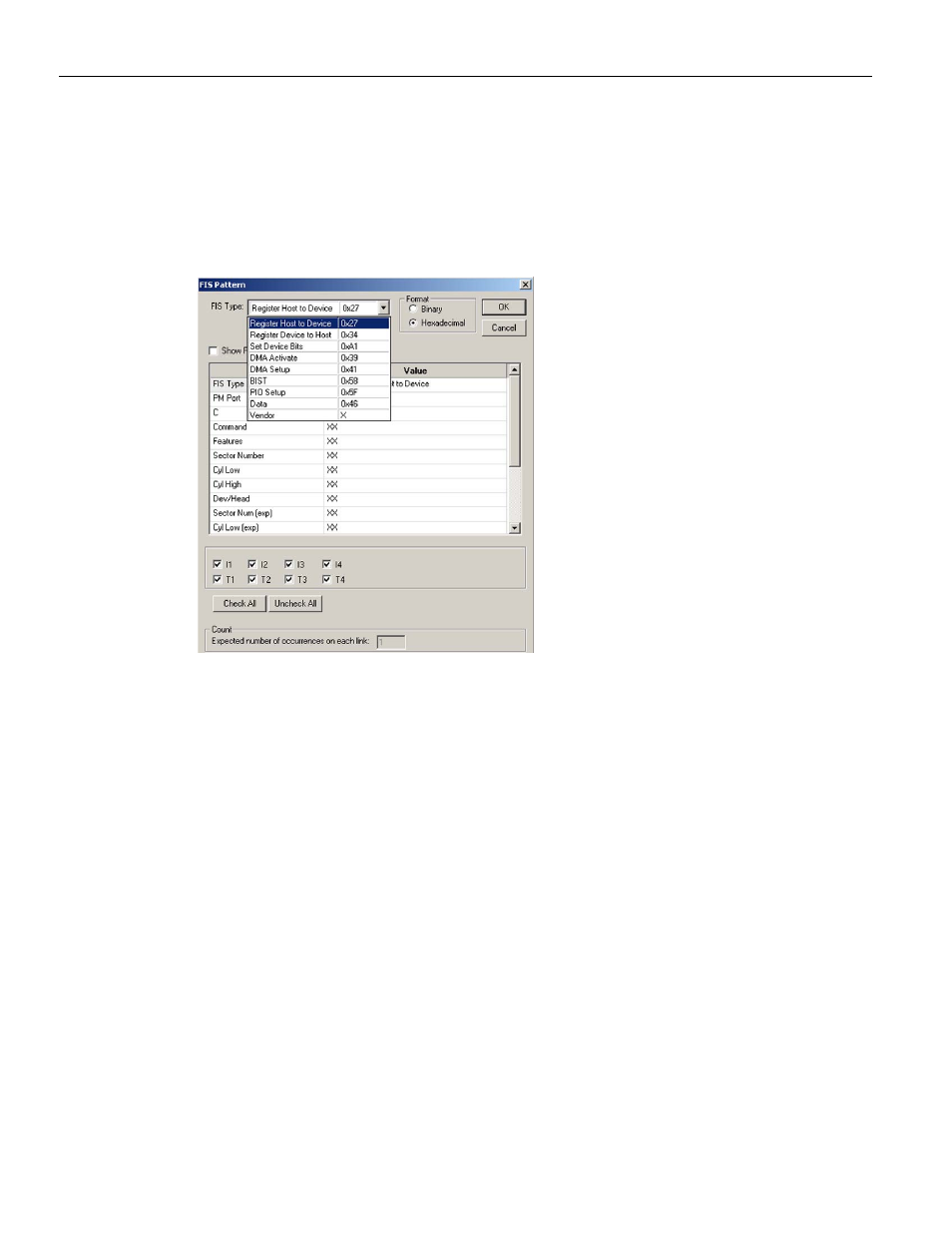

Figure 2.52: SAS: FIS Pattern Dialog

SAS vs. SATA: Not available in SATA.

Click the down arrow next to the FIS type dropdown list, scroll the list to choose an FIS
type on which to trigger, and click OK.
