LeCroy Corporation Easy Mode (Pre‐Defined Setups)
74 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Timeout
Selecting Timeout for the pattern opens the Timeout Pattern dialog.

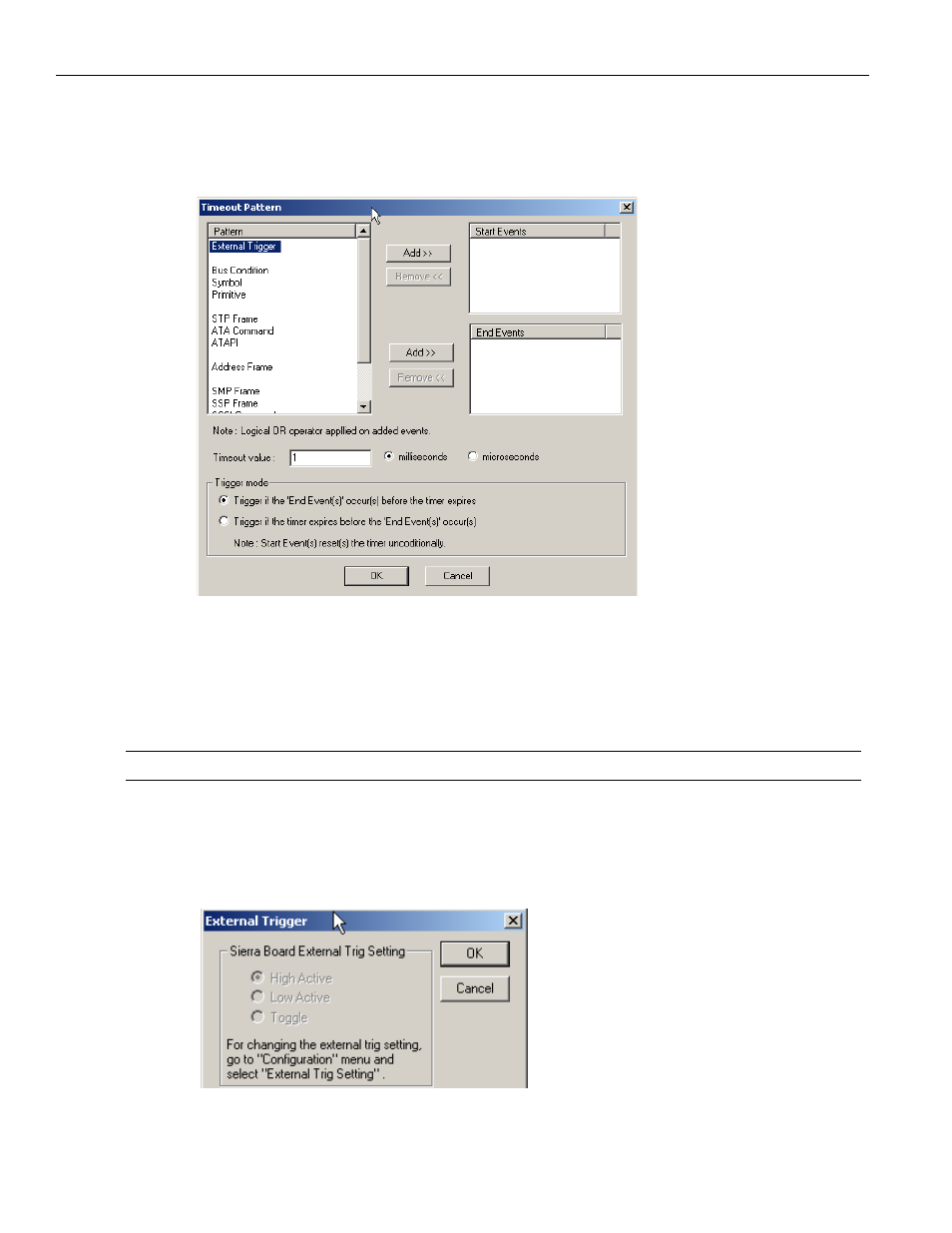

Figure 2.40: Timeout Dialog
Select a pattern for Start Events or End Events, enter a Timeout value, then select Trigger
Mode:
 If End Events occur before timer expires
 If timer expires before End Events
Note: You cannot select a Timeout pattern if you select any other pattern as the trigger condition.
External Trigger
You can trigger on an external trigger. To set up the trigger, click the External Trigger
category.
Figure 2.41: External Trigger Dialog
You cannot select an External Trigger Setting, so click OK.
