LeCroy Corporation Display Configuration
244 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Save/Load Settings
You can save the customized configuration settings in a *.cfg file by clicking the Save
button and completing the Save As procedure. To load a previously saved configuration
file, click Load and choose an appropriate file.
Set Port Alias
Port Alias allows you to assign a meaningful name to each port to assist in interpreting
the results displayed in the sample view.
To assign port names in an open sample view, select Configuration > Set Port Alias.

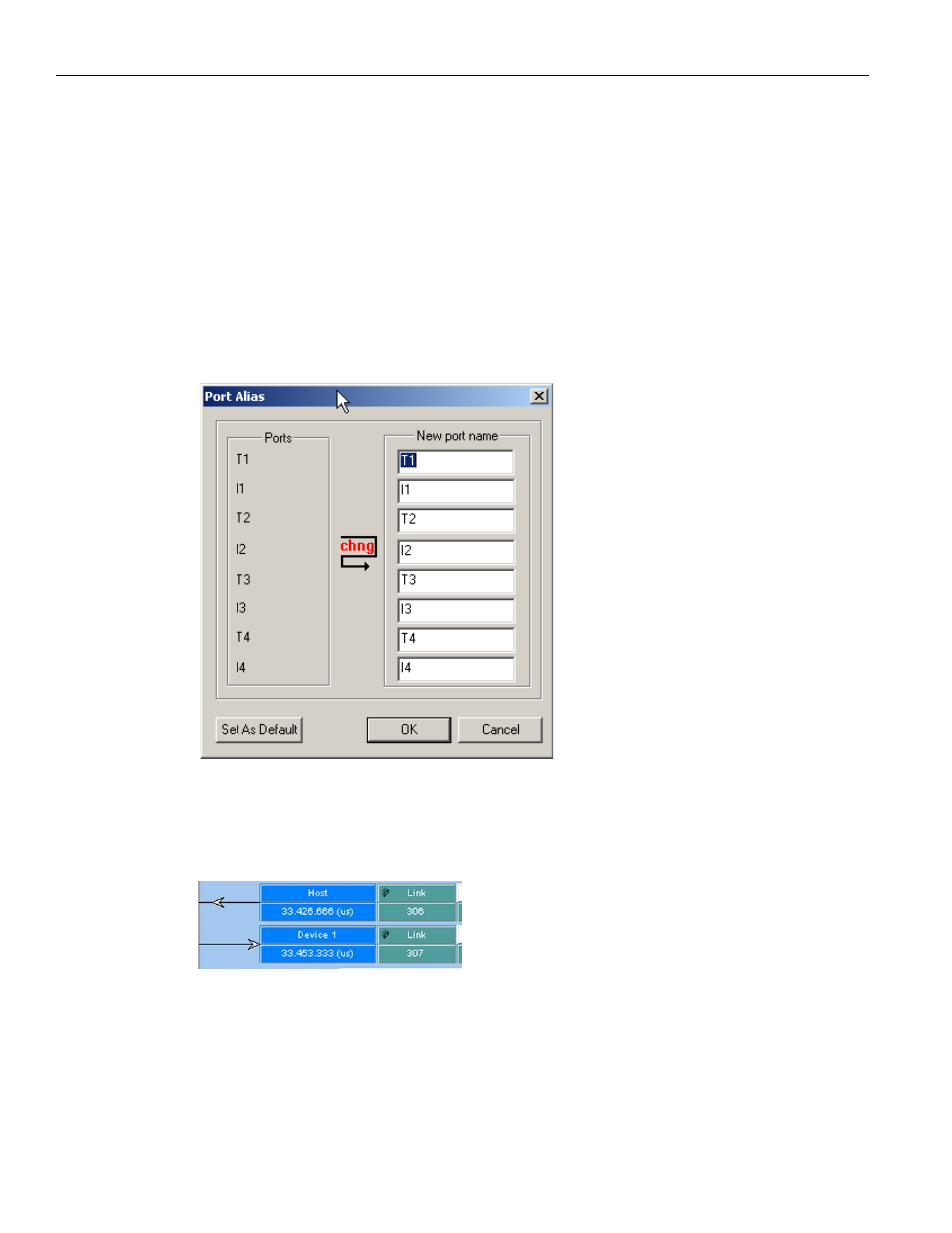

Figure 3.70: SAS: Assign Port Alias
Assign a meaningful name to each port in use and click OK. The assigned names replace
the port numbers in the sample view.
If you elect to save the capture sample file, the assigned port names are saved together
with the result, so that when you open the sample file later, the assigned names are
retained.
