Using the Device Ports Dialog
After you have finished Port Configuration (see “Port Configuration for InFusion” on
page 314 ), you use the Device Ports dialog to assign specific scenarios to ports, so that
different scenarios can run on different ports.
To assign a scenario to a port, drag and drop the scenario from any library window to the
port. The Device Ports dialog then displays the Library and Scenario on the row for that
Port/Configuration.

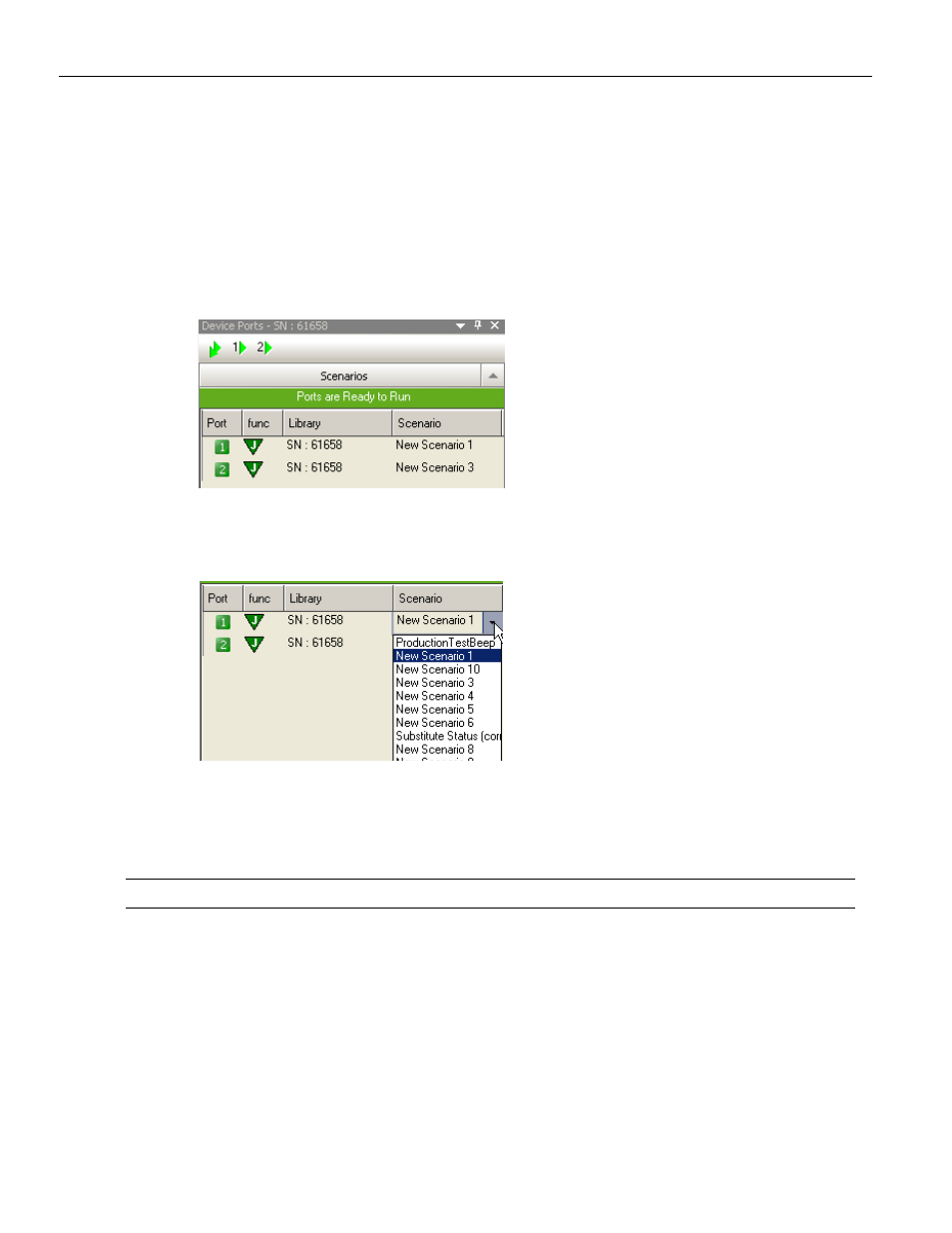

Figure 4.5: Device Ports Dialog
Alternatively, assign the scenario using the Library and Scenario drop‐down lists.
Figure 4.6: Scenario Drop-down List
After you have assigned scenarios to ports, in the first row of icons, use the first green
arrow icon to Run/Stop All Ports, or use the numbered green arrows to Run/Stop an
individual port.
Note:
A port row is grayed‐out when that port is running a scenario.
