312 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
A Device Library has Scenarios currently available in the device.
Using the buttons from left to right, you can:
 Download a selected scenario.
 Download all scenarios.
 Save a copy of the library.
 View edit a selected item.
 Delete a selected scenario.
 Assign scenario to device ports.
 Refresh the library.
 Copy
 Paste
Device Ports
If a device is connected, the software displays the Device Ports.

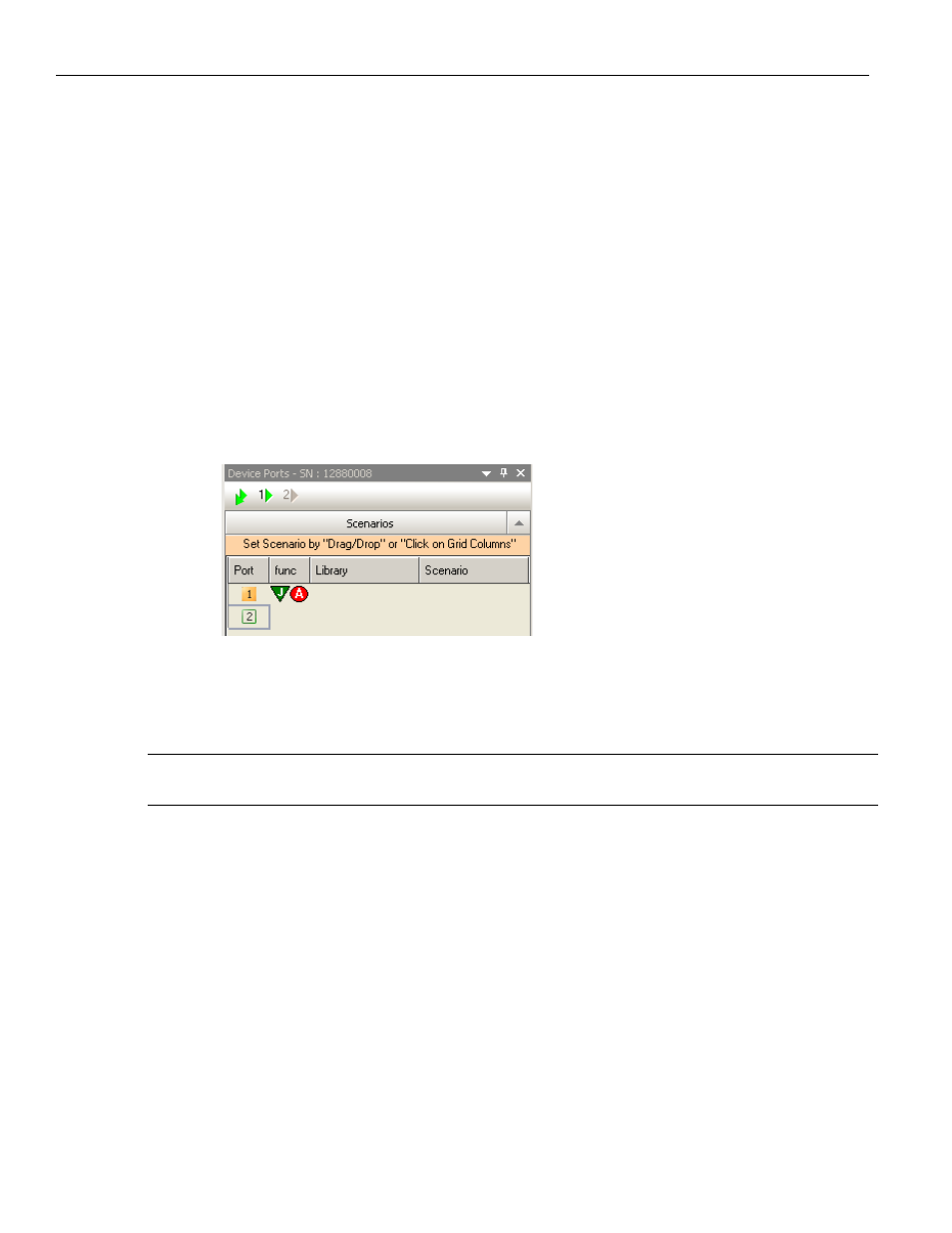

Figure 4.4: Device Ports
Using the first row of icons, you can Run/Stop All Ports or Run/Stop individual ports.
The columns display the Port, Function/Configuration, Library, and Scenario.
You can Float, Dock, Auto‐Hide, or Hide the window.
Note:
A port row is grayed‐out when that port has not been configured to be a Jammer in the
Port Configuration dialog (see “Port Configuration for InFusion” on page 314 ).
