Filter Check Condition

Checking the SCSI Command Status check box enables Check Condition for filtering.

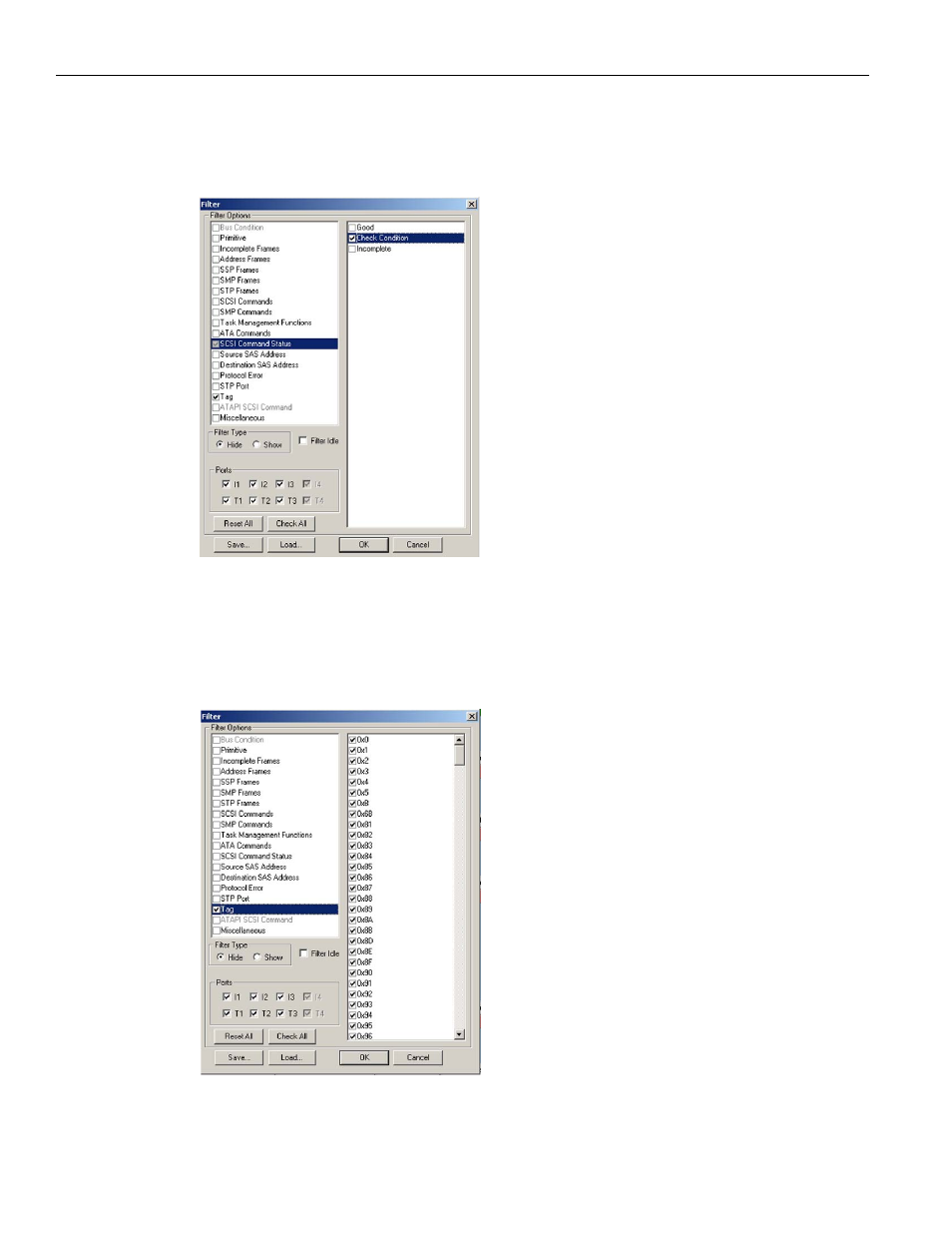

Figure 3.48: SAS: Filter Check Condition

Filter by Tag Number

Checking the Tag check box displays tags available for filtering. Check the corresponding
check boxes for tags to filter.

Figure 3.49: SAS: Filter by Tag Number
