Easy Mode (Pre‐Defined Setups)

LeCroy Corporation

Setting Trigger Conditions

To set the If and Else If trigger condition:

1. Click the Add Pattern button

for a Pattern field and choose a trigger condition

from the drop‐down list.

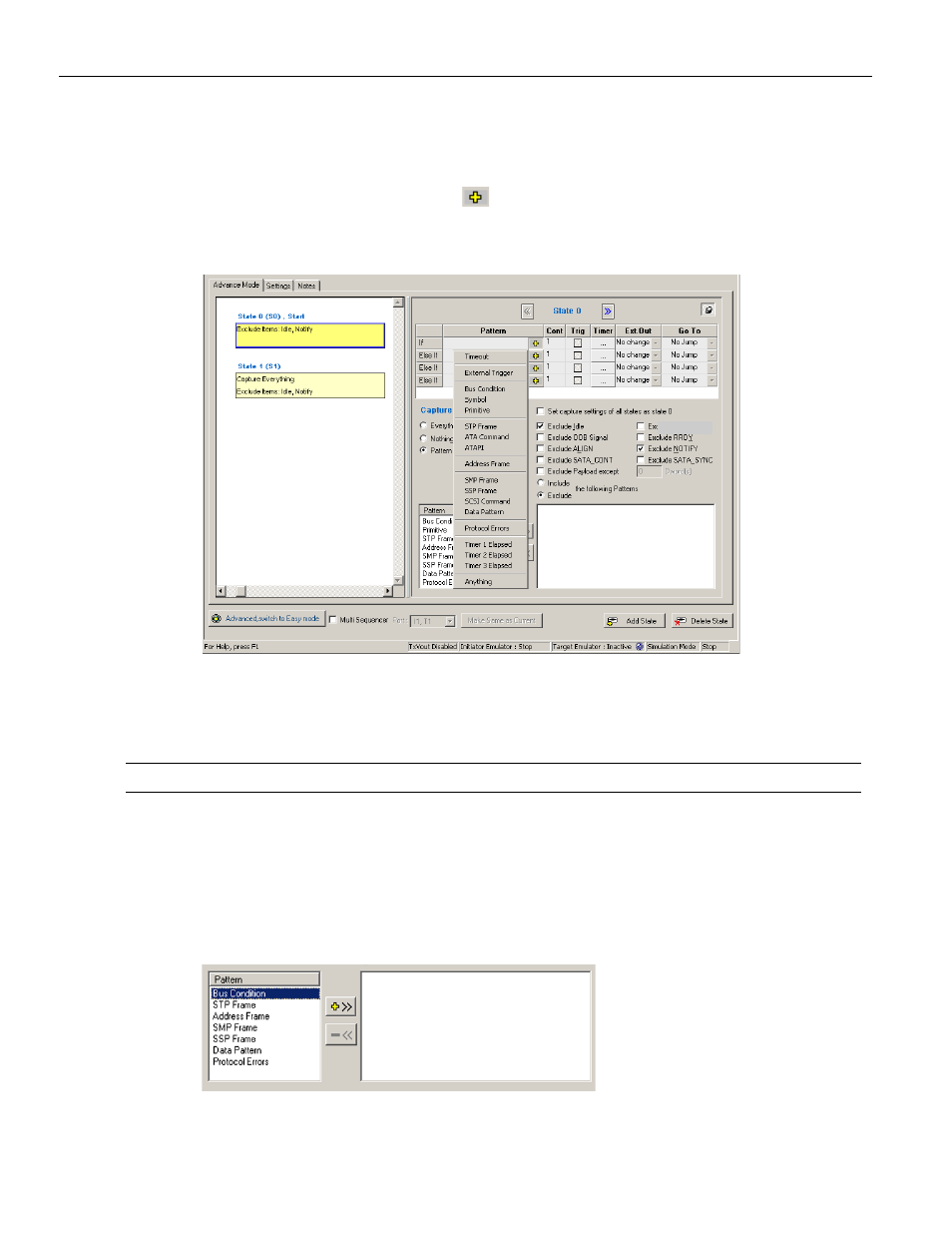

Figure 2.78: SAS: Choosing a Trigger Condition

2. Define each selected pattern in the same way as in Easy Mode, as described starting

on page 60. To use a timer, define it first.

Note:

You can set a timer for any If or Else If condition.

3. Enter a value for the number of occurrences before trigger in the Cont field, up to a

maximum of 65535 occurrences.

4. Choose a capture option: Everything, Nothing, or Pattern.
5. If you choose Pattern, you can select patterns for inclusion or exclusion. Clicking the

Pattern option enables a pattern definition dialog.

Figure 2.79: SAS: Choosing a Pattern
