Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 123
Exercise and Capture LeCroy Corporation
Add a Label
Add a label to any command, to use for conditional and unconditional jumps. Click the
command to label, and insert the Label instruction. You can also insert a label by right‐
clicking a command and choosing Add Label.

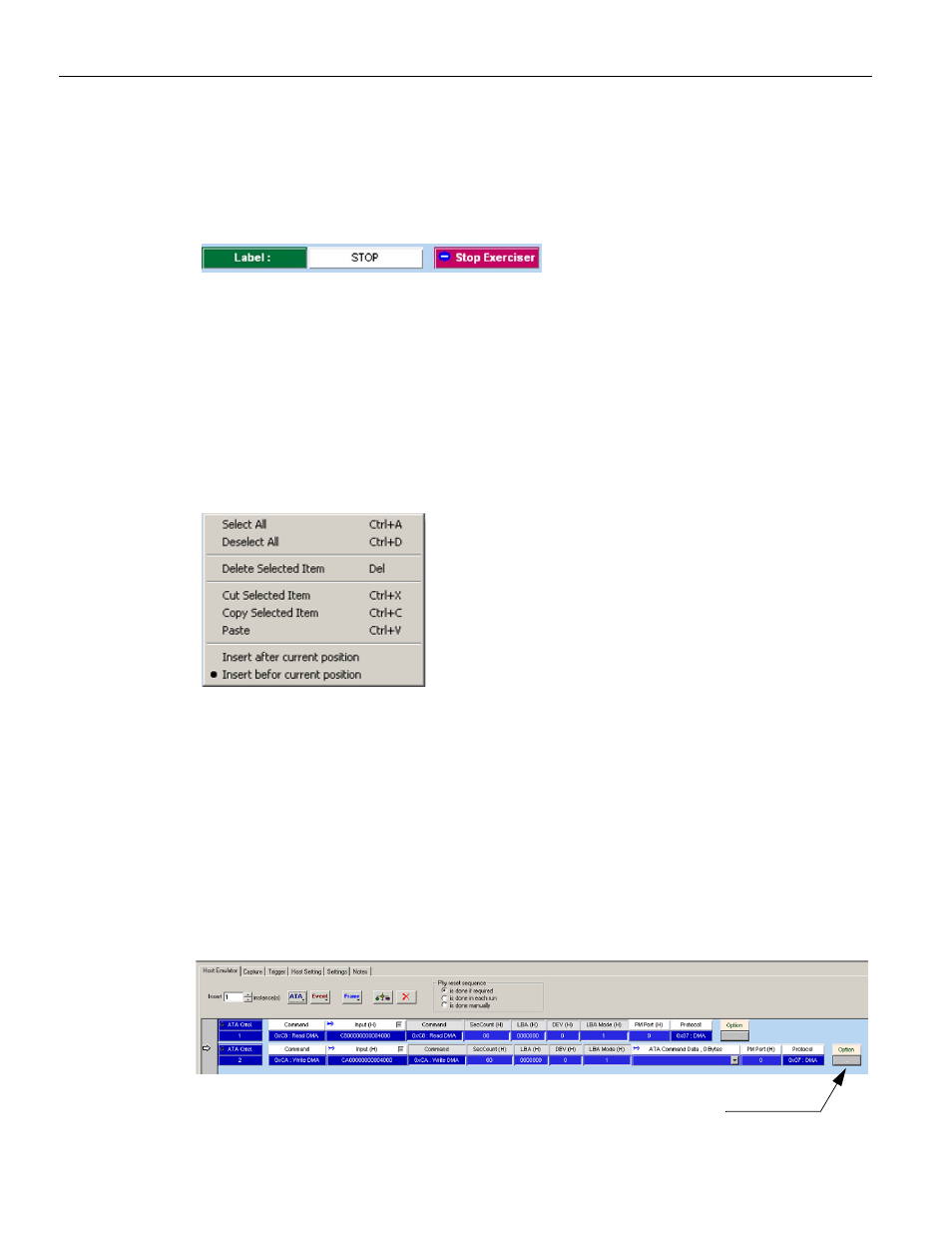

Figure 2.112: Label
Labels are automatically labeled as Label# sequentially as they are added. However, you
can assign them meaningful names such as STOP and START.
Instruction insert
You can set the instruction to insert before or after a command by setting the insertion
mode. To set the insertion mode, right‐click in the initiator page and choose Insert before
current position or Insert after current position.
Figure 2.113: Instruction Insert
Phy Reset Sequence and Identification
The system performs this when required, by default, but you can perform it manually or
on each run.
Sample Host Emulator Program (SATA only)
Figure 2.114 shows a simple completed SATA Host Emulator program.
Option button
