LeCroy Corporation Statistical Report
264 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Statistical Report
Whenever a captured sample is in the Sample Viewer, a Statistical Report selection in the
Report menu and a Statistical Report Button on the viewer toolbar are enabled. You can
create a Statistical Report for the entire capture or select a portion of it.
To display a Statistical Report, click the Statistical Report button on the viewer
toolbar or select Report > Statistical Report to display the Select Statistical Report Range
dialog.

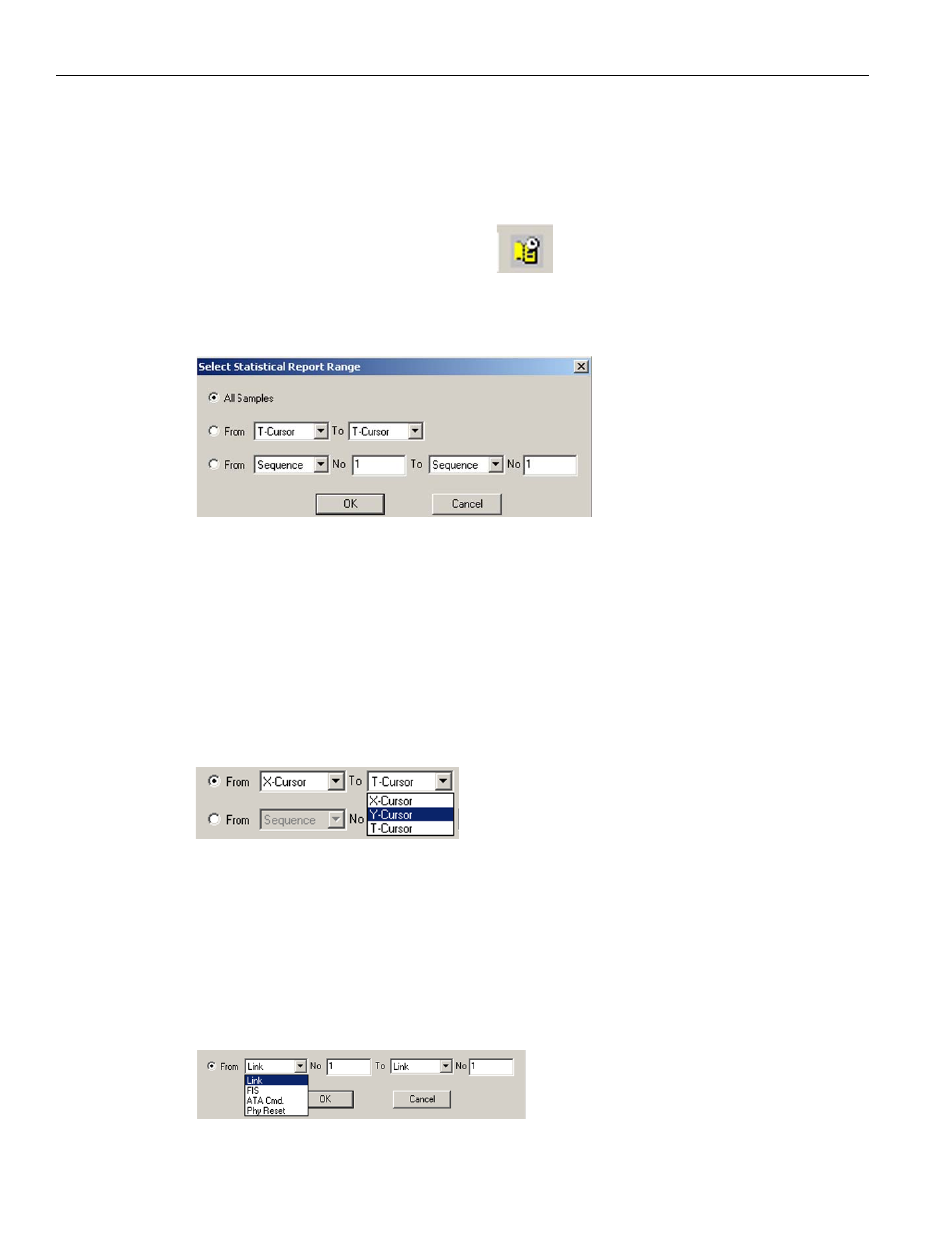

Figure 3.91: Statistical Report Range Dialog
The default statistical report has All Samples. You can set a specific Statistical report range
between defined cursor positions or events.
Report between Cursors
Click the option button next to the From cursor selection drop down list. Then click the
From down arrow and choose the 1st cursor, click the To down arrow to choose the 2nd
cursor, and click OK. The resulting report has only the capture between the cursors.
Figure 3.92: Report between Cursors
Report between Events
Click the option button next to the From the event selection dropdown list, click the
From down arrow to choose the 1st event, then enter the number of its occurrence. Next
click the To down arrow to choose the 2nd event, then enter the number of its
occurrence.
Figure 3.93: SATA: Report between Events
