Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 47
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
SATA Software Menus and Toolbar
The SATA software has the following menus and main toolbar.

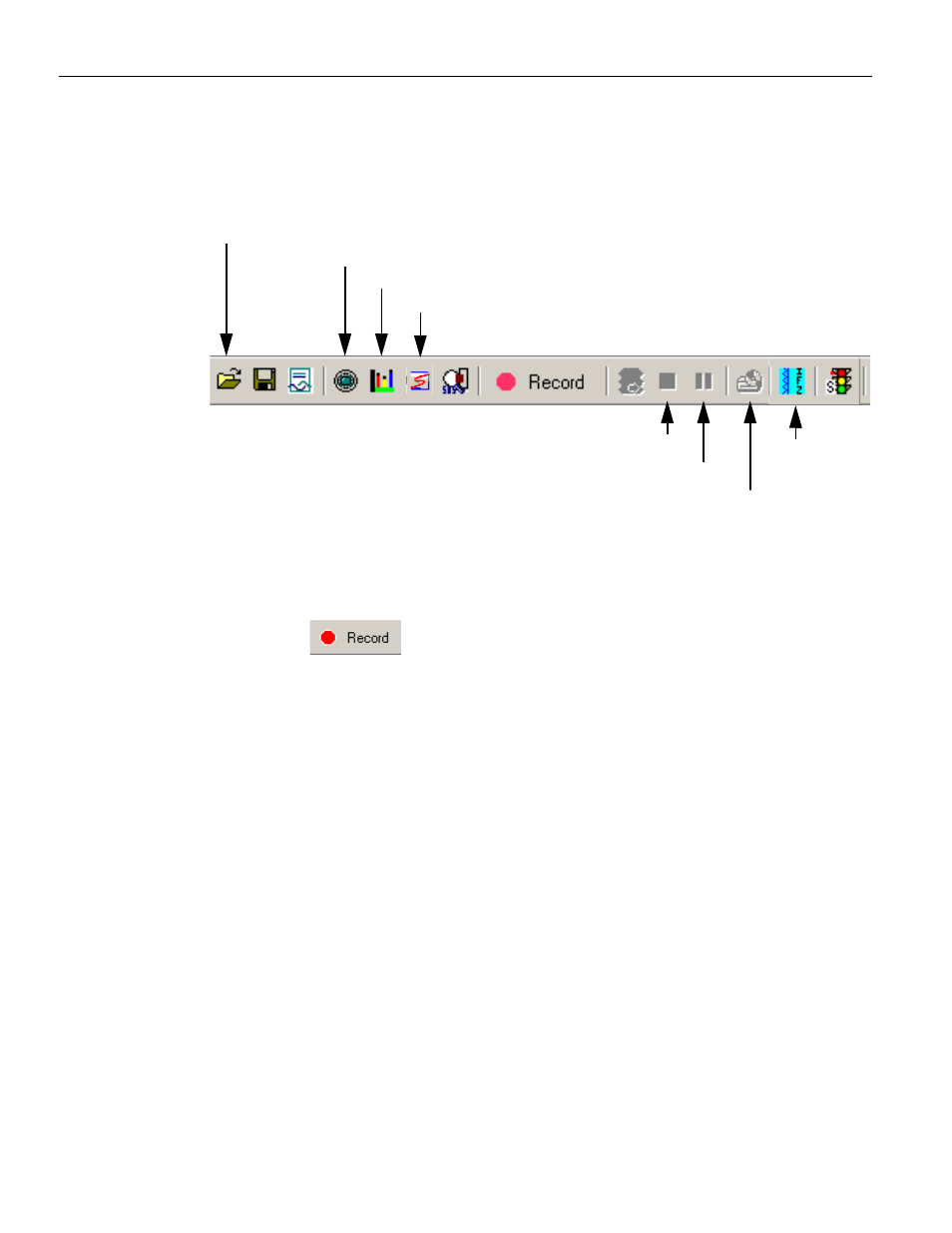

Figure 2.4: SATA: Software Menus and Toolbar
Run Hardware
To get an immediate overview of the bus traffic to and from your Analyzer:
1. Click the Record button.
2. The analyzer begins filling the defined memory buffer with traffic on the bus. After
the traffic fills the memory buffer, the traffic is uploaded to the viewer and the
Packet View display opens. Packet View is the default display. However, you can
view results in any of the different views by selecting View on the menu bar and
choosing the desired View.
Open Sample File
Open Last Saved Protocol Analyzer
Open Last Saved Performance Analyzer Project
Open Last Saved Device Emulator
Abort Capturing Without Saving Sample File
Activate/Deactivate Device (Target Emulation)
Open Find Device Dialog
Stop Hardware
Trainer
InFusion
Upload Manager
