Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 187
Target and Device Emulation LeCroy Corporation
1. In the Host Initialized Power Management area, choose whether to support the
report in the Identify page.
2. Specify the response type for PMREQ_P and PMREQ_S, the delay, and Minimum
Number of Response Primitives.
3. In the Device Initiated Power Management area choose whether to support the
report in the Identify page.
4. Define start event by choosing Standby timer expires, STANDBY command
executes, or Link layer remains in IDLE state more than [XXX] ms.
5. Specify time for Abandon request and Wake up after and enter the Standby timer
interval.
NCQ Command Settings Tab

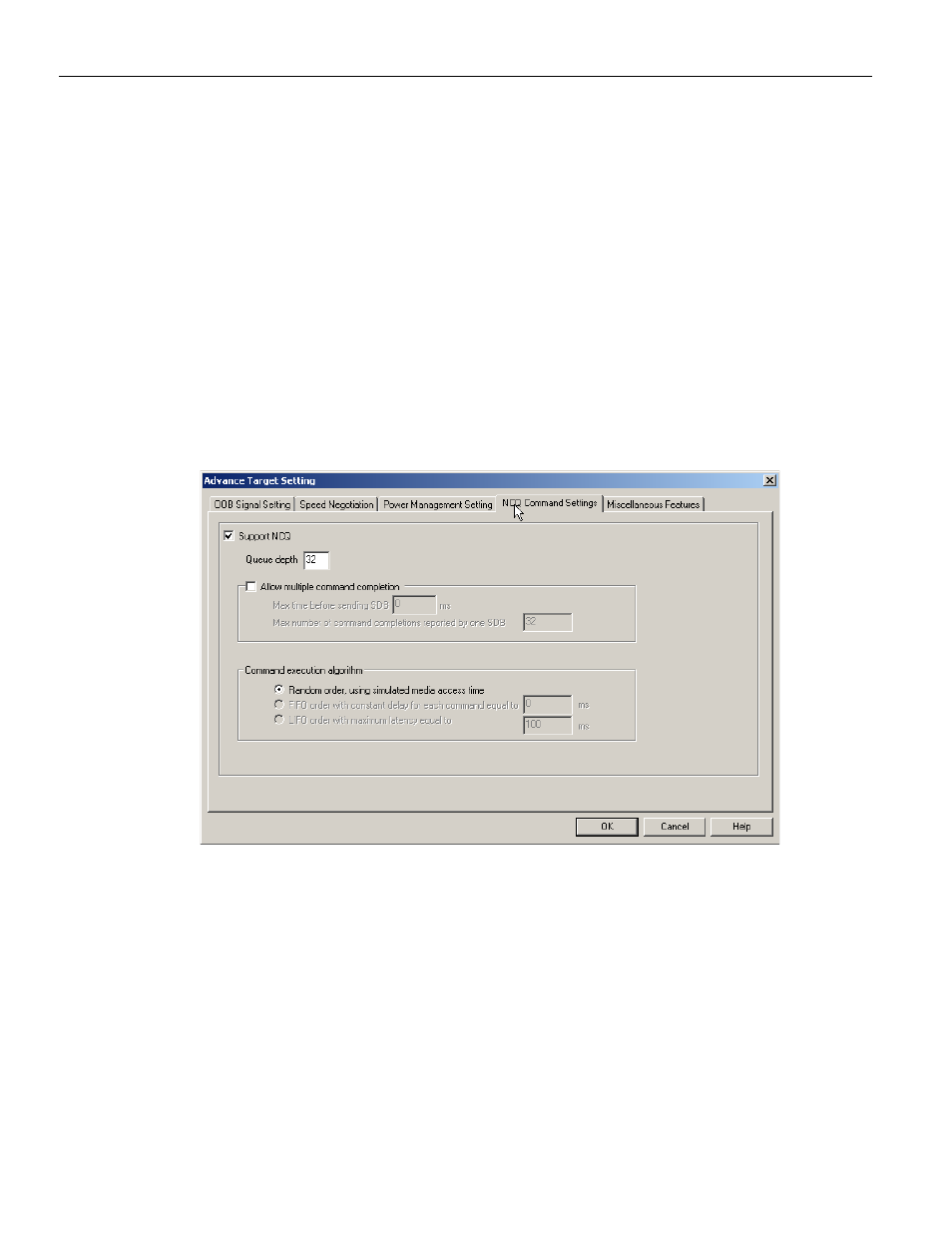

The following screen capture shows the NCQ Command Settings tab in the Advanced
Target Settings dialog.
Figure 2.194: NCQ Commands
To enable NCQ commands, perform the following steps:
1. Check Support NCQ and specify Queue depth.
2. Optionally check Allow multiple command completion and enter values for Max
time before sending SDP and Max number of command completions reported by
one SDB.
