Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 89
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
Sequential Trigger Mode
In the Sequential Trigger mode, triggering occurs whenever the system detects a specific
sequence of patterns. The order in which you define triggering patterns establishes the
sequence. You must define at least two patterns to enable the selection of the sequential
trigger mode.
Note: Primitives and Symbols or Frames occurring very close together on different ports cause an error
in triggering.
To define a triggering sequence, check the Define Sequential Trigger Mode check box and
enter triggering patterns in the sequence in which to trigger.

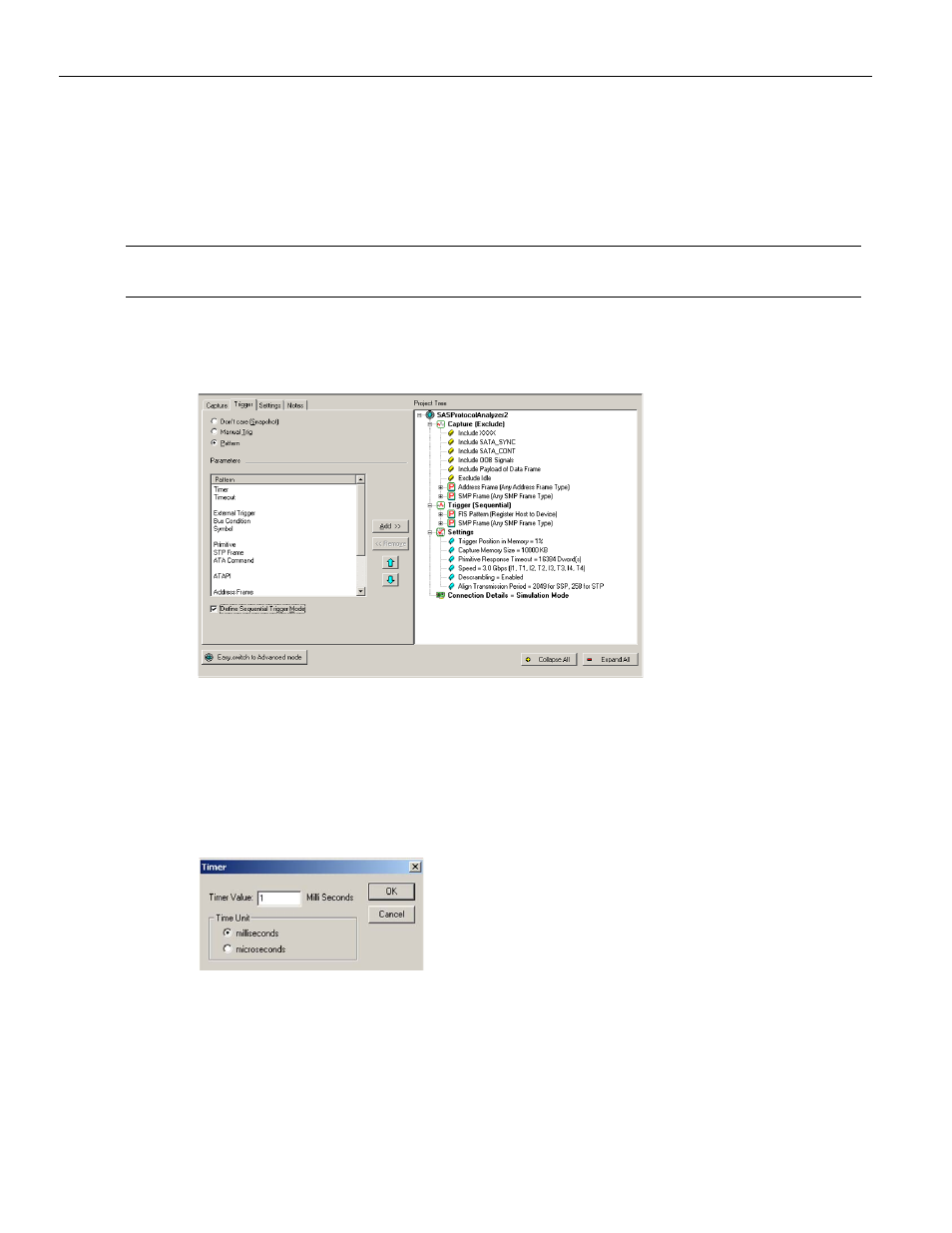

Figure 2.62: SAS: Select Sequential Trigger Mode
Timer
The sequential triggering mode offers the option of triggering on a timer or inserting a
timer in the triggering sequence to delay detection of the next pattern in the sequence.
To insert a timer in the trigger list, double‐click Timer to open the Timer definition dialog.
Enter a Time Value, choose the Time Unit, and click OK.
