LeCroy Corporation Easy Mode (Pre‐Defined Setups)
46 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Exclude RRDY (SAS only)
Check this to exclude RRDY primitives from the data capture.
Exclude NOTIFY (SAS only)
Check this to exclude NOTIFY primitives from the data capture.
Exclude Idle
Check this to exclude Idles from the data capture.
Define different patterns for pre‐trigger and post‐trigger data captures
Replaces the Capture tab with a Pre‐Trigger Capture tab and a Post‐Trigger Capture tab.
SAS Software Menus and Toolbar
The SAS software has the following menus and main toolbar.

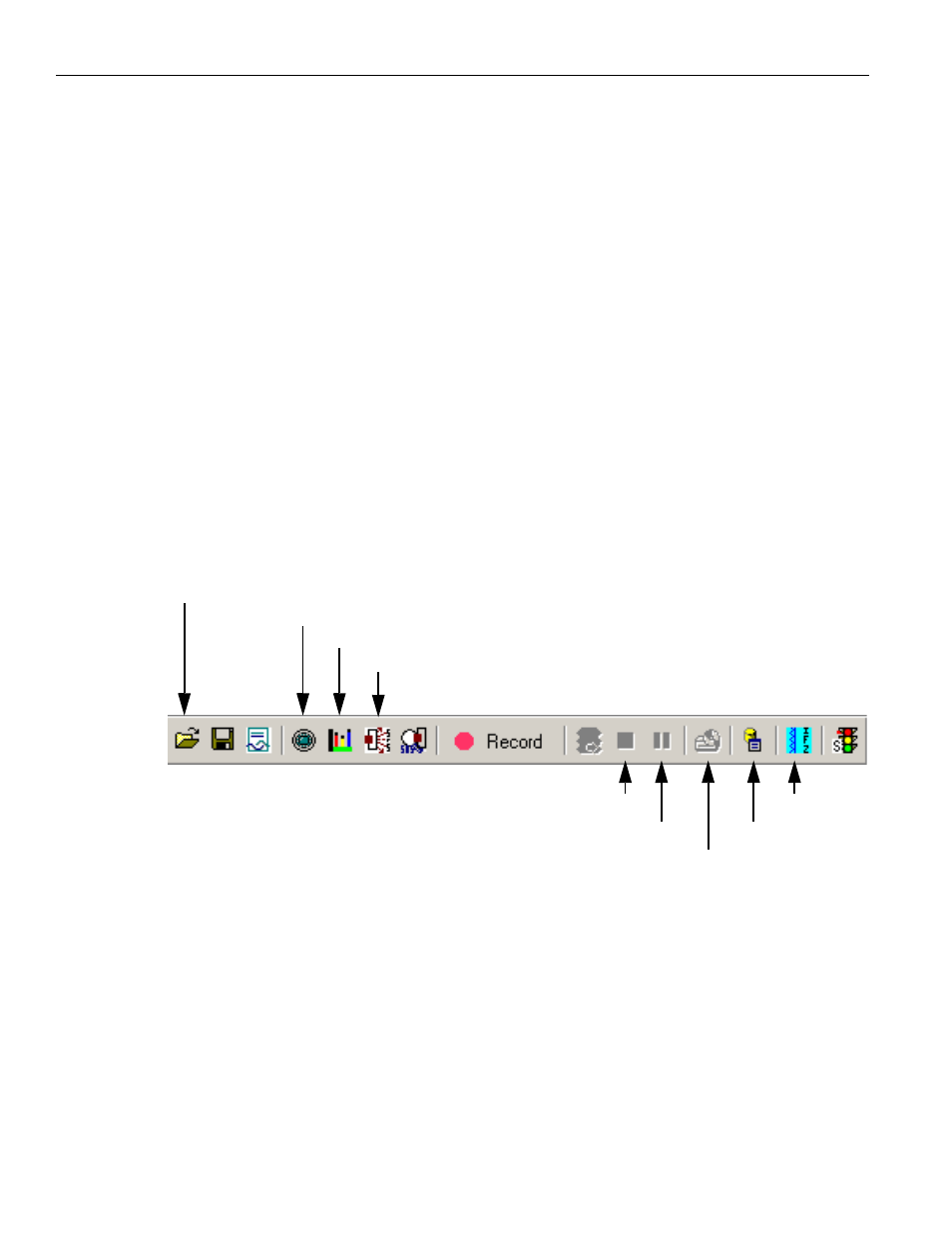

Figure 2.3: SAS: Software Menus and Toolbar
Open Sample File
Open Last Saved Protocol Analyzer
Open Last Saved Performance Analyzer Project
Open Last Saved Target Emulator
Abort Capturing Without Saving Sample File
Activate/Deactivate Device (Target Emulation)
Open Find Device Dialog
Stop Hardware
Data Block
Trainer
InFusion
Upload Manager
