LeCroy Corporation Exercise and Capture
128 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
3. Click File and then choose Export to Initiator Emulator or Export to Host Emulator .

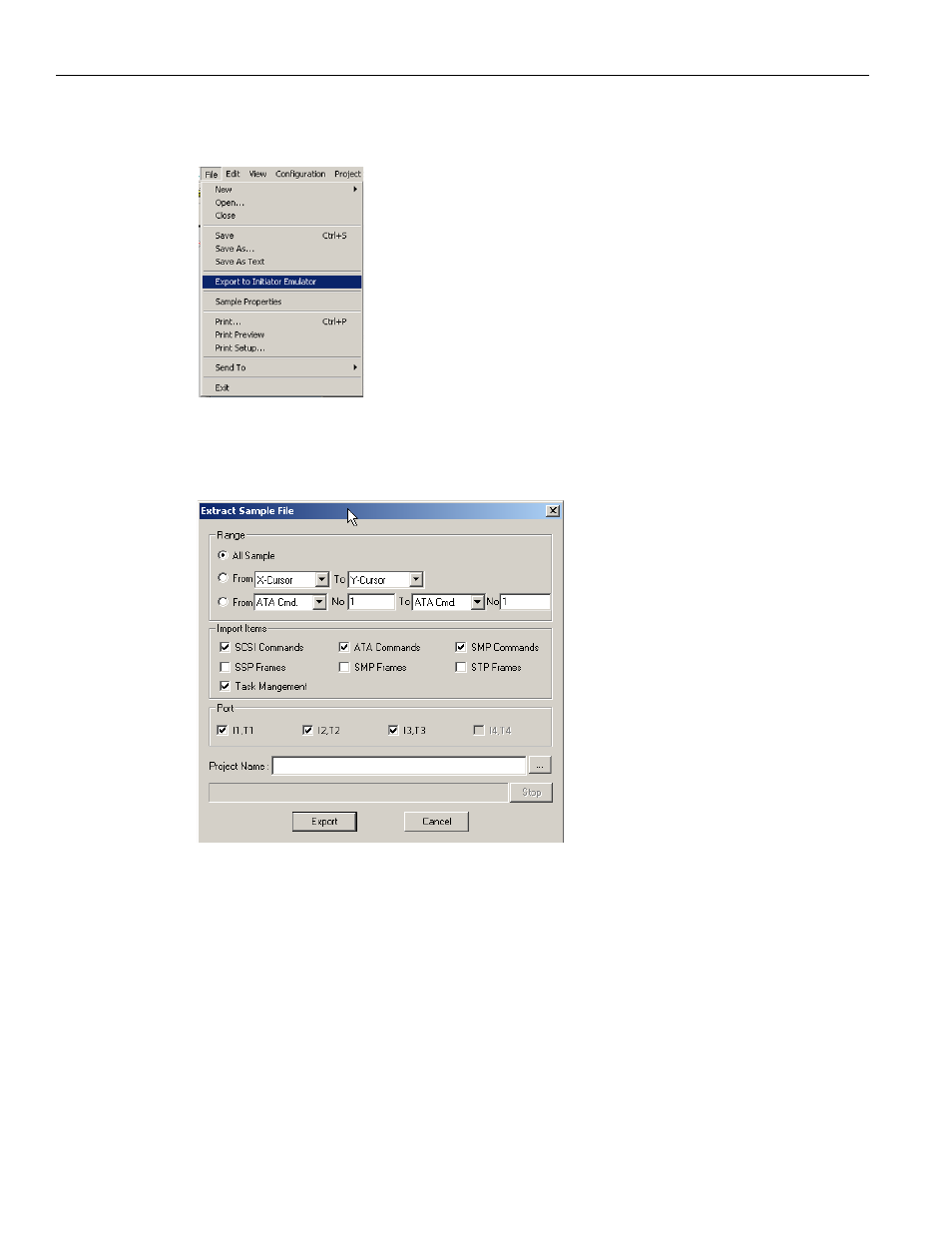

Figure 2.120: SAS: Export to Initiator Emulator
This displays the Extract Sample File dialog.
Figure 2.121: Extract Sample File Dialog
4. Click the ellipses next to the Project Name address bar and select an existing *.sac
or *.stc file.
5. Choose an export range and item, Command, or FIS, then click Export.
