User-Defined Commands Tab
To create command(s) specifically for your application, click the User Defined Commands
tab to display the command definition dialog.

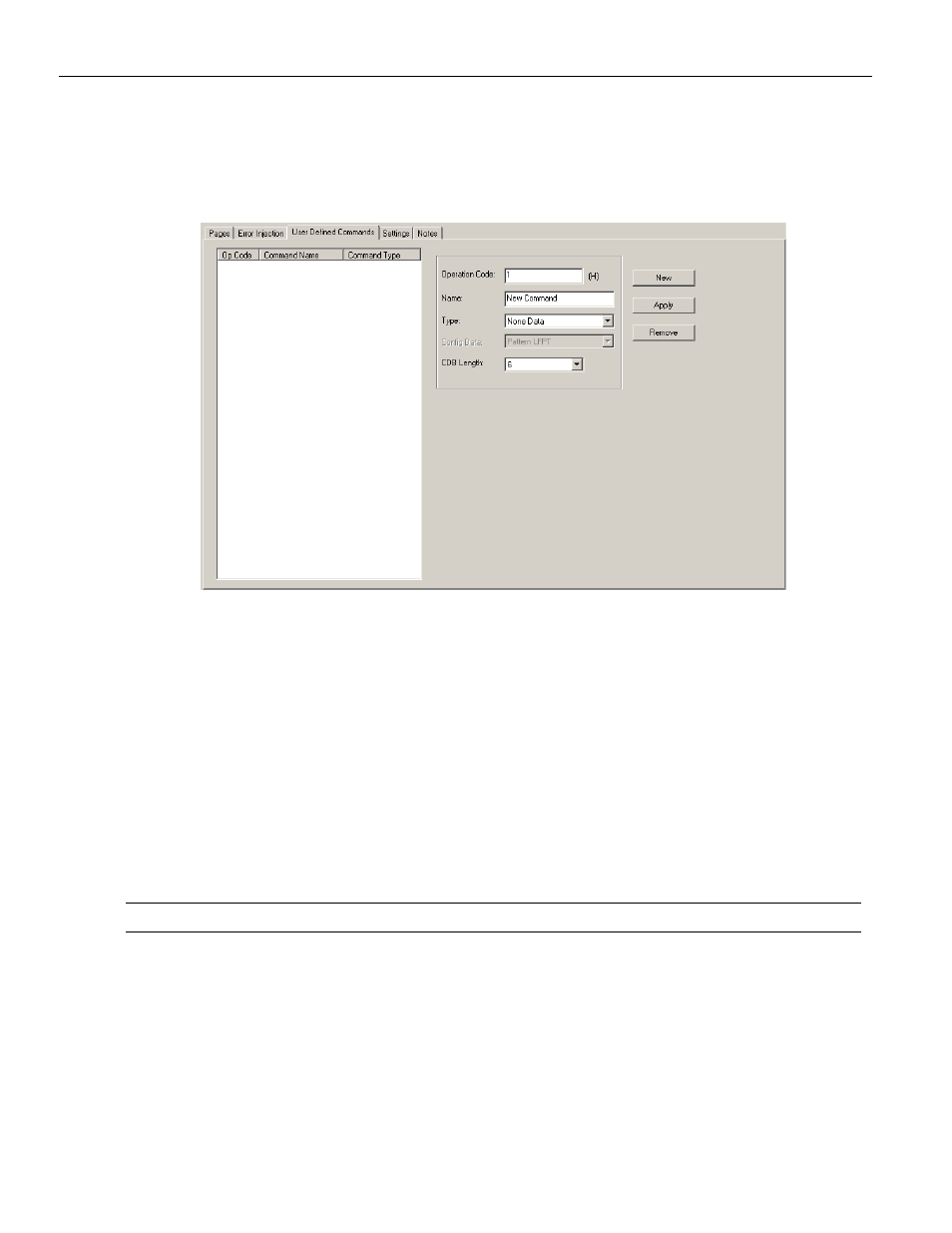

Figure 2.185: SAS: Command Definition Dialog
To define a command:
1. Enter an Operation Code and a Name in the corresponding text boxes.
2. Click the down arrow on the Type combo box and choose a command type.
3. For command types requiring configuration data, click the down arrow on the
enabled Config data: combo box and choose appropriate configuration data.
4. Enter the CDB length: 6, 10, 12, or 16.
5. When done, click the New button.
6. The defined command appears in the command name window.
7. To make changes to a previously defined command, highlight the command, make
the changes, and click Apply.
Note: After creation, the User‐Defined commands appear in the Event Selection dialog.
