Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 201
Switching Views LeCroy Corporation
Show All Data
To display all captured data, click the data expand toggle arrow in a data field, to examine
the data in detail.

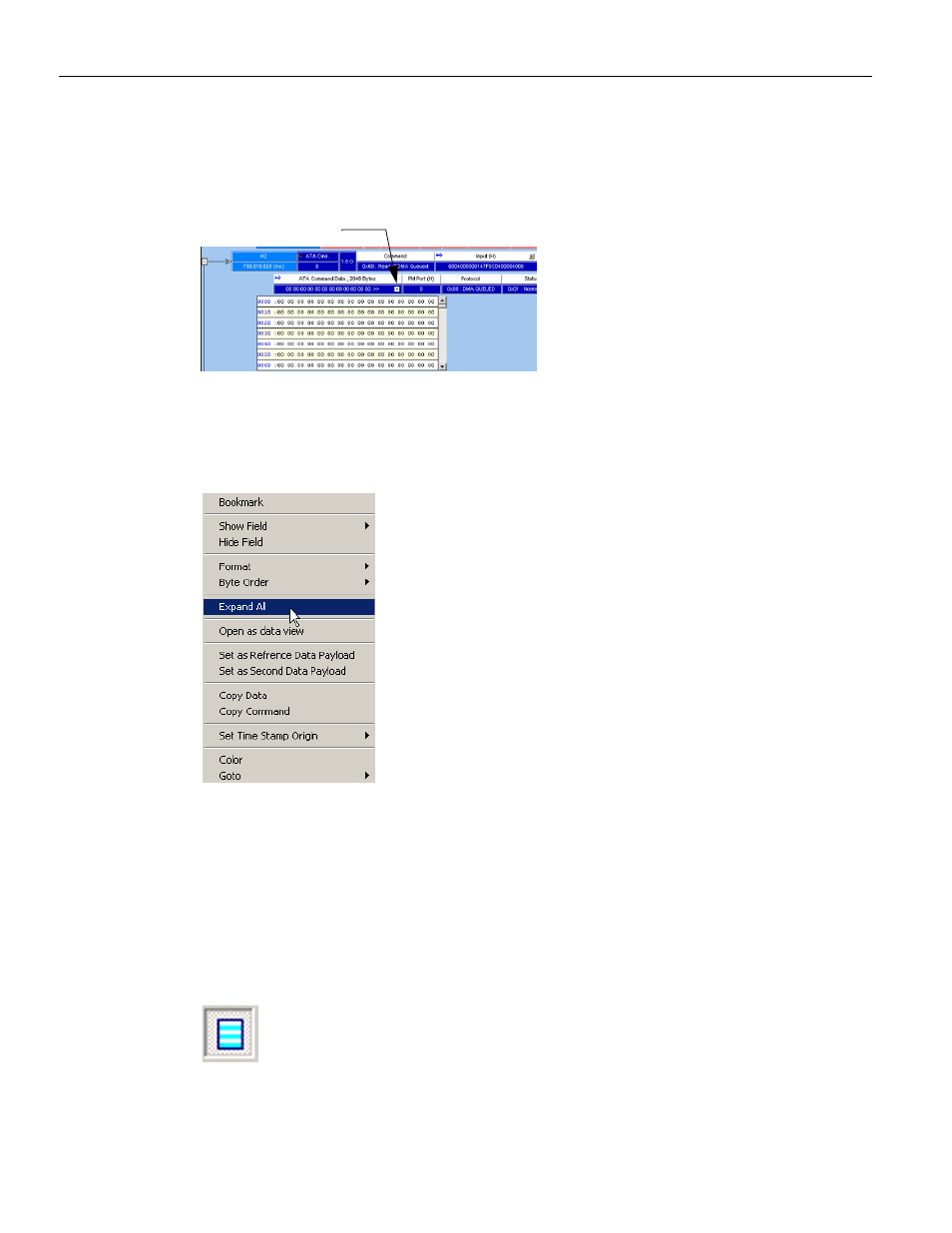

Figure 3.20: Show All Data
You can expand or collapse all data fields globally. To expand all data fields, 
right‐click the mouse in a data field and choose Expand All.
Figure 3.21: Expand All
To collapse all fields, right‐click the mouse in a data field and choose Collapse All.
Field List View
Whenever an additional view (such as Text View) displays, you can display a Field List
View, which displays field information in a list format.
To open a Field List View of the current capture, select View > Field List View or click the
button on the View Type toolbar. See Figure 3.22 on page 202 .
Data expand toggle
