Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 59
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
Choose a Parameter
To choose a parameter for capture from any of these categories, highlight the category in
the parameter window and click the Add>> button. This opens selection dialogs for each
of the categories, displaying all parameters for that category. All of the patterns added
appear in the project tree.
Exclude Patterns
Check this box to allow capture of everything except the patterns added to the
Project Tree. When you check this box, the system adds the Primitive category to the
parameter window and enables Exclude Idle.

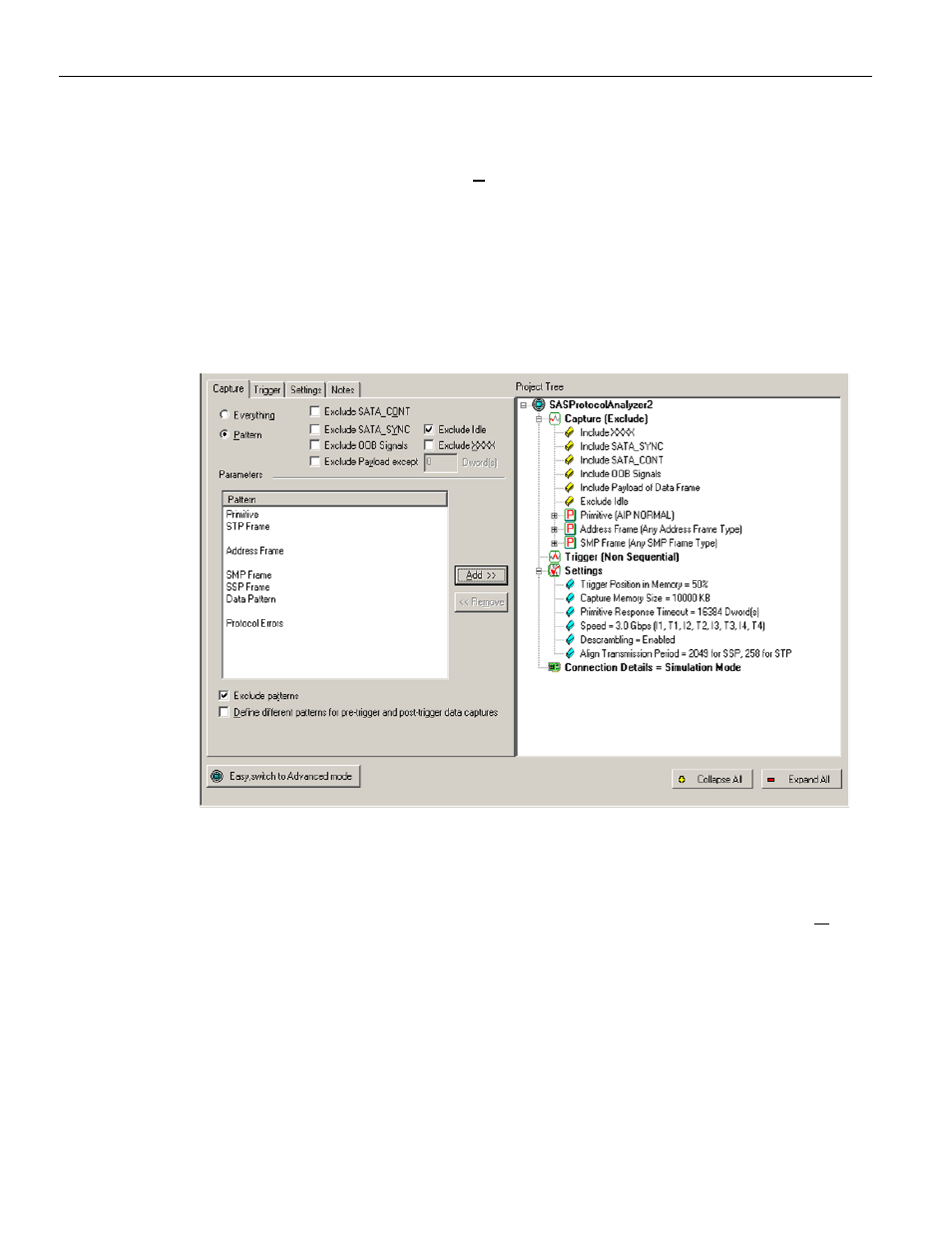

Figure 2.17: SAS: Exclude Patterns Checked
SAS vs. SATA: SATA Dialog replaces “Exclude SATA_CONT” with “Exclude CONT” and
“Exclude SATA_SYNC” with “Exclude SYNC”. SATA Dialog has different Pattern Parameters.
To remove an item from capture, highlight it in the Project Tree and click the <button.
Pre- and Post-Trigger Data Capture
You can define one set of patterns for capture prior to the occurrence of a trigger and
another set of patterns for capture after the occurrence of a trigger. The selections and
setup procedure is the same for both, the Pre‐Trigger capture and the Post‐Trigger
capture. To define different patterns for pre‐trigger and post‐trigger data capture, check
Define different patterns for pre‐trigger and post‐trigger data capture to enable the
Post‐Trigger Capture tab.
