LeCroy Corporation Easy Mode (Pre‐Defined Setups)
60 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

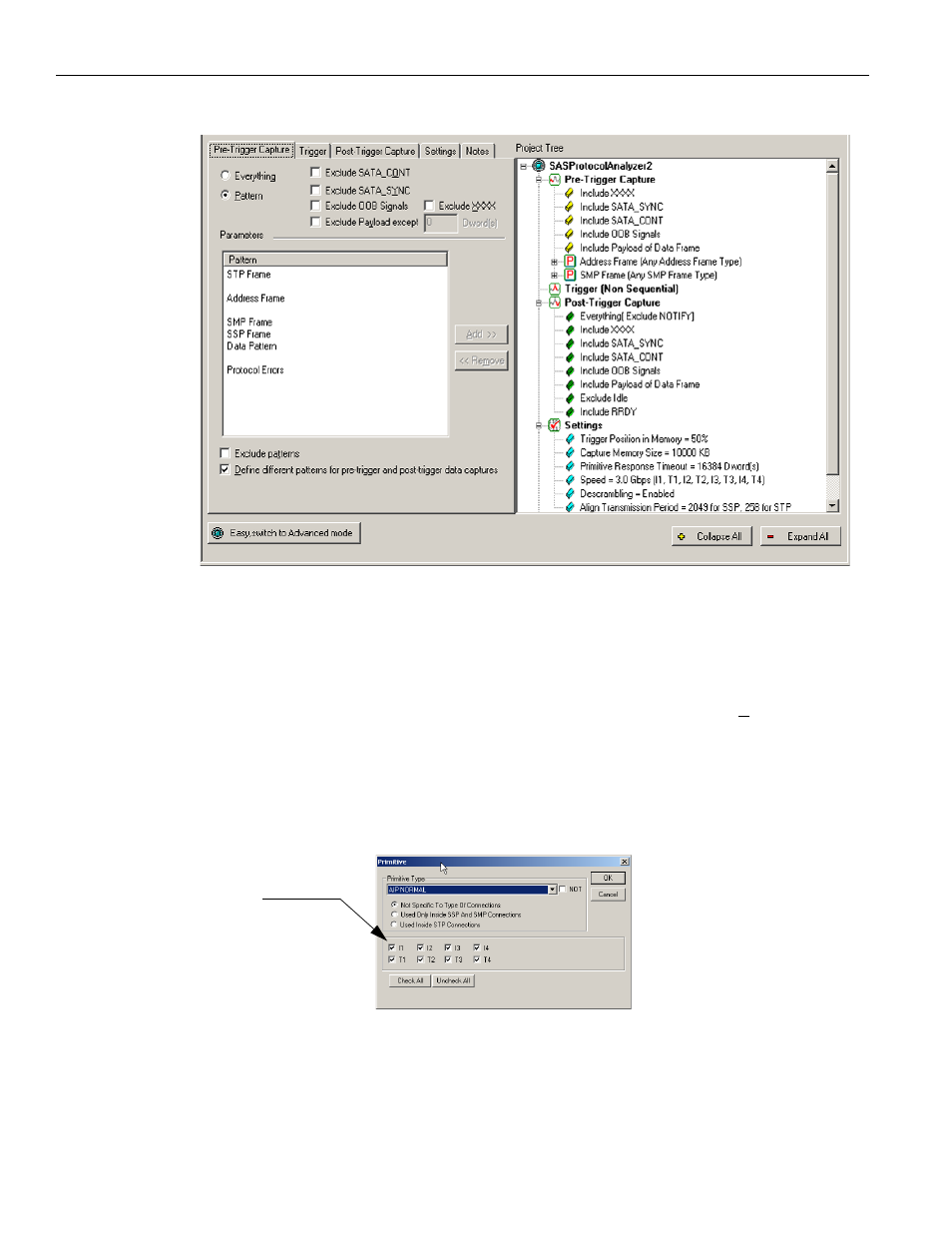

Figure 2.18: SAS: Post-trigger Capture Dialog Enabled
SAS vs. SATA: SATA Dialog replaces “Exclude SATA_CONT” with “Exclude CONT” and
“Exclude SATA_SYNC” with “Exclude SYNC”. SATA Dialog has different Pattern Parameters.
Defining Patterns
To select an item for capture, either highlight the category and click the Add>> button or
double‐click the category to open a corresponding definition dialog. You can define
patterns for specific ports by checking or unchecking Port ID.
Primitive
Double‐click Primitive (available only if you check Exclude Patterns) to open the Primitive
selection dialog.
Figure 2.19: SAS: Primitive Dialog
SAS vs. SATA: SATA Dialog has no radio buttons and has different drop‐down options.
Click the down arrow next to the Primitive drop‐down list box, choose a Primitive to
exclude, and click OK. Repeat for additional Primitives.
Data Pattern
Port ID.
