LeCroy Corporation Exercise and Capture
112 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Adding Initiator or Host Emulator Commands
Adding an ATA Command
Click the Insert ATA Command button, click one of the command categories, and choose
a command.

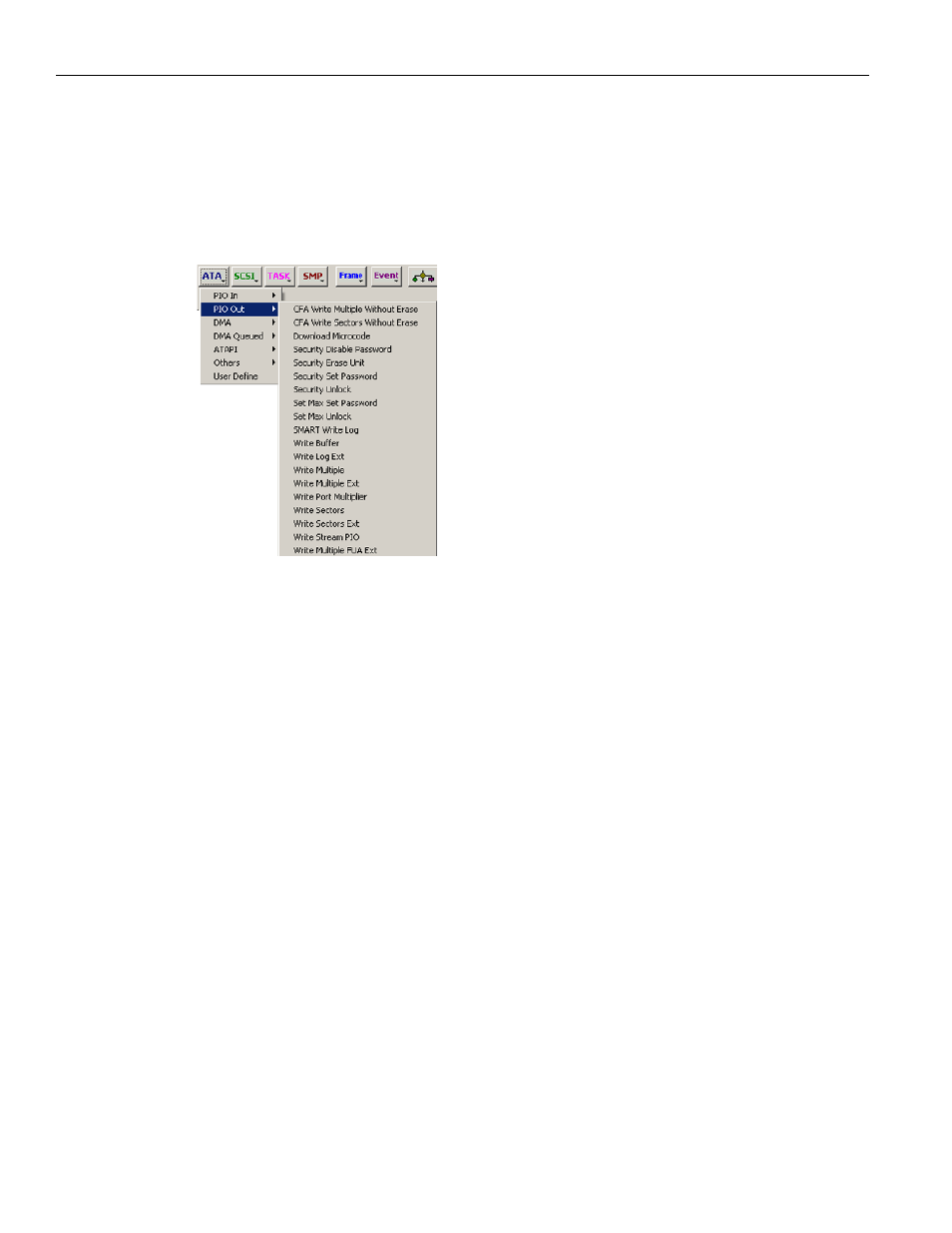

Figure 2.89: ATA Dropdown List
ATA Commands:
PIO In
PIO Out
DMA
DMA Queued
NCQ
ATAPI
Smart (see below)
Non‐Data
Others
User Defined
Smart Commands (SATA only)
To enable smart commands, click the Settings tab to open the Settings dialog, click the
Advanced button to open the Advanced Target Setting dialog, go to the Miscellaneous
Feature tab, check Support smart feature set, and check the specific features to enable
them (see
“Miscellaneous Features Tab” on page 188 ).
Note about Payload Data file: The software refreshes the Payload Data file
automatrically, so when you select a Payload Data file, you get the latest version.
For the SPC4 SEND DIAGNOSTIC command, if you have selected the non‐default path to
the development directory on the Software Settings page, that path is shown when you
select a Payload Data file.
