Sierra Trainer Menus LeCroy Corporation
Setup Menu
Update Sierra Device: See “Update Sierra Device” on page 257 .
 Port Configuration: You can select different combinations of Trainer with Ana‐
lyzer and Jammer. When running two different applications on the ports, you
must set the same port configuration in both of them. See
“Ports Configuration”
on page 96 . The following describes possible configurations:
 Analyzer and Trainer on same port: You can generate initiator/target traffic and
also capture the traffic generated.
 Analyzer and Trainer on same port, and Analyzer and Trainer on another port:
You can generate initiator/target traffic and also capture the traffic generated on
two ports.
 Trainer on one port, Analyzer on another port, and Analyzer on a third port:
Trainer is run on a port generating initiator/target traffic and two port Analyzers
run on two other ports capturing the traffic of those ports.
 Trainer on two ports, and Analyzer on two ports: Two Trainers run on two ports
generating initiator/target traffic and two Analyzers run on two other ports cap‐
turing the traffic of those ports.
 Trainer and Jammer on same port: You can generate initiator/target traffic and
also inject errors on the traffic between initiator and target on the port.
Note: See “Multi‐Port Trainer Script Assignments to Links” on page 389 .
Display Options: Selects what information to display. See “Display Options” on page 439 .

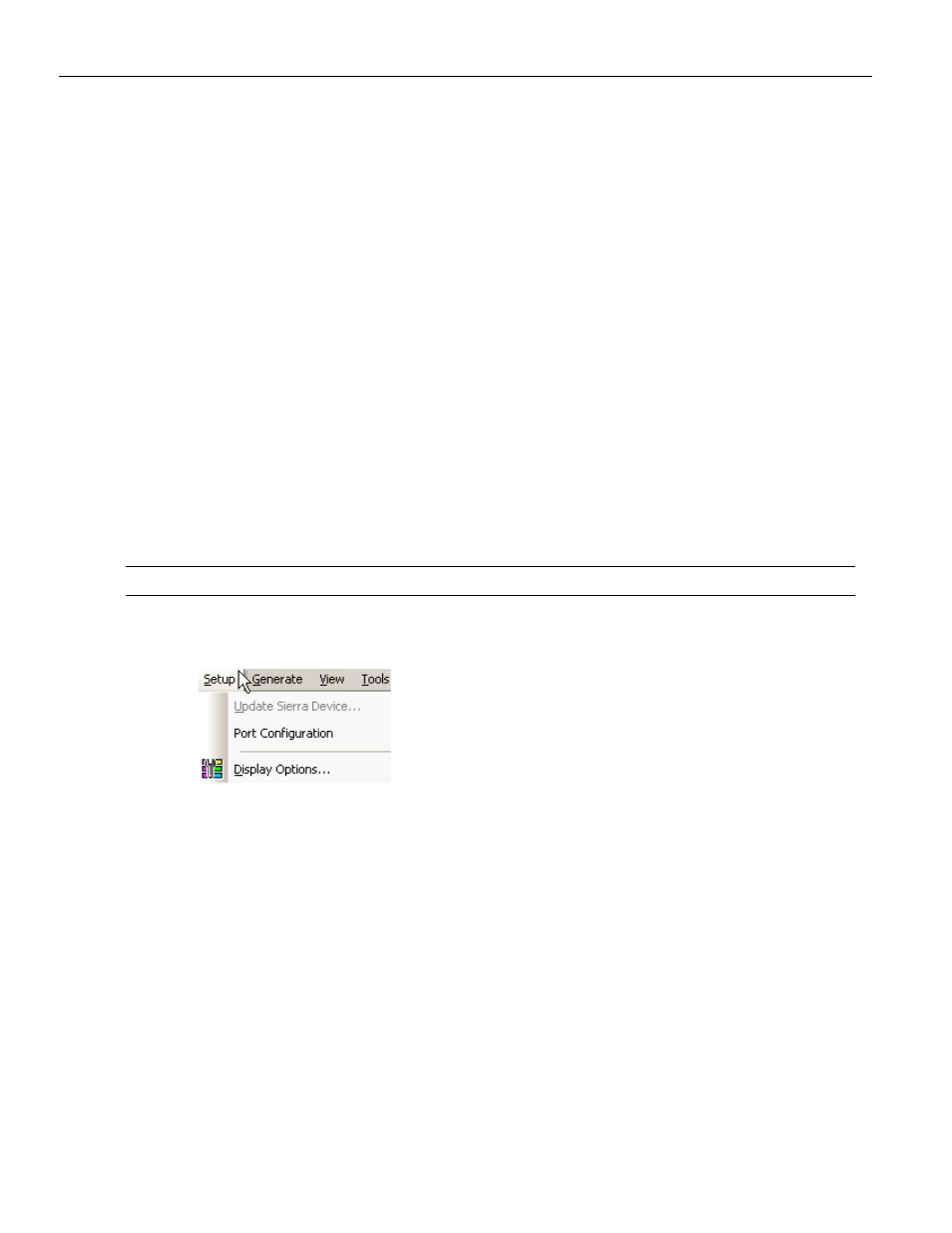

Figure 5.3: Trainer Setup Menu
