Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 205
Switching Views LeCroy Corporation
Primitives
To include Primitives, check the Primitive check box, click the down arrow on the
Primitive list box, and choose a Primitive.

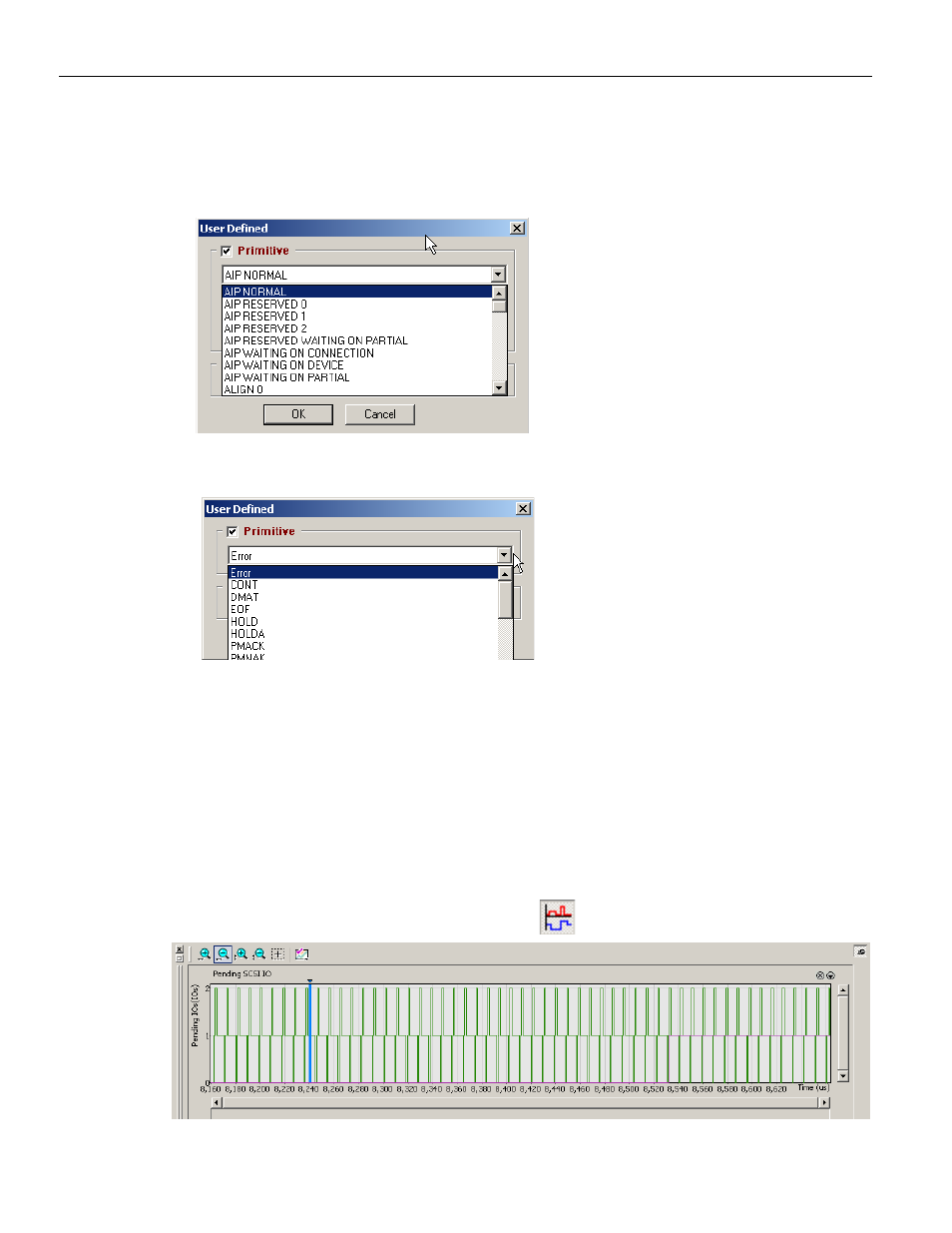

Figure 3.29: SAS: Choosing a Primitive
.
Figure 3.30: SATA: Choosing a Primitive
Check a Connection Type option radio button, if available, and click OK.
Zoom
You can Zoom from x1 to x256.
Bus Utilization View
The Bus Utilization View displays information on pending IO. To display the Bus Utilization
View of the current capture, 
click View > Bus Utilization View or click the button on the View Type toolbar.
Figure 3.31: SAS: Bus Utilization View for Pending SCSI IO
