Easy Mode (Pre‐Defined Setups)

Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

ATA Command Pattern (SATA only)

Double‐click ATA Command to open the ATA Command Pattern selection dialog.

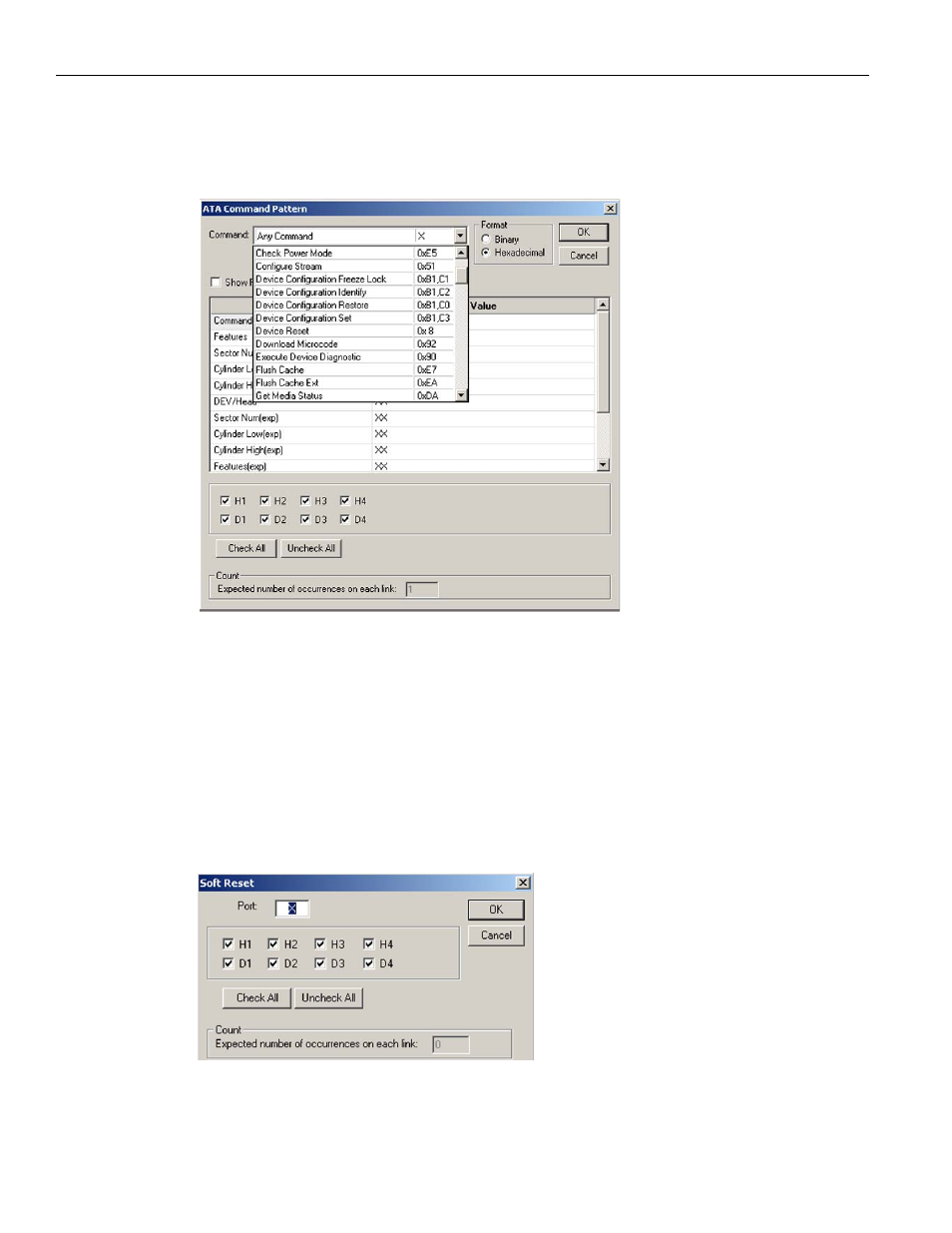

Figure 2.60: SATA: ATA Command Pattern Dialog

SAS vs. SATA: Not available in SAS.

Click the down arrow next to the Command list box, choose an ATA command, and click
OK.

Soft Reset (SATA only)

Double‐click Soft Reset to open the Soft Reset dialog.

Figure 2.61: SATA: Soft Reset Dialog

SAS vs. SATA: Not available in SAS.
