Data Report

286





Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

Data Report

When a captured sample is in the Sample Viewer, the Data Report button is on the
Viewer toolbar, and Data Report is in the Report menu.

The data report displays all the data sent from the host to the device and from the device
to the host. All PIO In =>In commands are grouped as a data packet until the occurrence
of a PIO Out =>Out command, creating a new data packet.

To display a Data Report, click the

Data Report button on the Viewer toolbar or

select Report > Data Report.

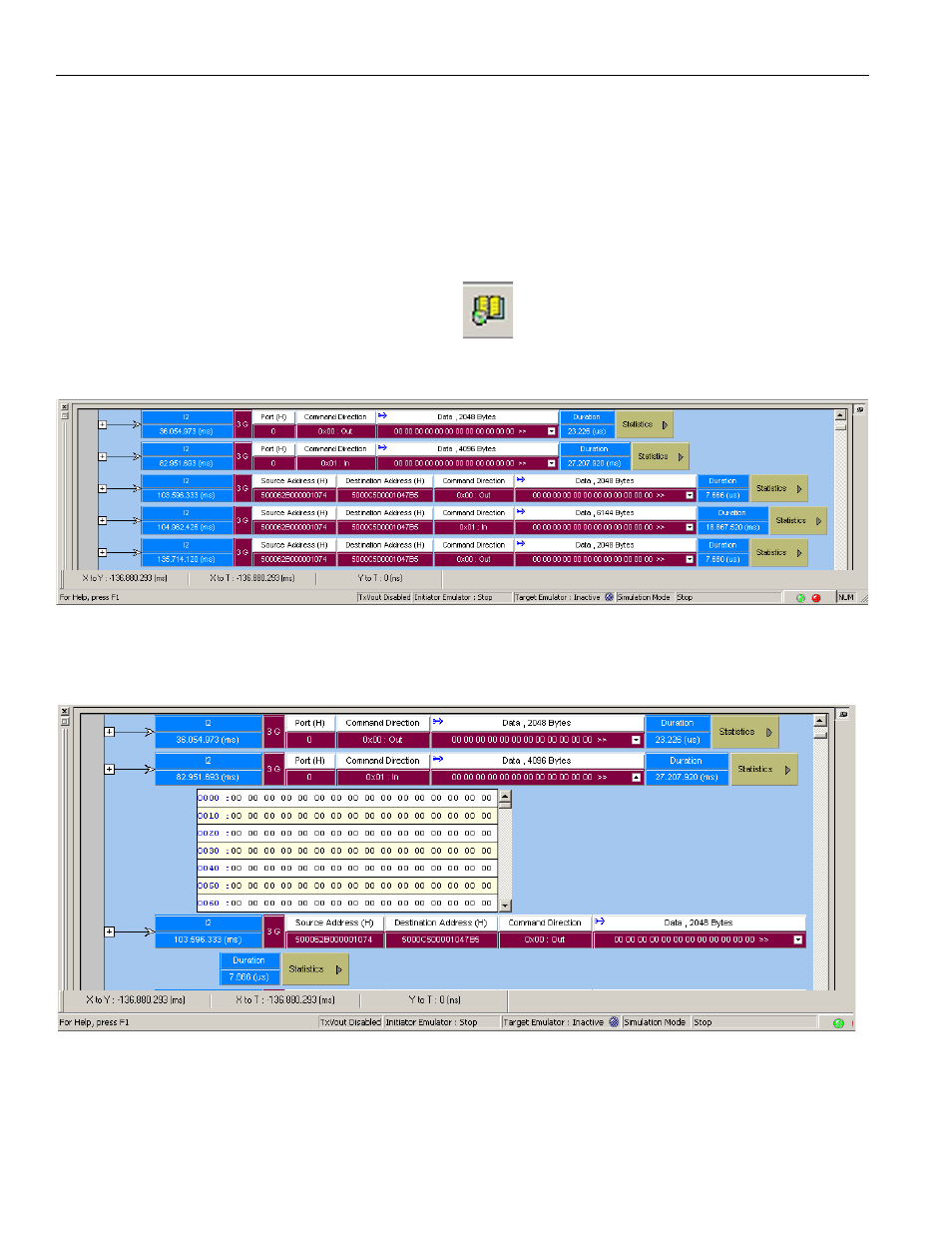

Figure 3.125: SAS: Data Report

Click the Down Arrow in a data field to display Data Report details.

Figure 3.126: SAS: Data Report Details
