Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 247
Display Configuration LeCroy Corporation
General Tab

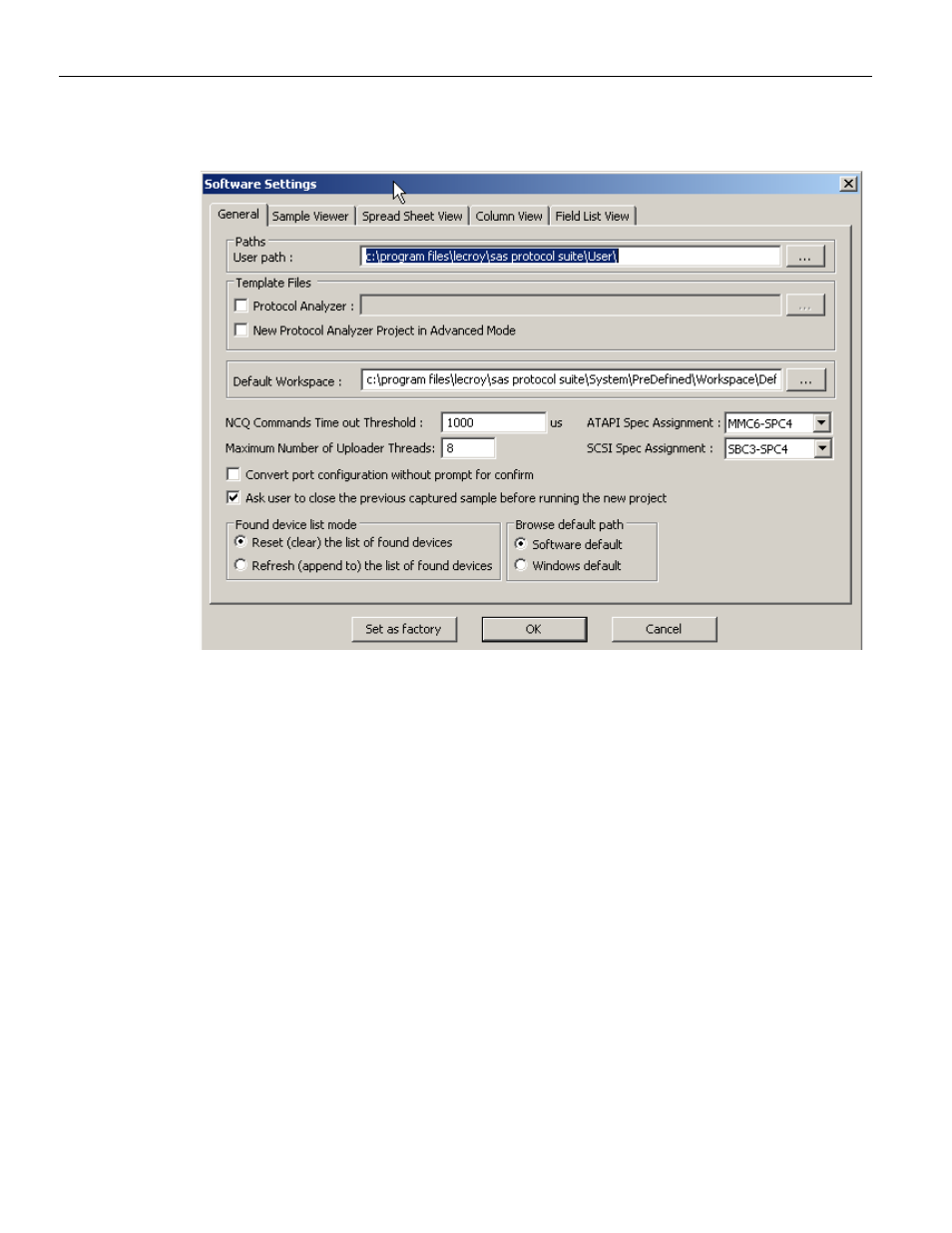

Figure 3.74: SAS: Software Settings Dialog General Tab
The SATA Software Settings dialog has the same options, except that it does not have
“SCSI spec assignment”.
Paths
User Path specifies the “User” folder path, used by the software after launching the Open
dialog.
Template Files
Protocol Analyzer: You can use a pre‐saved analyzer and/or analyzer/emulator project file
as a template. Whenever you make a new project file, the software uses the template to
initialize the project file.
New Protocol Analyzer Project in Advanced Mode: When you use the New menu item to
create a new project file, the software switches to Advanced mode automatically.
Other
Default Workspace specifies the default workspace file for opening a sample file. You can
save any viewer configuration as a workspace and then specify it as the default
workspace. The software always open a trace file based on the default workspace file.
